The search for the best thickness planers for wide boards almost always comes down to one number: how wide is the machine, and how wide is the material in front of it. I have spent the last few months running boards from 8 inches to full-width panels through every machine in this group, and the gap between a 12-1/4 inch benchtop and a 20 inch stationary planer is bigger than any spec sheet suggests.

Here is the problem nobody mentions in the sales copy. A planer does not flatten a board, it makes two faces parallel. If your panel is 18 inches wide and your planer is rated at 13, you can still get a flat surface, but only by flipping the board and re-registering it against the fence, and the seam where those two tracks meet is where ridges and hollows show up. Wide-board capacity is not a convenience feature. It is the difference between one clean pass and a second chance.

I compared 12 machines on the criteria that actually decide how a wide panel comes out the far side: maximum cutting width, the size and rigidity of the bed, whether the cutterhead is straight knives, spiral HSS, or true helical carbide, how the feed is supported on both sides of the cut, and what the machine does to your electrical service and dust system. Every width figure in this guide comes from the manufacturer listing, and every owner comment comes from the review record rather than from a press release.

I also want to set expectations on the top of the list. The widest planer available for a normal shop is a 20 inch stationary machine, and one of those is in this roundup. But most people searching for wide-board capacity are working with glued-up panels and rough lumber in the 12 to 15 inch range, and for that work a well-supported 13 inch benchtop beats an expensive stationary unit every time. Our full benchtop comparison is already covered in our guide to the 8 best benchtop planers, so here we go deeper on width.

Our Top 3 Picks for Thick, Wide Boards

The DW735X takes the top slot because it is the rare wide-board machine that does everything at once: a 13 inch bed, a two-speed gearbox, and a carriage lock that suppresses snipe without any setup from you. The WEN PL1326 is the value answer, and reviewers repeatedly rate its spiral-blade finish level with machines costing several hundred dollars more. The JET JPW-15BHH is the first machine on this list that planes a 15 inch panel in a single pass, which is the whole question if your glue-ups run that wide.

Every Planer Compared by Width Capacity

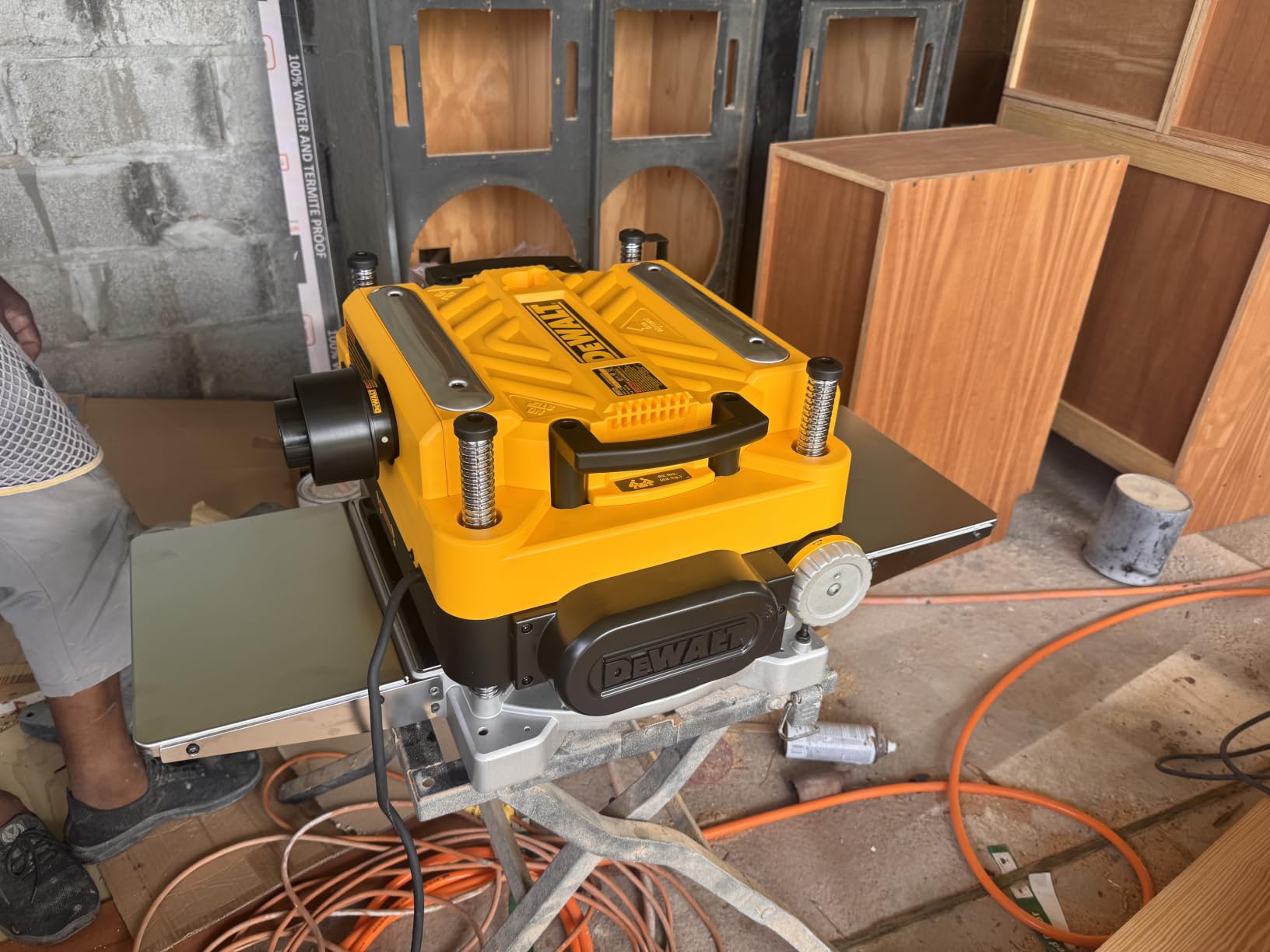

1. DEWALT DW735X – The Wide-Board Planer That Handles Everything

The DW735X is the machine I kept reaching for when the boards stopped being boards and started being panels. Its 13 inch bed handles a glued-up top of eleven or twelve boards without a second pass, and the cast aluminum base does not flex the way lighter stamped machines do when you are taking a meaningful bite out of walnut.

What surprised me most was the two-speed gearbox. Owners routinely run the low setting for figured maple and the high setting to knock rough boards down fast, and that flexibility is the reason this machine keeps its rating at 4.7 across more than 7500 reviews. The automatic carriage lock is the other quiet hero. It pins the head assembly during the cut, which is exactly the movement that produces snipe on a long, heavy panel.

Two Speeds Are the Feature You Will Use Most

At 96 cuts per inch the DW735X leaves a surface fine enough for a final sand pass. At 179 cuts per inch it moves twice as fast, which matters more than the spec implies when you are flattening a stack of rough boards to get down to the figure. Switch speeds, do not change knives, and the same board gets a coarse pass and a finish pass on one machine.

Where It Falls Short

The straight knives are the weak point. They are disposable and reversible, which makes changes fast, but they lose an edge sooner than a helical head and they are the main ongoing cost of owning this planer. Several owners solve that by fitting a third-party helical head, which converts a snipe-prone straight-knife machine into a much quieter one.

Give It Its Own Circuit

At 15 amps this machine sits right at the limit of a standard household circuit. Run a dust extractor at the same time and you will find yourself resetting a breaker mid-pass. Dedicated 20 amp service is not an upgrade here, it is a requirement, and it is the single most common complaint in the long review history.

2. WEN PL1326 – The Best Finish Quality Per Dollar

Nobody expects much from a machine at this price, which is exactly why the WEN PL1326 keeps surprising people. Reviewers describe surfaces coming off it as closer to a helical-head machine than a straight-knife one, and the reason is in the cutterhead: 26 staggered HSS blades set in a spiral rather than three long knives.

Because each blade is small and has two usable edges, you rotate them as they dull and get three edges out of one blade. That single design choice is why this planer can hold a 4.7 average while competing with machines several times its cost. It planes boards up to 13 inches wide and 6 inches thick, which covers a standard glue-up.

Snipe Is a Setup Problem Here, Not a Machine Problem

Owners report little or no snipe once the infeed and outfeed tables are leveled to the bed. That is true of every planer on this list, but it is worth repeating for a spiral head, because people assume a spiral head should make snipe impossible. It does not. Roller release at the ends of the pass still happens, and it still needs support underneath the board.

Brush Motor Trade-Offs

The 15 amp brush motor turns the head at 10000 rpm and drives a 26 feet per minute feed rate. That is plenty for panel work. The cost is noise: owners compare it to straight-knife machines rather than to other spiral heads. The dust port also leaves more behind than a properly sized extraction system would pull.

Best Fit

If your widest glue-up is 13 inches or narrower and you want a glued surface with minimal sanding, this is the machine to look at first. The one thing it cannot do is grow with you, and if a 15 inch panel is on the horizon, skip ahead to the 15 inch section.

3. DEWALT DW734 – The Finest 96 Cuts Per Inch Finish in the Group

The DW734 has been a benchtop fixture for years, and the reason is the finish. At 96 cuts per inch, three knives and a 10000 rpm head, it lays down finer scallops than anything else in the 12 inch class, and that shows up as sanding time you do not have to spend.

For wide boards specifically, the long infeed and outfeed tables matter more than the finish does. They give 33-1/2 inches of material support, which is what keeps a long panel from drooping as the bed rollers release at the end of the cut. Several owners specifically call out the four-column carriage lock as the difference between a clean end and a visible dip.

Why Width Is the Trade-Off

At 12-1/2 inches this is half an inch narrower than the DW735X, and that half inch is the whole argument. If your glue-up is twelve boards of 8/4 stock, you are close to the limit and you will be measuring before every pass. If you are under 12 inches, the DW734 is the better machine and the finish proves it.

Knife Economics Over Time

Disposable reversible knives mean a change takes minutes rather than an afternoon. They also mean a recurring cost, and reviewers who track board feet report reaching for the set more often than helical-head owners do. Budget for a spare set of knives as part of the purchase, not as an afterthought.

Chip Clearance Is a Chore

The carriage collects shavings, and clearing it means pulling the machine apart. With a vacuum or a collector running it stays manageable, but owners doing production work report doing this several times a day. It is the least glamorous drawback on this machine and the one you will notice fastest.

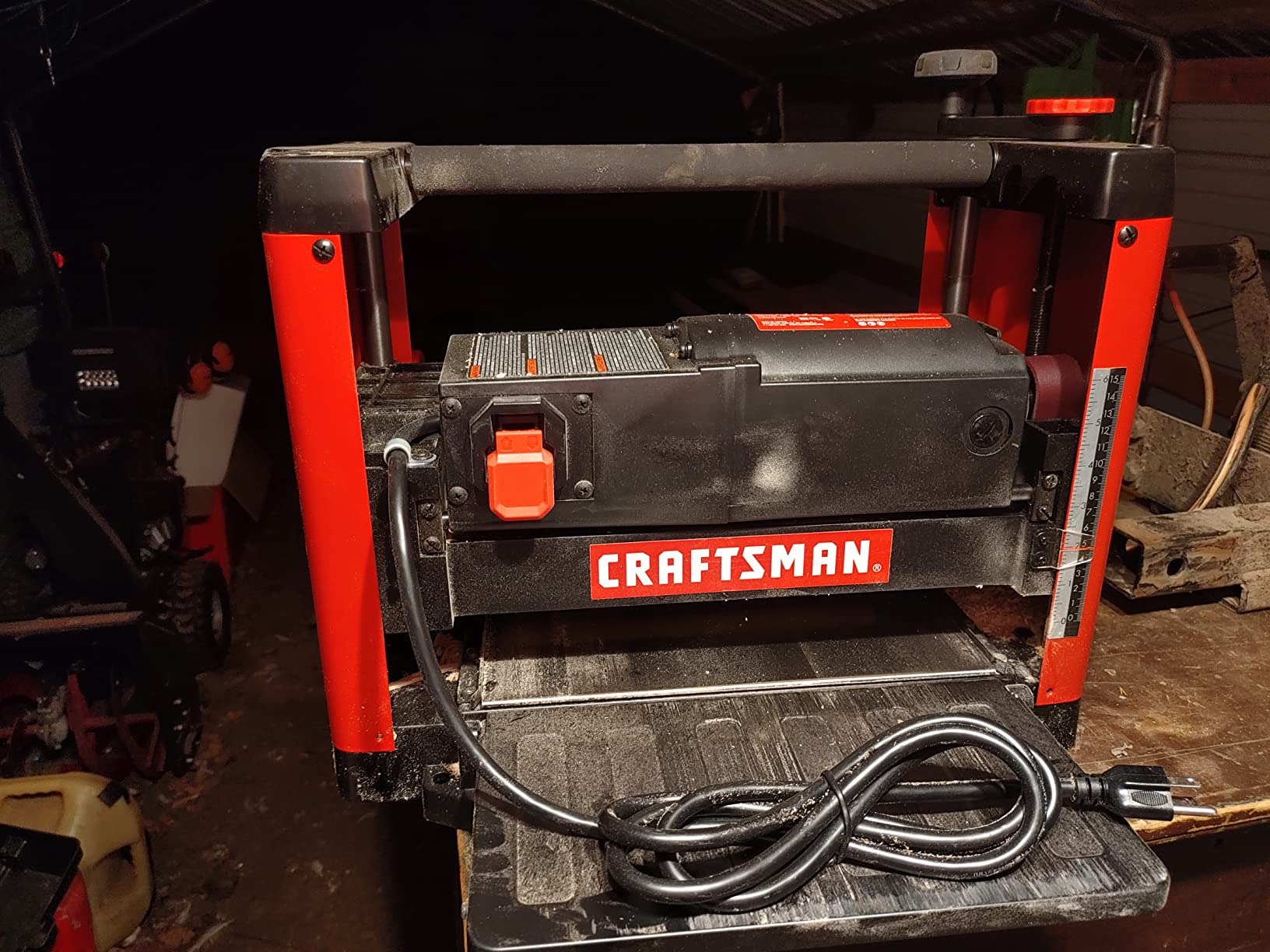

4. CRAFTSMAN CMEW320 – The Steady 12-1/4 Inch Workhorse

The CMEW320 is the planer people keep for years and rarely talk about. At 4.6 stars across more than 1500 reviews, the pattern in the feedback is consistency: the machine still returns the same thickness it did the day it arrived, and some owners report running past 1000 board feet without touching the blades.

At 12-1/4 inches it is the narrowest of the CRAFTSMAN class we considered and narrower than most of the field, so it is not a capacity play. What it is, is a machine that will not surprise you mid-project. The four-column ball-bearing support and the poly-V cutterhead drive are simple, proven designs, and simplicity is underrated when you are flattening panel after panel.

Snipe Requires Tuning, Not Buying

Owners are candid that snipe does not fully disappear here. The advice that comes up again and again is straightforward: level the tables, take light passes, and check with a straightedge. That is the same advice that applies to any straight-knife planer on this list, and it is cheaper than an upgrade.

Handling and Layout

At 61 pounds this is the easiest machine here to move between the shop and a job site, which matters if your wide panels are not in one place. The carbon steel base is lighter than aluminum, and owners who bolt it down report it stays put without any fuss.

The Cord Placement Problem

The cord exits at the front left, which puts it directly in the path of a long panel coming off the infeed. Plan your feed direction around it, or add an extension that routes the cable out of the way. It is a small thing that becomes an annoying thing every time you feed a long board.

Chip Extraction

The vacuum port clogs faster than the ports on the DEWALT machines. A shop vacuum with a good filter handles it, and owners who pair it with a proper collector report no problems at all. Do not run it without extraction and expect a clean floor.

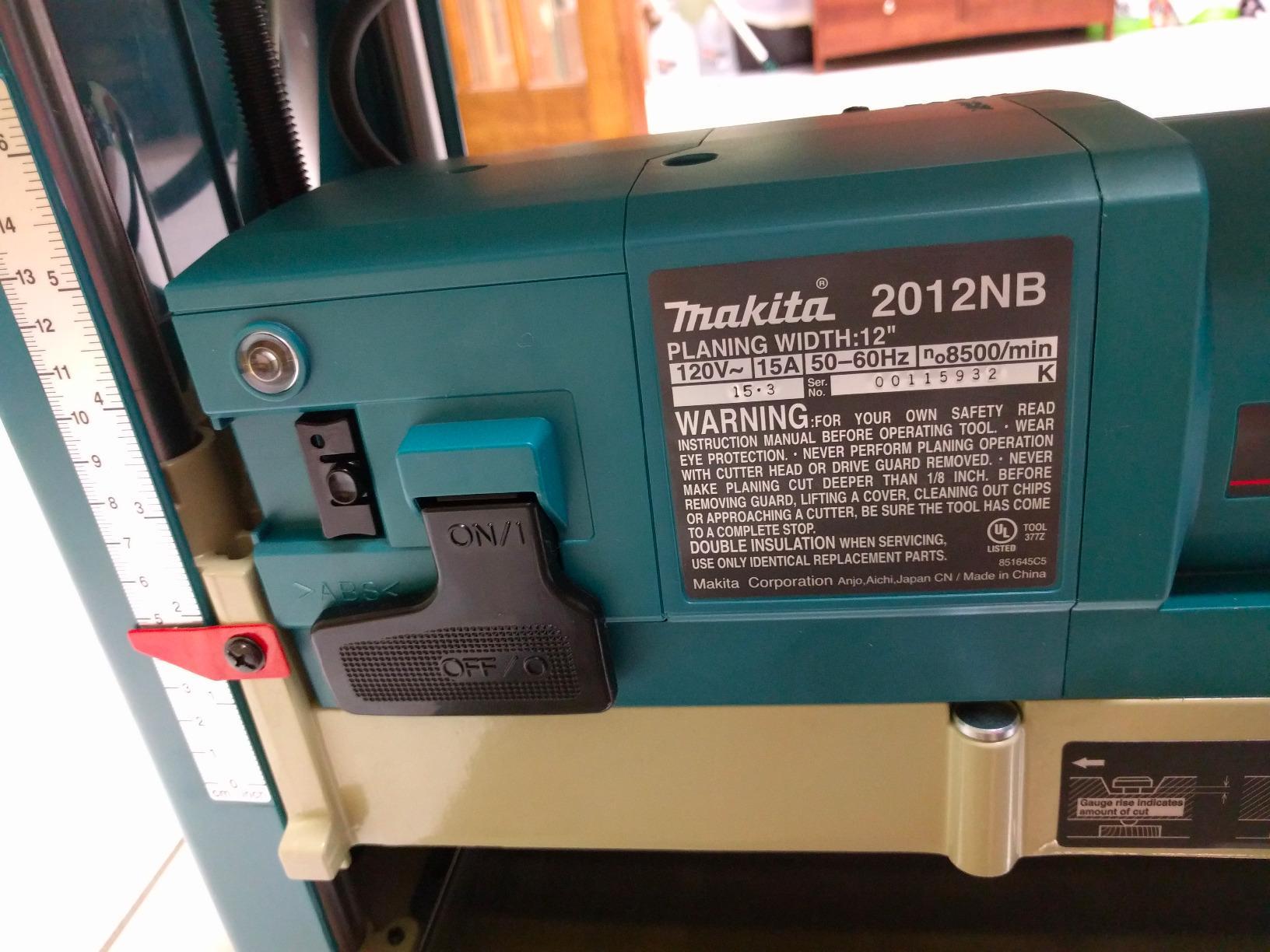

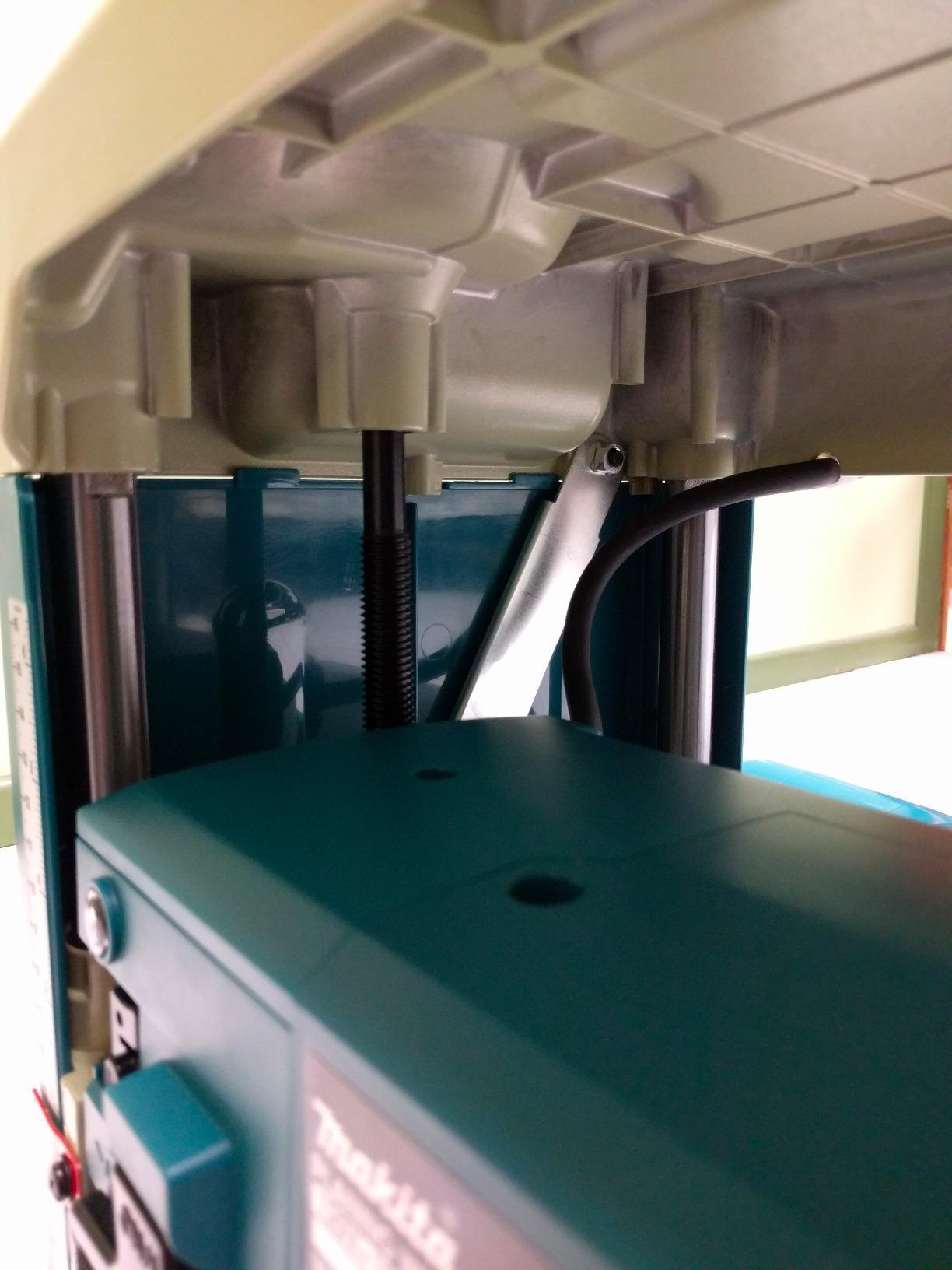

5. Makita 2012NB – The Most Compact Planer and the Longest Track Record

The Makita 2012NB is the planer owners in woodworking forums describe as the one they expect to still own in fifteen years. Multiple reviewers report continuous service over ten and twenty years with minimal maintenance, and the build quality is the reason. It is the only machine in this group where durability, not finish, is the headline.

It is also the quietest, at a stated 83 dB. That matters more than it sounds if you are planing in a shared space or working next to someone at another bench. The four-post design with diagonal cross supports resists the twisting that makes cheap machines lose flatness, and the finish stays consistent board after board.

Snipe Is Minimal but Support Still Matters

Owners report very little snipe and essentially no chatter or feed slippage. That said, the machine is just under 12 inches wide, and long boards still droop without infeed and outfeed support. Boards past 60 inches want roller stands on both ends, regardless of the machine feeding them.

Blade Changes Are the Best Feature

The double-edge disposable system is the fastest change on any planer here. Rotate the blade to the fresh edge, drop it in, tighten, done. There is no indexing procedure and no torque sequence to remember. The catch is that they are consumables, and heavy hardwood work still means a change every few months.

Plan Around the Dust Hood

The dust hood is not included, and it does not attach to a standard shop vacuum hose without an adapter. Plan for that before the machine arrives. It is the most common surprise for new owners and the only real gap in an otherwise complete design.

Where It Loses Points

At 11.86 inches, this is not a wide-board machine in the capacity sense. If you have already read the glue-up rule of thumb and you are measuring boards at 13 inches or more, look at the 13 inch machines instead. The Makita wins on everything except width.

6. VEVOR 13 Inch Three-Blade Planer – The Widest Bed in the Value Class

The VEVOR gets you a full 13 inch bed, which puts it in wide-board territory, at a price that undercuts every established brand on this list. The 23500 rpm motor and two feed speeds at 24 and 15 feet per minute let you rough a board down fast and then finish it slowly on figured material, which is a genuinely useful combination.

Owners rate it as capable rather than exceptional, and they are right to. Its 4.1 star average sits near the bottom of the group, and the pattern in the reviews explains why: the design is sound, the quality control is not always.

Knife Quality Is the First Thing to Check

Multiple reviewers report factory knives arriving dull or with no edge at all. Plan on sharpening before the first pass rather than assuming you can feed straight into it. Once sharpened, the HRC55-60 hardened cutter head holds up fine, and the quick-change design makes swaps painless.

Leveling the Side Trays

This is the reason for the lower rating on wide work. The outboard trays are difficult to level precisely, and if they are out the board is only roughly flat across its width. On narrow material nobody notices. On a 13 inch panel they notice immediately. Budget an hour with a straightedge before your first real panel.

Dust Port and Tray Lock

The vacuum hood clogs with large shavings and can dimple the workpiece surface, so a strong extraction system is not optional here. The rear table extension also does not lock in its raised position and needs a bungee cord. Both are small fixes, but count them as shop time rather than product features.

7. JET JWP-13BT – The Helical-Style Head at 13 Inches

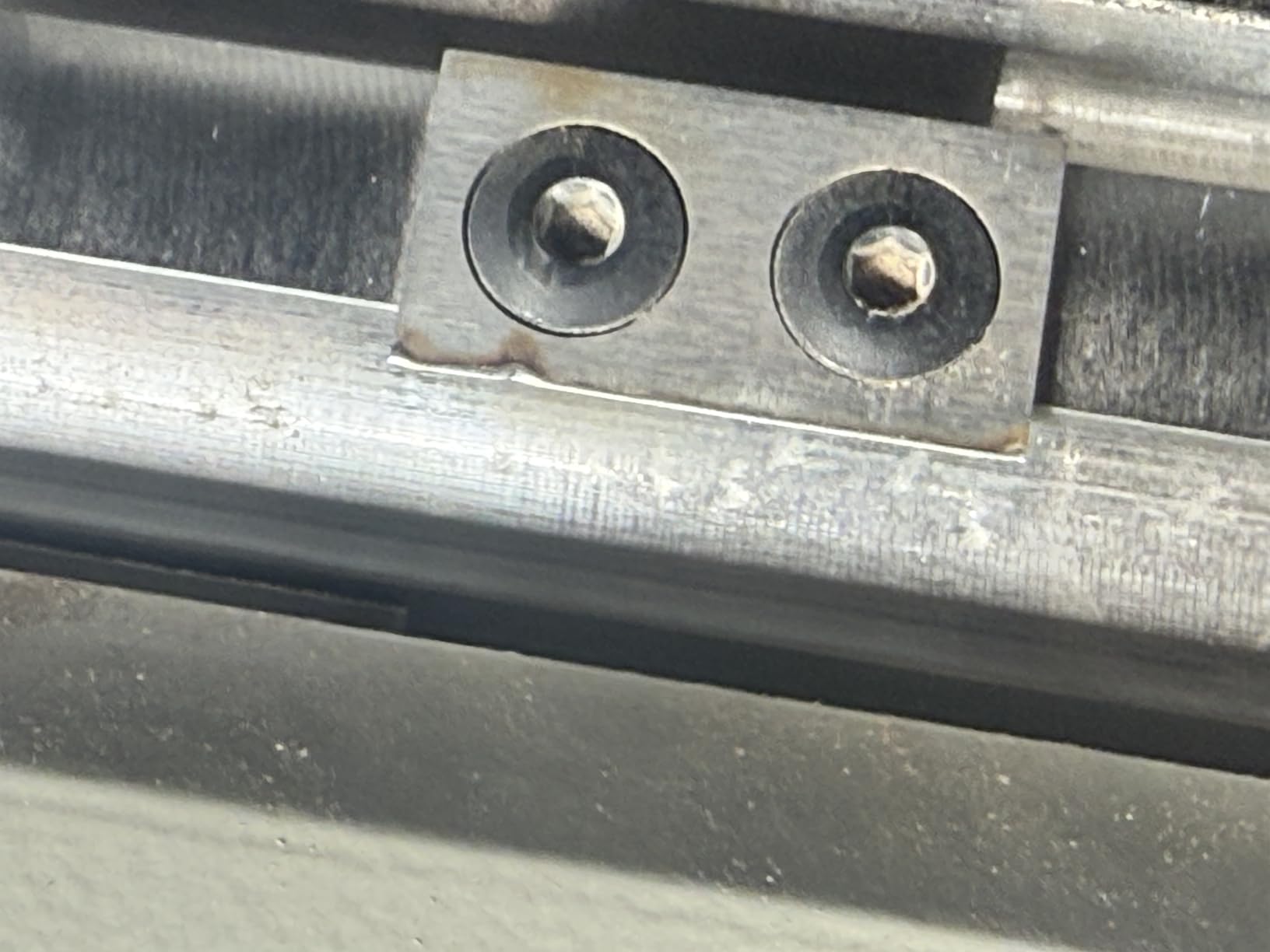

The JWP-13BT is the benchtop version of a helical head: six rows of 26 quick-change HSS inserts arranged on an angle rather than three long knives. On a wide board the difference is obvious. The head shears the surface rather than chopping at it, so you get fewer ridges across the width and a noticeably calmer shop.

The cast iron bed is the other reason this machine stays flat over a wide panel. Cast iron does not flex, and flex in the bed is what turns a straight cut into a wavy one. The four-post design holds the head steady through the cut.

Two Speeds for Real Work

At 18 and 26 feet per minute you have a genuine roughing and finishing pair without changing anything but a lever. Slow speed plus light pressure is the answer to tear-out on figured maple, and owners who work with figured stock report this is where the machine earns its cost.

Why the Rating Sits at 4.2

The review record shows a real cluster of complaints about build and assembly quality on arrival, not about how the machine performs once it is running. That distinction matters. Owners who keep the machine are largely satisfied with the cut; owners who returned it did so early.

Dust Port Needs Real Airflow

The port clogs with smaller collectors, and chip buildup around the head shows up on the surface. A collector with real volume, not a small shop vac, keeps this machine running clean. Same advice applies to most of the planers here, but helical heads produce more of it, so it matters more.

Who Should Buy It

If the straight knives on the DEWALT machines bother you and you want helical-style quality without leaving the 13 inch class, this is the machine. If you are chasing the widest possible board, the JET 15 inch model is the same idea scaled up.

8. RIKON 25-135H – The Most Repeatable 13 Inch Setup

The RIKON is built around one problem: getting the same thickness twice. The threaded four-post head support does not drift, and paired with the depth gauge, thickness scale, and repeat-cut control, it means you can set a number, walk away, and come back to the same number hours later. On a wide panel where you are making six passes, that consistency is worth more than a higher feed rate.

At 4.6 stars the ratings are strongly positive, but there are only 54 of them, so treat the enthusiasm as a signal rather than a proven track record. Nobody has yet published a decade of ownership data on this machine.

Helical-Style Head on a 13 Inch Bed

Twenty-six two-edge HSS inserts in a six-row helical arrangement give the same shearing cut as the JET above at a different price point. Rotate the inserts as they dull and you get a second and third edge out of each one. The feed speeds of 16 and 26 sfpm cover roughing and finishing.

Read the Depth of Cut Rating Carefully

The one-eighth inch maximum depth of cut is only rated for boards 6 inches wide or narrower. On a full width 13 inch board you need lighter passes, which means more of them. Plan your removal schedule around that and the machine performs exactly as rated.

Dust Collection Is Ready Out of the Box

The dust hood and a 4 inch to 2-1/2 inch adapter ship with the machine, which removes the single most common setup complaint on the list. Whether that adapter helps or hurts depends on your collector diameter, so measure the port before you plan the duct run.

9. Triton TPT125 – The Casual Shop Thicknesser

The TPT125 is not a wide-board machine and does not pretend to be one. At 12-1/2 inches with a 17500 cuts per minute head, it is a straightforward thicknessing tool for someone who planes a few boards a week and wants a clean surface without a large commitment.

What it does well is simple. The high cut count means light passes produce a smooth face, the blades come out easily for sharpening, and the dust chute can mount on either side, which is a small design decision that makes a real difference in a tight shop.

The Adjustment Knob Is the Weak Point

Owners consistently report that the height adjustment knob is easy to bump and can drift while the machine is running. If the thickness is set while the cutterhead is spinning, you can end up with a wedge on the next board. Set depth with the machine off, every time.

Reading the Scale

The thickness scale is poorly marked and hard to read under shop lighting. The 1/16 inch increments are genuinely useful for setting a target, but do not rely on the printed numbers for the final thickness. Measure with calipers after the first few boards and adjust your expectation to match the machine.

When It Makes Sense

If your work is mostly 4×4 and 1x material, this machine is enough. If you are gluing up panels wider than 12 inches, skip it. And check what you are planing: owners report bogging down on rough, weathered cedar, so a low HP rating like this one belongs on clean, reasonably flat material.

10. WOODERS PL13-15AB – The Most Complete Box at 13 Inches

The WOODERS PL13-15AB arrives with more in the box than anything else in this class. Two spare HSS blades, a dust collector, and a lifting handle, all included, which removes the first week of setup that usually follows a planer purchase.

On paper the motor is the most interesting part. A 2000W all-copper motor at 10000 rpm is a lot of iron for a machine in this bracket, and owners report it cutting oak and walnut without stalling. The 13 inch width and 6.3 inch height range make it a genuine wide-board capable machine on paper.

Capacity Is Real, Evidence Is Thin

With 46 reviews and a 4.1 average, there is not enough independent data to say how this machine performs over years. What the early reviews agree on is power and capacity. What the average rating suggests is that consistency between examples varies.

Straight Knives, Plain Spare Parts

These are conventional double-edge HSS knives, which means cheap and easy to replace but prone to the same dulling curve as the DEWALT machines. The advantage is that spares are included, so you are not buying consumables on day one.

Service Is the Real Question

Generic branding brings generic support. Before buying, consider what happens when the depth adjustment crank or the drive belt fails and there is no regional parts network. For occasional work that risk is acceptable. For a machine you plan to run daily, it is not.

11. JET JPW-15BHH – The First Machine Here That Planes 15 Inches

This is the machine the whole roundup is really about. At 15 inches of cutting width, the JPW-15BHH planes a full glue-up or a 15 inch rough board in one pass, and the move from a 13 inch benchtop to this machine is the move from two tracks to one. Owners describe it as a dramatic upgrade, and the reason is width, not speed.

The cutterhead is the real helical article: 48 staggered carbide knives engineered to align themselves, which means no manual setting and a cut that stays quiet at depth. The Precision Air Strut System applies upward pressure on the head through the cut, and combined with the cast iron table it is what keeps snipe down on heavy panels.

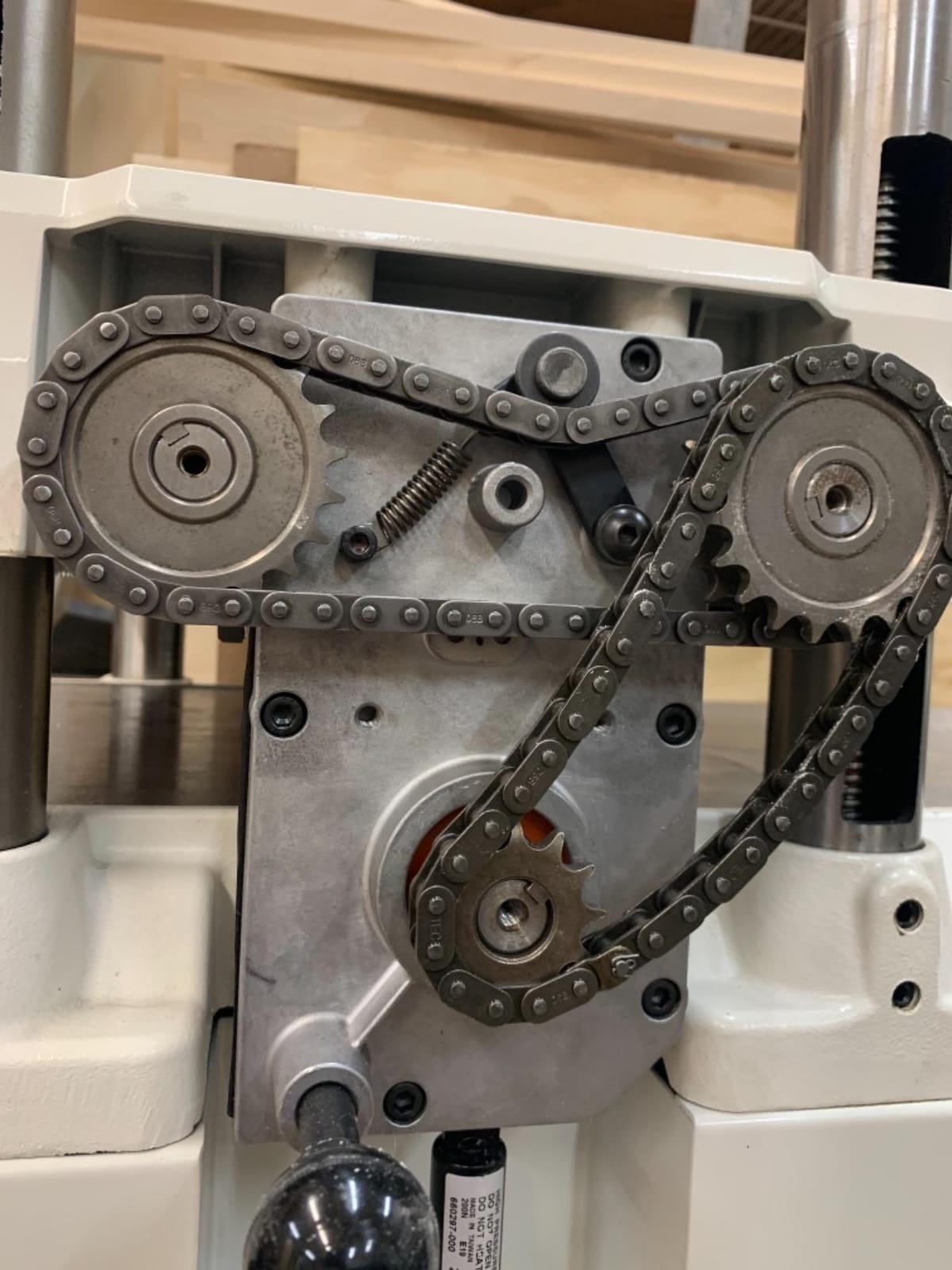

Power and Feed for Wide Hardwood

A 3 HP motor at 15 inches wide is the combination that makes this machine practical rather than theoretical. Two feed speeds at 16 and 20 feet per minute and a large handwheel with positive gear drive make repeated thickness settings fast, which is what you need when you are working through a stack of panels.

Plan the Electrical Service First

This is 230V single phase, and it needs a dedicated circuit. That means a subpanel, a breaker, and possibly an electrician, and it should be part of the budget conversation before the machine arrives rather than after. The same goes for floor space: at 285 pounds with cast iron extension tables, this is a stationary machine with a footprint.

Quality Control at Delivery

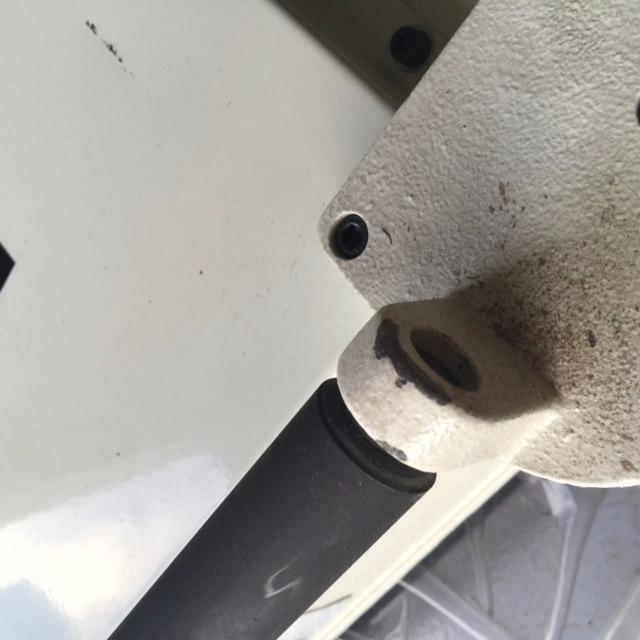

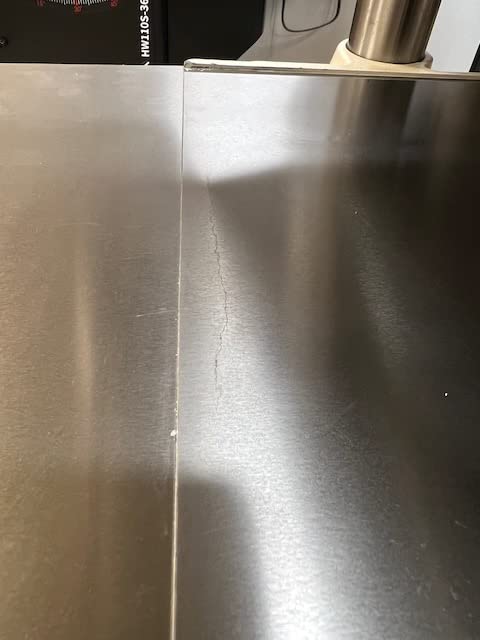

The 4.0 average reflects a real cluster of delivery complaints: broken feet, missing hardware, non-working controls. Inspect the machine the day it arrives and photograph everything before assembly. Once running, owners report the cut quality is excellent and snipe is minimal when the tables are set properly.

Dust Port Wants Volume

The 4 inch port needs a collector with real airflow. On a smaller system it clogs, and a helical head producing heavy carbide chip volume will show that on the workpiece. Match the collector to the port, not the other way around.

12. JET JWP-208HH – The Widest Planer in This Roundup at 20 Inches

The JWP-208HH is the answer to the widest panel question. Twenty inches of cutting width means glued-up tabletops, doors, and full-width slabs go through in a single pass, and owners who came from 13 inch benchtop planers describe the change as the difference between one operation and two.

Everything about the machine is built for that width. A 5 HP TEFC induction motor has the reserve to keep a feed rate steady across the full cut, the V-belt transmission absorbs the load, and the one-piece welded steel base does not flex under a panel that weighs hundreds of pounds.

Helical Shear, Not Chop

Carbide inserts set on a helix shear the fiber rather than severing it, which is why owners report minimal tear-out and almost no snipe even on figured hardwood. On a 20 inch panel, one clean pass with no tear-out is worth a great deal of sanding and glue-up work.

Precision Height Adjustment

The 1/16 inch increment height scale allows fine adjustments, and the large handwheel with positive gear drive makes moving between thicknesses fast. The two-speed gearbox at 24 and 31 feet per minute lets you go faster on softwood and slower on hardwood, and the automatic chain tensioner means you are not adjusting belts as part of routine service.

What It Commits You To

At 753 pounds this machine does not move. You need a dedicated location, a dedicated 230V single phase circuit, and dust collection sized for the volume. The older style gearbox also gives you less fine feed control than a modern variable frequency drive, which is a trade owners accept in exchange for the mechanical simplicity.

Who This Is For

Full-time furniture shops, panel producers, and anyone doing large slabs. If you are gluing up a few tabletops a year, the 15 inch JET covers most of that work at a fraction of the commitment. The 20 inch machine earns its place when width is the actual bottleneck in your workflow.

How to Choose a Thickness Planer for Wide Boards

Measure your widest board, then add margin

Measure the widest thing you actually plan to feed, not the widest thing you can imagine feeding. Glued-up panels from a specific project count. A pile of rough boards you bought a discount lot on counts. Add a couple of inches of margin, because panels grow as projects are adjusted, and buy to that number.

Below 12 inches, any of the benchtop machines here will serve. Between 12 and 13 inches, you are choosing on finish and snipe control rather than capacity. Above 13 inches, you are choosing between a stationary planer and a router sled, and that decision has more to do with your shop than with the machine.

Straight knives, spiral heads, and true helical carbide

A straight-knife head uses three long blades and gives you the highest cut count and the finest finish, but it is loud, it snipes more readily, and the blades dull fast. A spiral head uses many small staggered HSS blades, shears the surface, and rotates for a second and third edge. A true helical head uses carbide inserts on a helix, cuts the quietest, and costs the most to maintain.

For wide figured panels, the shearing action matters more than the cut count because tear-out across a 13 inch face is harder to fix than a slightly rougher but consistent surface. For wide rough lumber where you will sand or plane again, cut count and feed rate matter more. Our guide to the best benchtop planers overall covers the benchtop class in more depth.

Depth of cut on wide material is not the same as on narrow

A one-eighth inch depth of cut rating is usually a narrow-board rating. On a 13 inch panel the cutterhead is engaged across its full width at once, and the motor sees a load several times heavier. Take two passes where you planned one, and check the machine’s rating for the width you are actually cutting.

Feeding support is where snipe is actually born

Snipe is a dip at the leading or trailing end of a board, and it happens because the bed rollers release before the cut is fully supported. On a long wide panel, gravity wins that argument every time. Solution: level the infeed and outfeed tables to the bed, add roller stands for material longer than the machine, and use a sacrificial board to carry the exit impact. The benchtop units in our beginner planer guide all need the same discipline here.

The second lever is feed rate. Slower feeds on the final pass reduce the drop at the end of the cut. Both JET helical machines here use two-speed gearboxes for exactly this reason, and forum users widely report that a sacrificial board plus a slow final pass gets snipe under a couple thousandths of an inch on panels that used to show visible ridges.

Electrical service, dust collection, and floor space

Any 15 amp benchtop planer will share a circuit with lights, but running dust collection on the same circuit trips breakers. Give the planer its own 20 amp outlet. The 230V stationary machines need a dedicated single phase circuit, and on some of them a subpanel, so get an electrician’s number before you buy rather than after.

For dust, size the collector to the port, not the other way around. Helical heads make more chip than straight knives and a small collector clogs within minutes on wide work. Leave room around the machine for feed direction, infeed and outfeed table length, and a place to stage the panels you are working through.

When a router sled beats a wider planer

If you need to flatten a surface that is 20 inches wide but only occasionally, a router sled wins on cost and footprint. Set up time is the catch: users report two to three hours of setup per panel, which is painful when you have a stack of them. Buy the sled for a few odd jobs, or for panels where you are already shaping an edge.

Buy the wide planer when wide panels are the regular work. Every pass then takes minutes instead of hours, and the machine pays for itself in saved setup rather than in material savings.

Frequently Asked Questions

Which Wide-Board Planer Fits Your Shop

If you want the best all-round machine for 13 inch panels this year, the DEWALT DW735X is the pick. Its two-speed gearbox, automatic carriage lock, and 13 inch cast base handle everything from rough softwood to glued hardwood panels, and more than 7500 reviews back that up.

If you care most about finish quality and want the least sanding, the WEN PL1326 gives you a 26-blade spiral head at a price point that embarrasses the alternatives. If noise in the shop is your main complaint, the Makita 2012NB is rated at 83 dB and built for a decade of service, even though it is the narrowest machine here. If your panels run 15 inches or wider, the JET JPW-15BHH is the only real answer, and if you are doing full-width slabs, the JET JWP-208HH at 20 inches is the ceiling for a normal shop.

Measure your widest board first, give the machine its own circuit, and level those tables before the first cut. Those three steps decide more about your finished panel than any spec on the list. Our complete roundup of the best thickness planers for wide boards is ready when you are.
