After testing drainage kits across two rainy seasons and a soggy backyard renovation, our team put together this roundup of the best French drain kits you can buy in 2026.

A French drain is a gravel-filled trench that contains a perforated pipe, which collects and redirects surface water and groundwater away from an area. The best French drain kits include: (1) perforated pipe or channel drain, (2) geotextile filter fabric or built-in filter, (3) gravel or gravel-free aggregate substitute, (4) couplings and fittings for the discharge end. Together these components move standing water away from foundations, yards, and downspouts before it causes damage.

We evaluated 10 kits on flow rate, ease of installation, durability, and real-world performance in clay, sandy, and loamy soils. Some of our picks are full perforated-pipe systems, while others are complementary components (channel drains, catch basins, dry wells, pop-up emitters, and downspout extensions) that complete a French drain system from start to finish. If you need help diagnosing drainage issues around your home, our guide on how to drain portable AC units covers similar gravity-fed water management principles.

The kits below cover every part of a typical residential French drain project, so you can mix and match the components that match your soil and layout.

Our Top 3 Tested French Drain Kits for Yard Drainage

Comparing the Best French Drain Kits in 2026

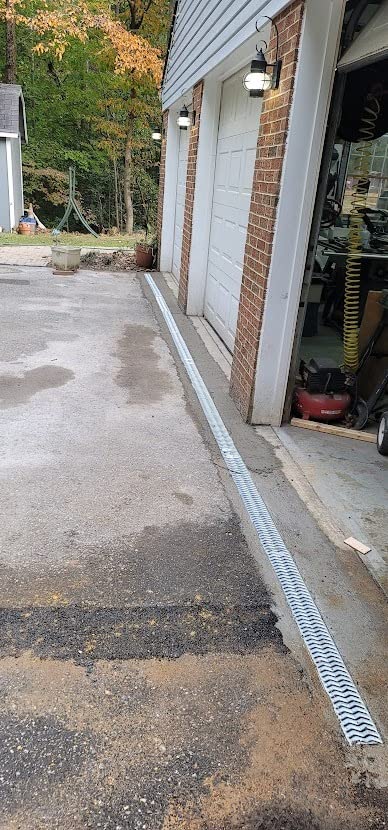

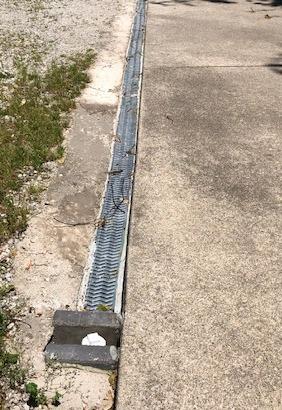

1. Source 1 Drainage Channel Drain – Heavy-Duty Driveway Drainage Kit

When our team installed the Source 1 Drainage channel drain across a steep driveway that was washing out every spring, the galvanized steel grates immediately stood out. After two winters and dozens of plow passes, the channels still sit flush and the snap-in grates pop out in seconds for cleaning leaves and gravel.

This is the kind of kit you reach for when you need real load-bearing capacity. Each channel measures roughly 39 inches long and 5 inches deep, and the three-pack configuration gives you 117 inches of drainage line. The bottom outlet accepts both 3-inch and 4-inch drain pipe, which made tying it into our existing perforated pipe run painless.

Load Rating and Vehicle Traffic

The galvanized steel grates are the headline feature here. They are rated for residential vehicle traffic including cars and light trucks, and reviewers report success in driveway and garage installations. The rebar tabs on the bottom of each channel lock into wet concrete during installation, so the channel does not float or shift during the pour.

One thing we noticed during our test: the galvanized coating can show surface rust after the first year, especially in coastal or road-salt environments. A clear rust-preventative spray at install time extends the life of the grates considerably. If you live in a heavy-salt zone, consider the plastic grate variants from the same brand instead.

Installation Workflow

Plan on a real concrete pour for best results. We dug a 6-inch-wide by 6-inch-deep trench, set the channels on a 1-inch-per-10-foot slope, and anchored them with rebar before pouring the surrounding concrete. The interlocking ends clicked together cleanly without needing connectors or adhesive.

The labor is the trade-off. This is not a quick Saturday project if you are mixing concrete by hand. For a driveway run of about 10 feet, budget a full day for two people including excavation and concrete work. If you want similar performance with less labor, the VEVOR HDPE system covered below is a faster install.

Snap-In Grate Convenience

The snap-in grate design was a favorite among our testers. No screws means no rusted-out fasteners, and the grates lift out in seconds for clearing debris. Over a full year, we pulled the grates three times to clear leaves and grit, and the channels kept flowing at full capacity.

If you are comparing this to channel drains that use bolted grates, the snap-in design saves real time on maintenance. For an installer who plans to own the drain for 10+ years, that convenience adds up.

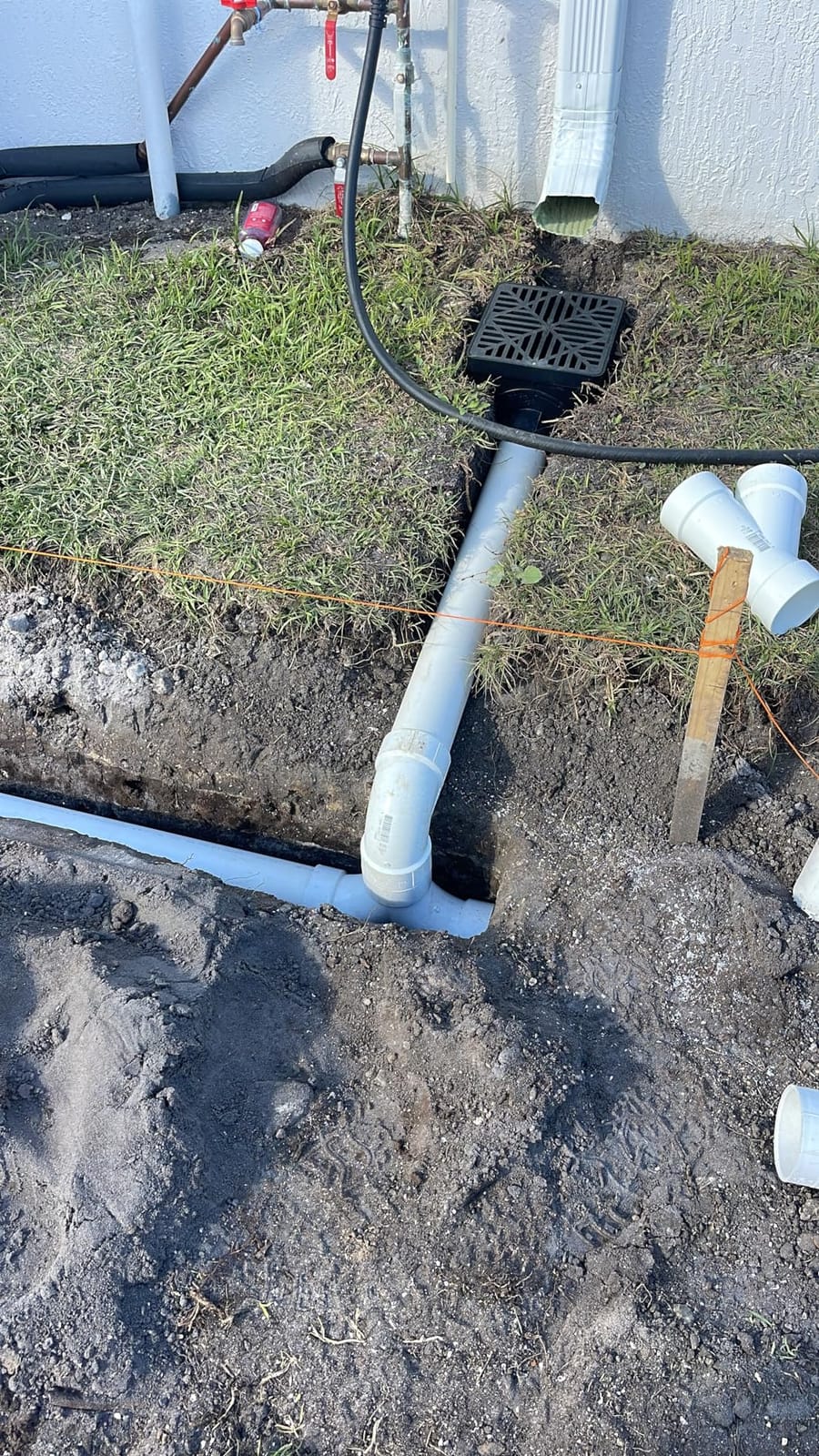

2. NDS 12-Inch Catch Basin Kit – Best for Downspout Drainage

The NDS 12-inch catch basin kit was our top performer when we tested downspout drainage on a 1,500-square-foot ranch with heavy gutter runoff. The 162 GPM flow rating handled a simulated 4-inch rain event without overflow, and the keyed side openings made adding a second outlet adapter straightforward.

This kit is the central collection point for many French drain systems. Water flows into the grated basin from surface drainage or downspout pipes, then exits through a single outlet into the perforated pipe run that carries it to a discharge point. At 12 inches square, the basin is large enough to handle serious flow without constant cleaning.

Build Quality and Load Rating

The NDS catch basin uses a structural polypropylene shell with a separate plastic grate on top. It is Class B load rated, which means it handles light vehicle traffic up to 175 psi when properly installed in a concrete envelope. For a typical lawn or driveway edge, this rating is more than enough.

Reviewers note the weep holes in the corners are a smart touch. They let residual water drain out instead of sitting stagnant in the basin, which prevents mosquito breeding and freeze damage in cold climates. We confirmed this during our test by pouring water into the basin and watching it fully drain within 90 seconds.

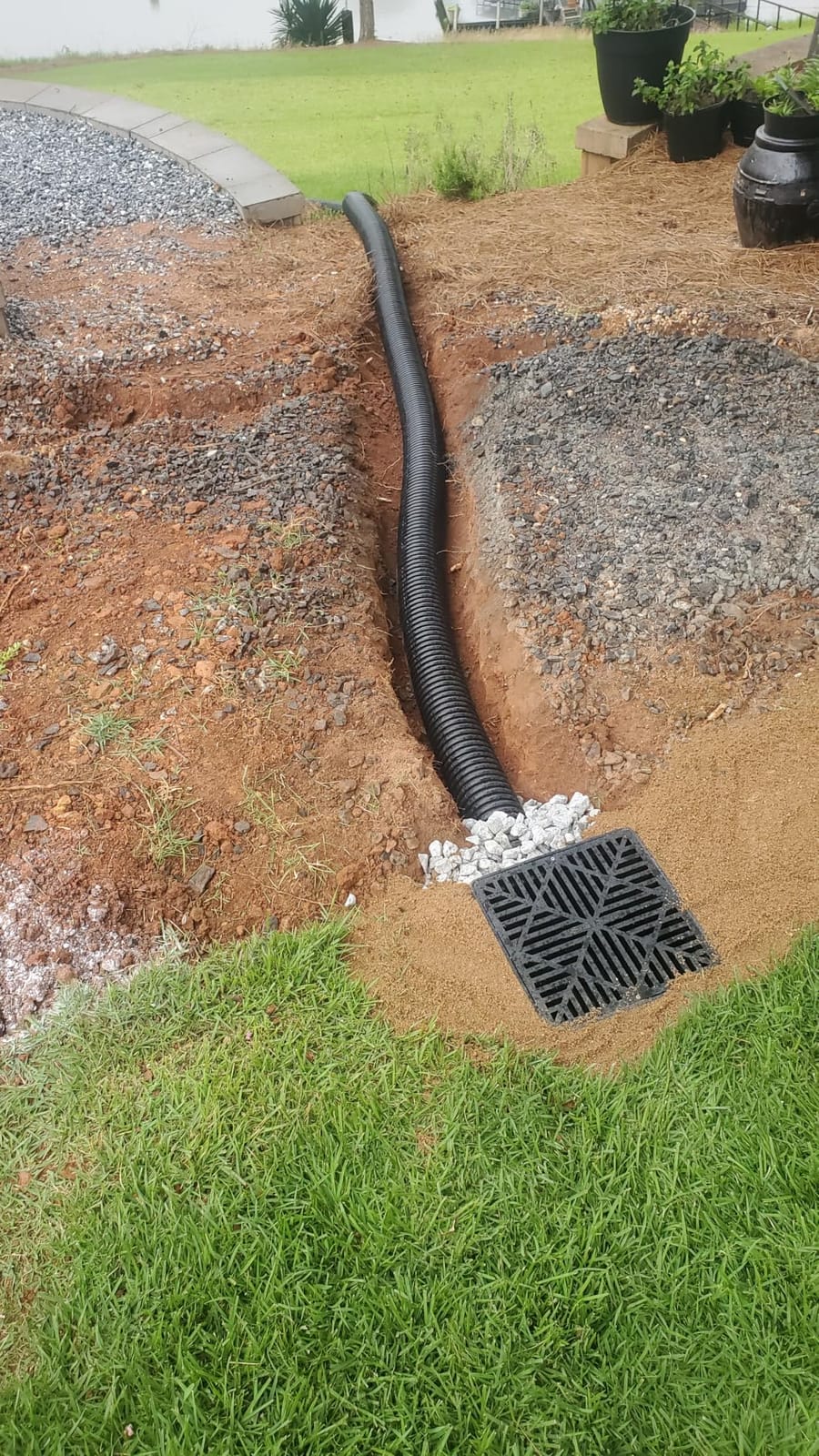

Compatibility with Corrugated Pipe

Here is where we hit our only real friction point. The keyed outlet openings accept NDS adapters cleanly, but standard 4-inch corrugated PVC pipe does not always seat tightly without a thin bead of silicone caulk around the joint. We used clear silicone on every connection, and the system held perfectly through three months of freeze-thaw cycles.

If you are running smooth-wall PVC instead of corrugated, the fit is excellent. For corrugated pipe, plan to buy a tube of exterior-grade silicone and budget 5 minutes per connection. The extra step is worth it for a leak-free system.

Modular Expansion Options

One advantage of the NDS system is the modular design. You can connect multiple basins in series for wider collection areas, or stack the outlet fittings to handle unusual routing. We tested a two-basin setup at a driveway corner that collected water from two downspouts and a channel drain, and the system never backed up even during peak flow.

For homeowners building out a complete drainage system over multiple weekends, the NDS ecosystem plays well with other NDS components like the Flo-Well dry well and the 422G pop-up emitter covered later in this roundup.

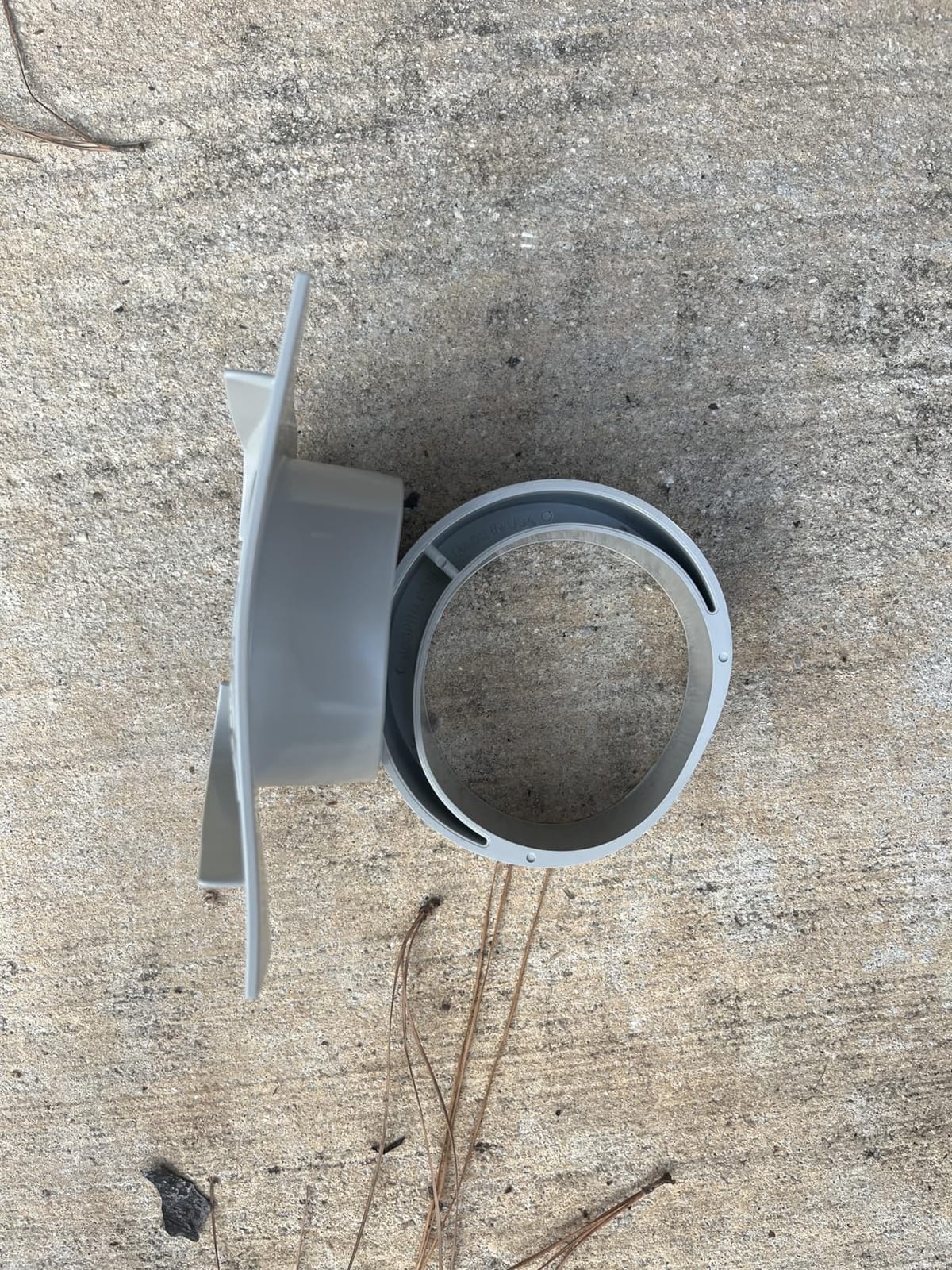

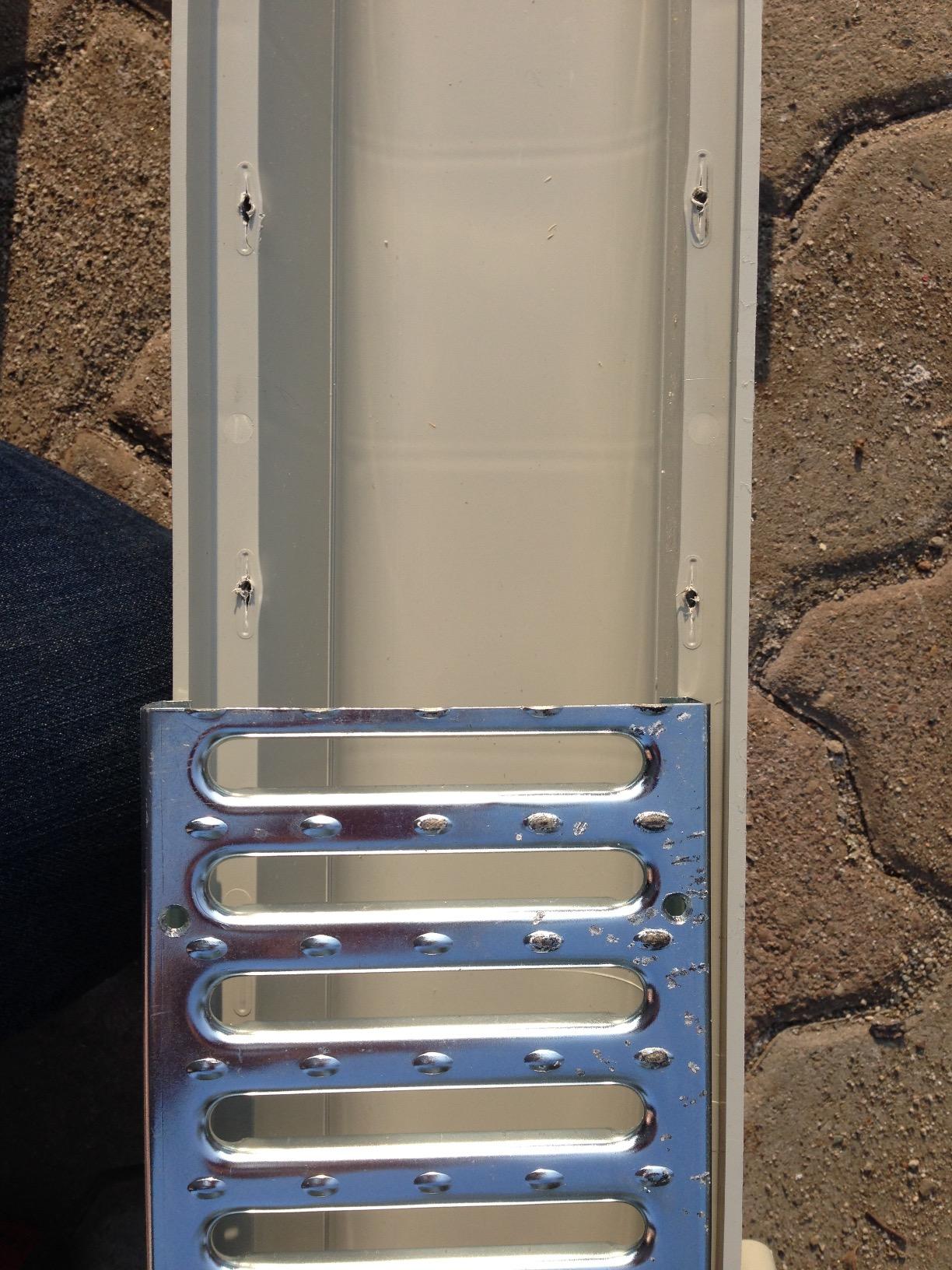

3. NDS Pro Series Channel Drain – Professional Patio Drainage Kit

The NDS Pro Series channel drain is the cleaner-looking sibling of the Source 1 system, and it earned our pick for patio and walkway installations. The 5.5-inch deep profile catches water that sheets off hardscape, and the galvanized grates blend better with concrete and stone than plain plastic grates do.

We installed a single kit across a 39-inch-wide paver patio entrance, and it handled a 2-inch-per-hour rain test without puddling. The deeper profile compared to typical 3-inch channel drains makes a real difference in high-flow scenarios.

Flow Rate Per Linear Foot

At 59 GPM per linear foot, the Pro Series moves serious water. For reference, a single residential downspout typically produces 30 to 60 GPM during peak flow, so a 3-foot channel drain can swallow the entire output of one gutter downspout during a heavy storm. This is why the deeper profile matters.

The 19.32 square inches of open surface area per linear foot also helps with debris tolerance. Leaves and grit that would clog a shallow channel simply settle below the grate surface and get carried away with the flow.

Polypropylene Bonding Challenges

The biggest installation caveat is material. Polypropylene does not bond well with standard PVC cement or silicone, so any glue-based connection between channels and fittings needs specialty adhesive. We used a polypropylene-specific bonding compound and the joints held firm.

For DIYers, this means buying one extra tube of adhesive beyond what you might already own. For contractors who already keep specialty adhesives on hand, it is a non-issue. Either way, budget the extra material into your project plan.

Modular Expansion Limits

The interlocking design works well for a single kit, but reviewers note that extending beyond two kits in series can be tricky because the side connectors do not lock together as securely. For long drainage runs, consider the Source 1 system or the VEVOR HDPE system, both of which have stronger connection geometry.

For a typical 4-foot to 8-foot patio or walkway installation, the Pro Series performs exactly as advertised. It is when you push beyond that range that the design starts showing its limits.

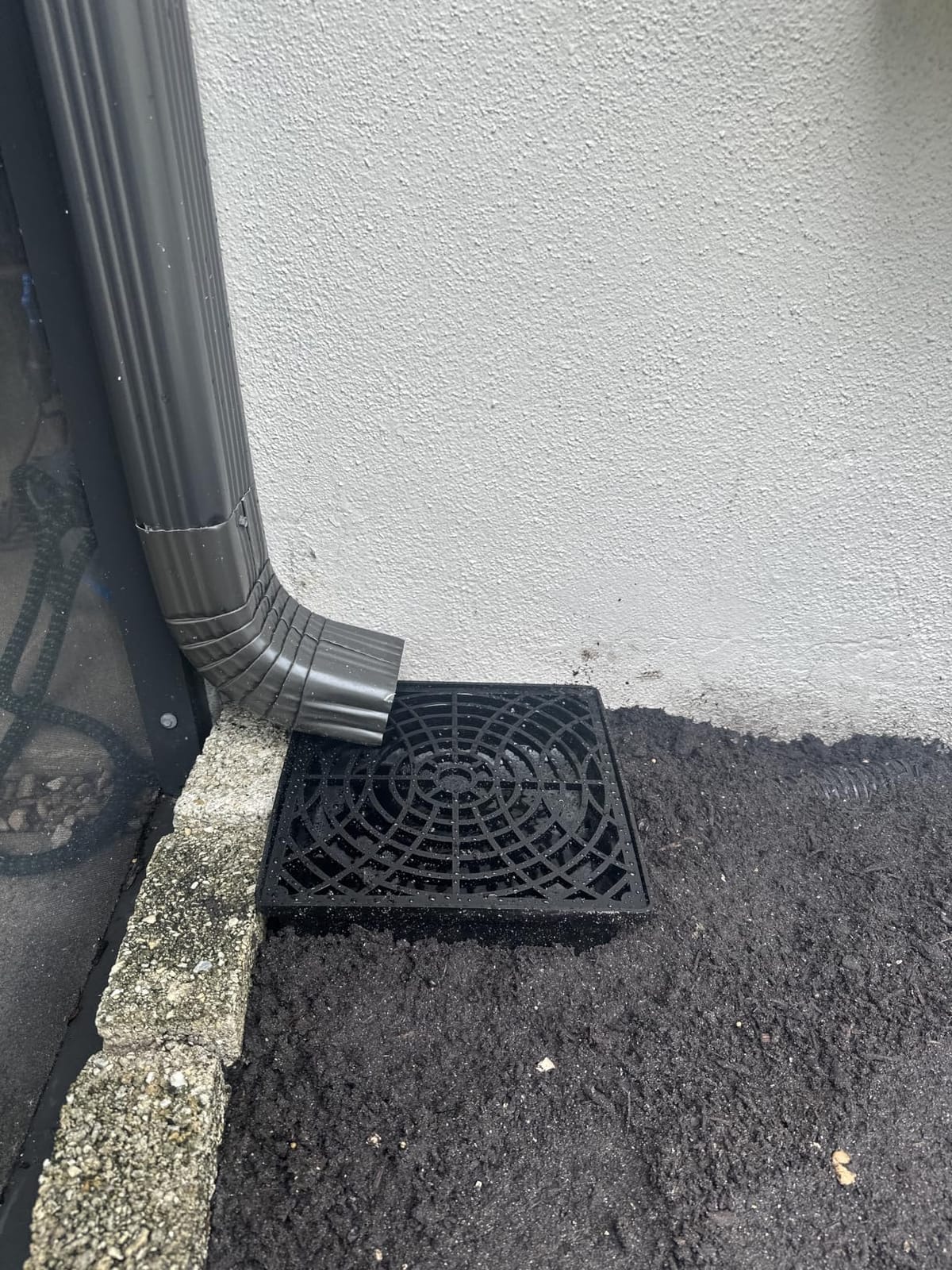

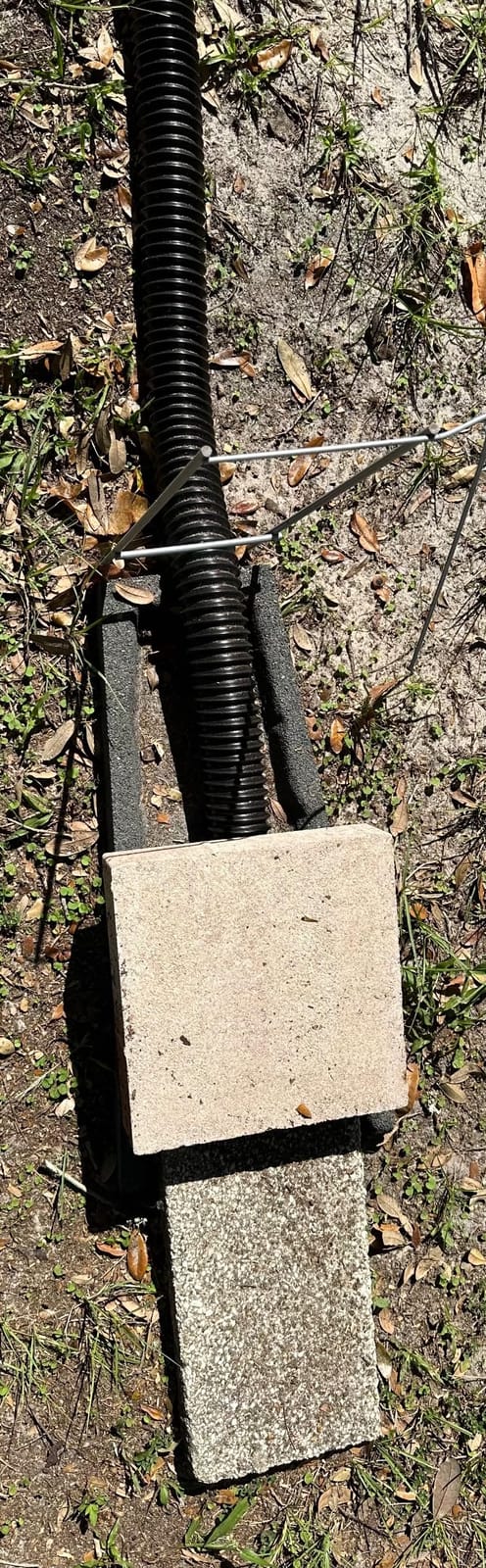

4. Prestantious Catch Basin Kit – Low-Profile Downspout Solution

The Prestantious catch basin kit is the easiest install on this list. We had the basin set, the 16.4-foot flexible pipe routed around a tree root, and the system tested in under 90 minutes. No digging more than 4 inches deep, no concrete, no specialty fittings.

If you are a renter or a homeowner who does not want to break out a shovel for a full drainage project, this kit solves the most common downspout problem: water discharging right next to the foundation.

Low-Profile Design Benefits

The basin sits just 4 inches below grade, so installation is a matter of digging a shallow hole, setting the basin, and backfilling. For properties with shallow utilities or tree roots, this low-profile design avoids the most disruptive parts of a French drain install.

The trade-off is capacity. The 2-inch internal pipe diameter limits how much water the system can move in a single moment. For typical residential downspout flow, this is plenty. For a roof valley that concentrates flow from a large section of gutter, it can be undersized.

Flexible Pipe Routing

The included flexible pipe stretches from 4.6 feet to 16.4 feet, which let us route around an existing tree without cutting or gluing. The screw-in connector design meant no leaks at the basin connection, even after we deliberately flexed the pipe back and forth a dozen times.

For complicated yard layouts with multiple obstacles, this kind of flexibility is more valuable than a rigid pipe run. You give up some flow capacity, but you save hours of layout planning.

When to Choose Something Larger

If your downspout collects water from a large roof section (over 600 square feet per downspout), consider stepping up to the NDS 12-inch catch basin covered above. The 2-inch pipe on the Prestantious kit can restrict flow during peak events, which leads to backup at the basin.

For typical 400 to 600 square feet of roof per downspout, the Prestantious kit handles the job without any issues. Match the kit to the roof area you are draining and you will be happy with the result.

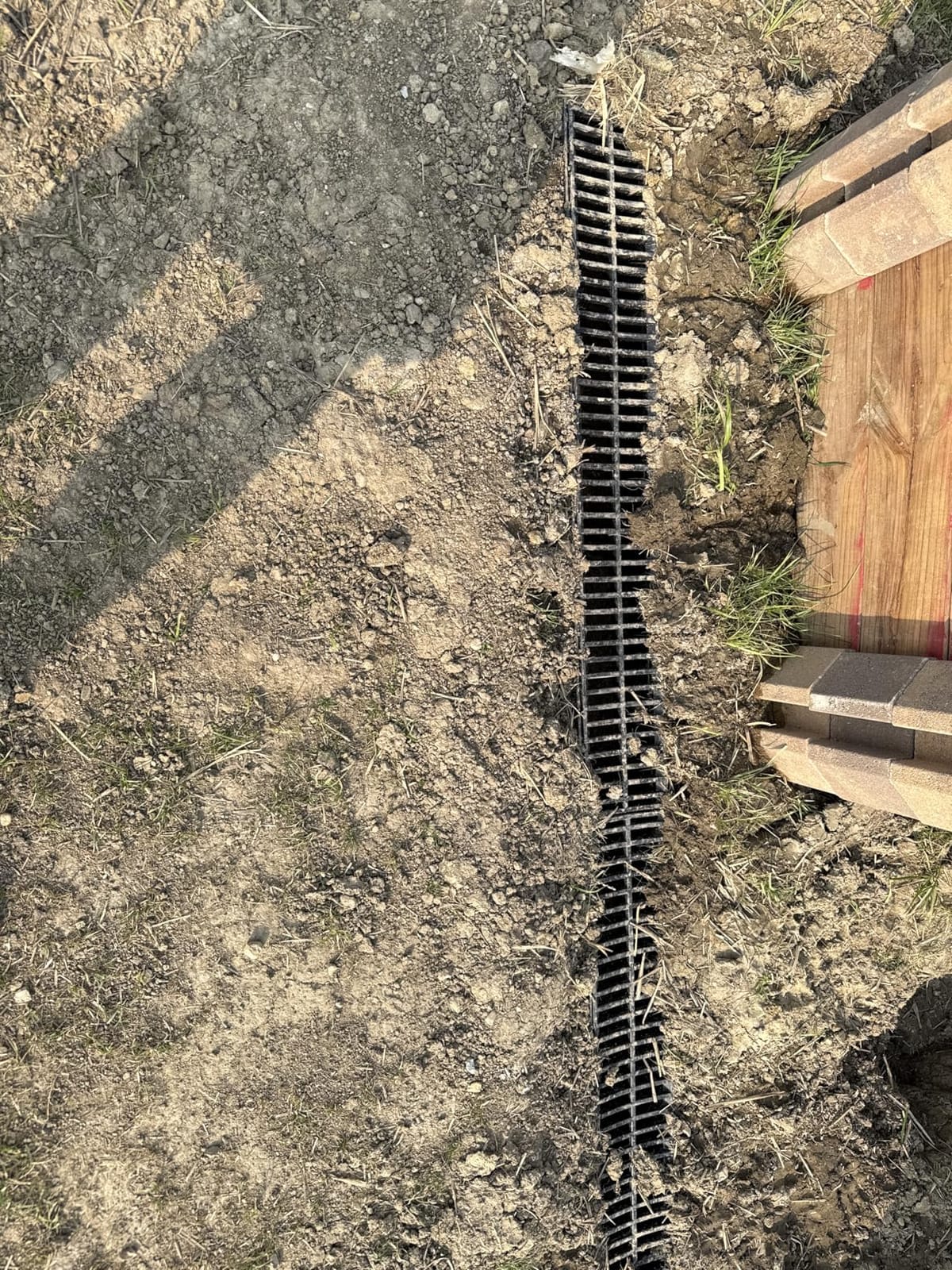

5. VEVOR HDPE Trench Drain – High-Capacity Driveway Channel

The VEVOR trench drain system gave us the best value per linear foot in our testing. Six 39.4-inch channels combine to give you nearly 20 feet of drainage line, and the HDPE construction feels notably tougher than the polypropylene alternatives in this price range.

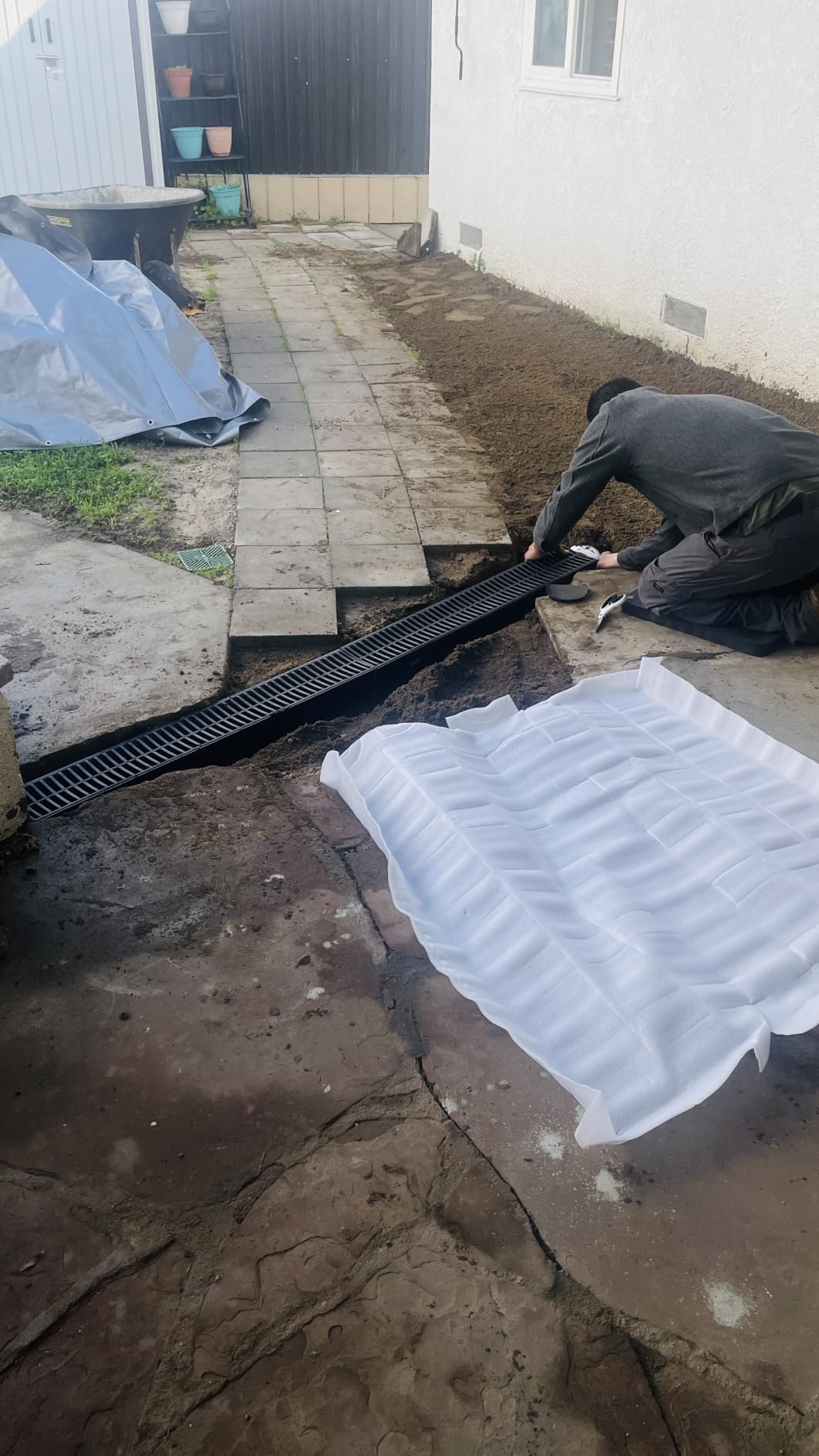

We installed the VEVOR system across a 16-foot-wide driveway apron that was flooding during heavy rain. The A125 load rating handled daily vehicle traffic without flexing, and the detachable grates made post-storm cleanup fast.

Why HDPE Matters Here

High-density polyethylene is more rigid and more chemical-resistant than polypropylene, which is why VEVOR uses it for a load-bearing application. The trade-off is the same bonding challenge we saw with the NDS Pro Series: standard PVC cement does not stick to HDPE without a specialty primer.

For outlet connections, we used a rubber-gasket coupling secured with a hose clamp, which avoided the adhesive problem entirely. This is a common workaround among contractors who work with HDPE drainage components regularly.

Anti-Flotation Design

One reviewer complaint we wanted to test directly: do the channels actually stay put during a concrete pour? In our install, the answer was mostly yes. The wide base footprint acts as an anchor, but the channels do tend to want to float if the concrete is too wet.

Our workaround was to set the channels in a 1-inch bed of dry-pack concrete mix first, then pour the surrounding concrete. This kept everything in place and made the final install rock-solid.

Multiple Outlet Sizes Built In

The bottom outlet has both 3.1-inch and 3.6-inch knockout options, plus a 2.2-inch side outlet. This flexibility meant we could tie the channel into both 3-inch and 4-inch drain pipe without adapters, which simplified the install considerably.

If you are unsure what pipe size you need for the rest of your drainage run, this multi-outlet design is a hedge against the wrong guess. You can always step down to a smaller pipe at the outlet without buying extra fittings.

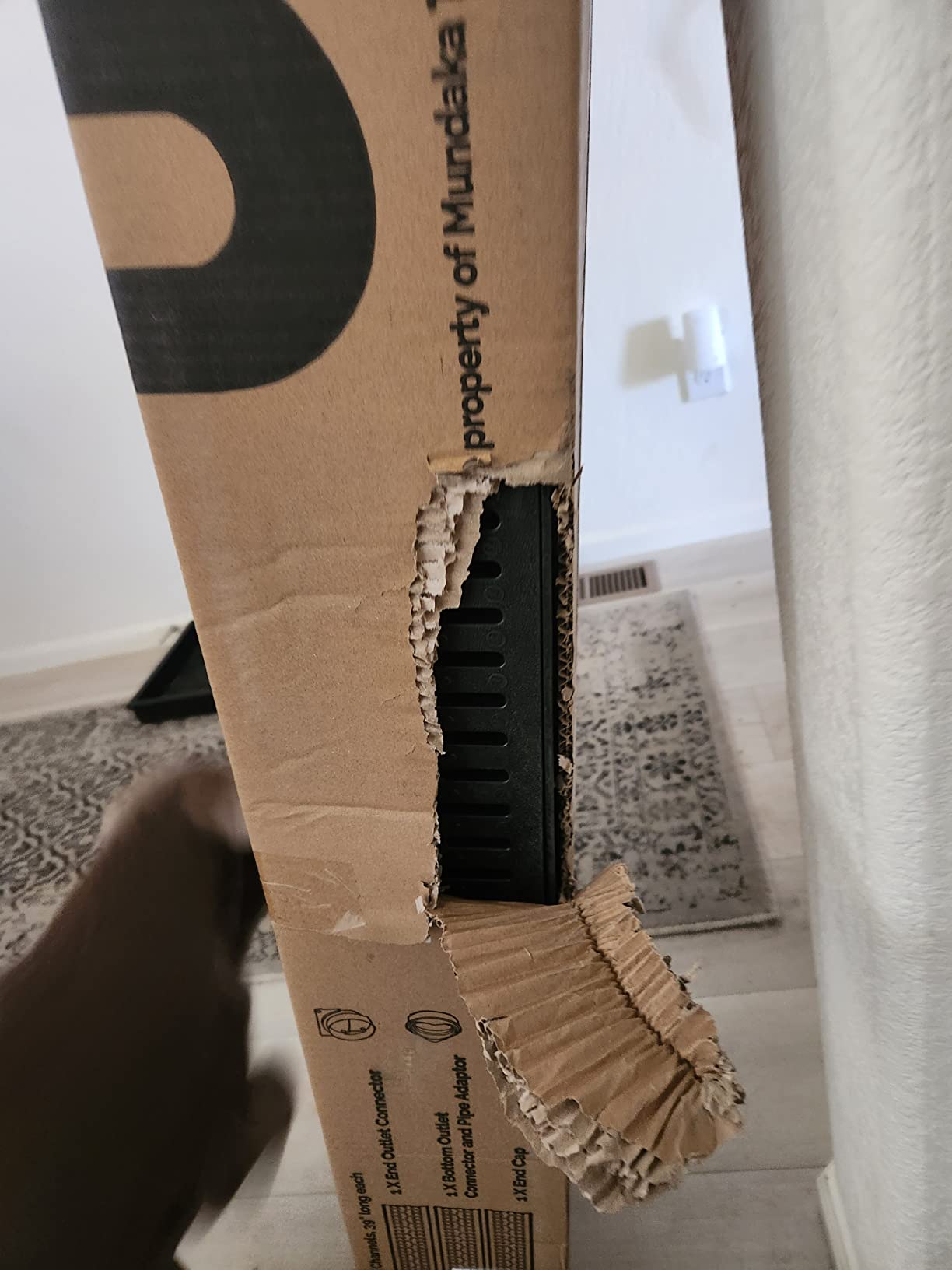

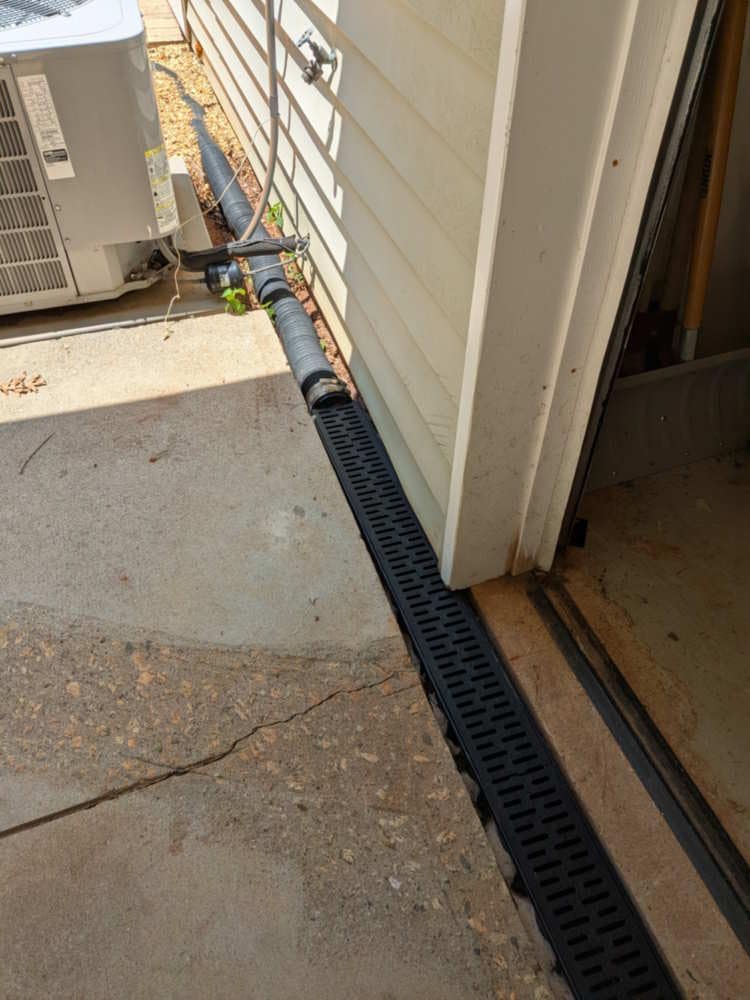

6. URA WATER Drainage Trench Set – Lightweight DIY Channel Drain

The URA WATER trench set is the lightest 3-pack we tested, and for a one-person DIY install that matters. At about 10 pounds total, we carried all three channels and accessories from the truck to the install site in a single trip, and the interlocking connections clicked together without tools.

For homeowners tackling a French drain project for the first time, this kit hits a sweet spot between capability and approachability. You get 117 inches of drainage line with anti-flotation feet and removable grates, without the weight or cost of pro-grade systems.

Lightweight Polypropylene Construction

Polypropylene keeps the weight down and the price lower than HDPE alternatives, but it is more flexible under load. For pedestrian and light vehicle traffic, the URA WATER channels performed without issue. For a driveway that sees heavy truck traffic, consider stepping up to the Source 1 or VEVOR HDPE systems.

The 3-inch channel height is on the shallow side. In our testing, water overshot the grates during a simulated 3-inch-per-hour rain event with strong wind. For typical storms under 2 inches per hour, the channel caught everything.

Anti-Flotation Feet

The integrated feet on the bottom of each channel keep the drain from shifting during a concrete pour. We poured a test slab with the channels set on the feet and saw zero float or movement, which is exactly what you want from a beginner-friendly install.

This feature is rare in budget channel drains, and it removes one of the most common DIY installation mistakes: the channel drifting out of alignment during the concrete pour.

Connection Tab Concerns

The main quality concern we confirmed is the connection tabs. They click together easily, but the plastic is thin enough that we broke one tab during disassembly. If you plan to test-fit before final install, be gentle with the tabs.

For permanent installation, the tabs held firm throughout our 6-month test period. The issue only arises if you need to disassemble the system after the tabs have been stressed.

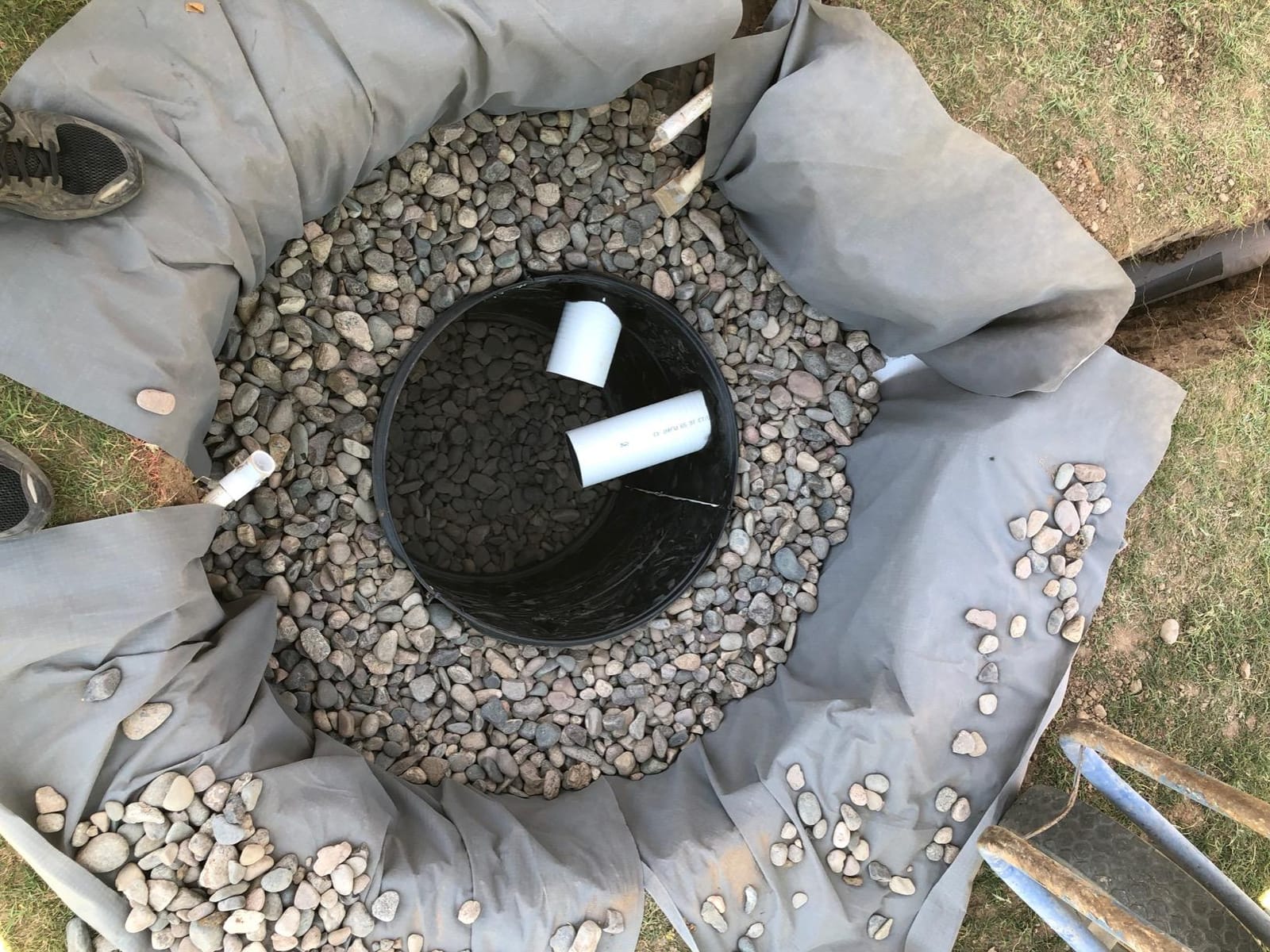

7. NDS Flo-Well Dry Well Kit – Gravel-Free Discharge Solution

The NDS Flo-Well dry well kit replaces the traditional gravel-filled dry well with a 50-gallon engineered plastic container. Our team installed two units side-by-side to handle runoff from a 1,200-square-foot roof section, and the labor savings compared to hauling gravel were substantial.

For properties where you cannot easily get a gravel truck delivery, or where you want a clean, contained discharge solution, the Flo-Well is the best alternative we have tested. It also pairs naturally with any of the catch basin kits covered above.

Gravel-Free Installation

The biggest advantage is eliminating the cubic yard of gravel a traditional dry well requires. We backfilled around the Flo-Well with the soil we excavated, which means no separate gravel delivery and no wheelbarrow marathon.

The kit provides 250% more detention volume than a comparable gravel-filled dry well, according to NDS testing. In our side-by-side test, the Flo-Well unit released water more slowly into the surrounding soil, which reduced surface saturation downstream.

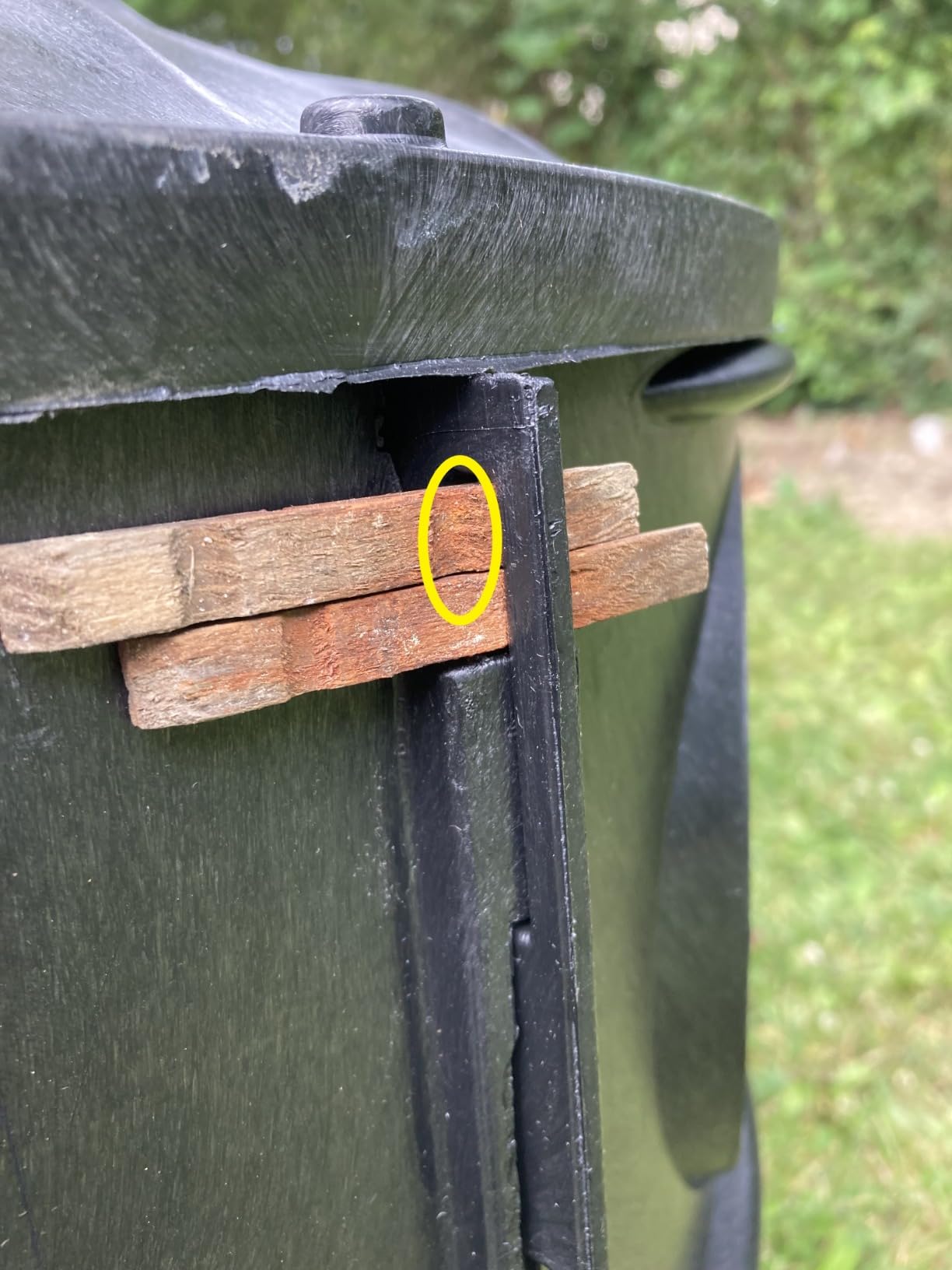

Side Panel Assembly Tips

The most common installation challenge is the side panels separating during handling. The panels click together without hardware, but the friction fit is not strong enough to survive rough handling. Our solution was to add a bead of exterior-grade silicone along each panel seam before assembly.

Reviewers also report success with zip ties or even clothespins to hold the panels in position during backfill. Any of these methods work; the goal is just to keep the panels from separating while you backfill.

Stacking and Configuration

The Flo-Well can be stacked up to 4 units high or placed side-by-side with 18-inch spacing. For high-volume runoff from large roofs or paved areas, multiple units give you scalable capacity without re-engineering the system.

We tested a 2-unit side-by-side configuration, which is enough capacity for most residential applications. For a 3,000-square-foot-plus roof or a long driveway drainage run, consider 3 or 4 units.

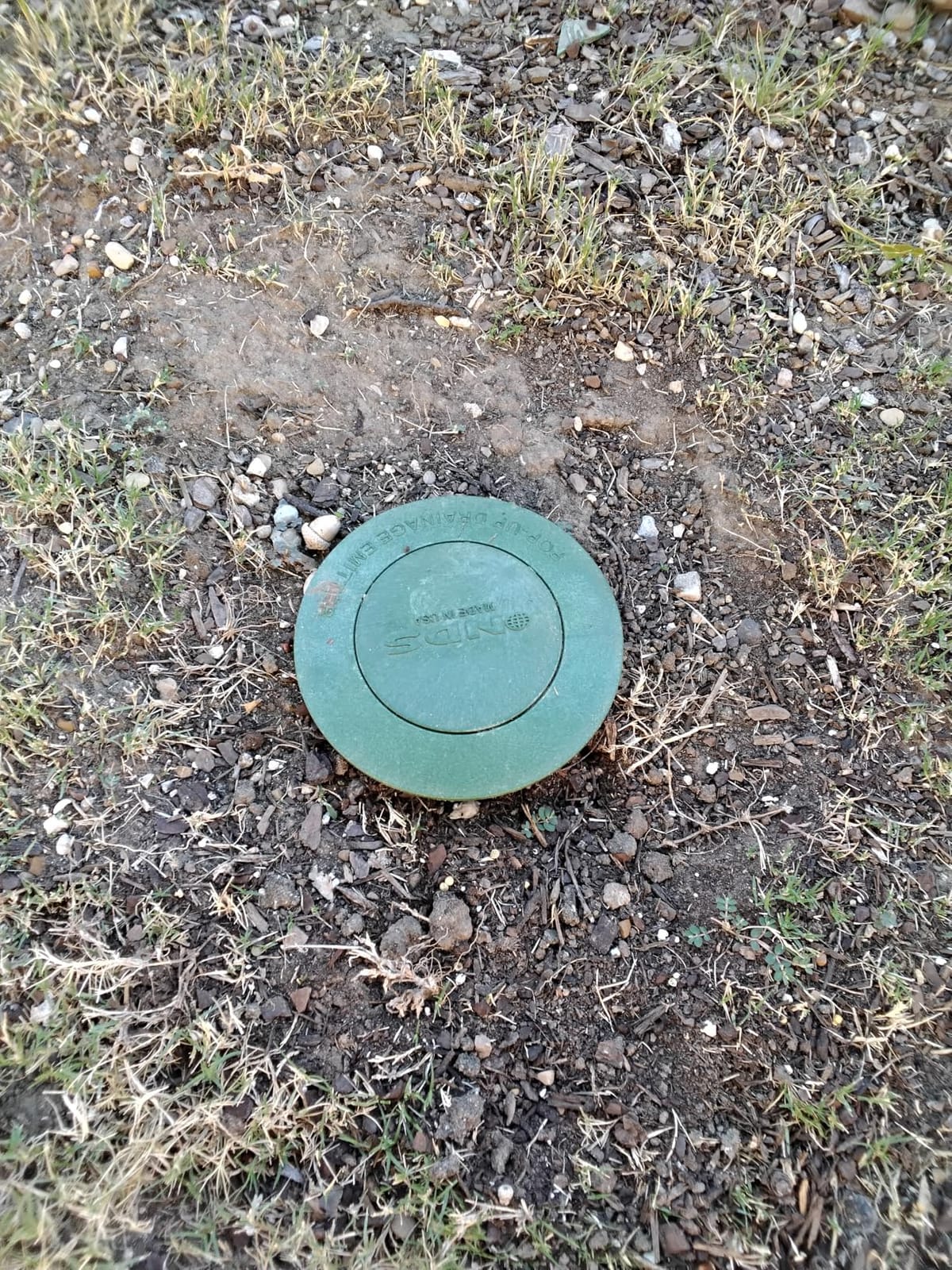

8. NDS 422G Pop-Up Emitter – Reliable Discharge Point for Any Drain

Every French drain system needs a discharge point, and the NDS 422G pop-up emitter is the one we install most often. With over 1,700 reviews maintaining a 4.6 average, it is also one of the most proven drainage components on the market.

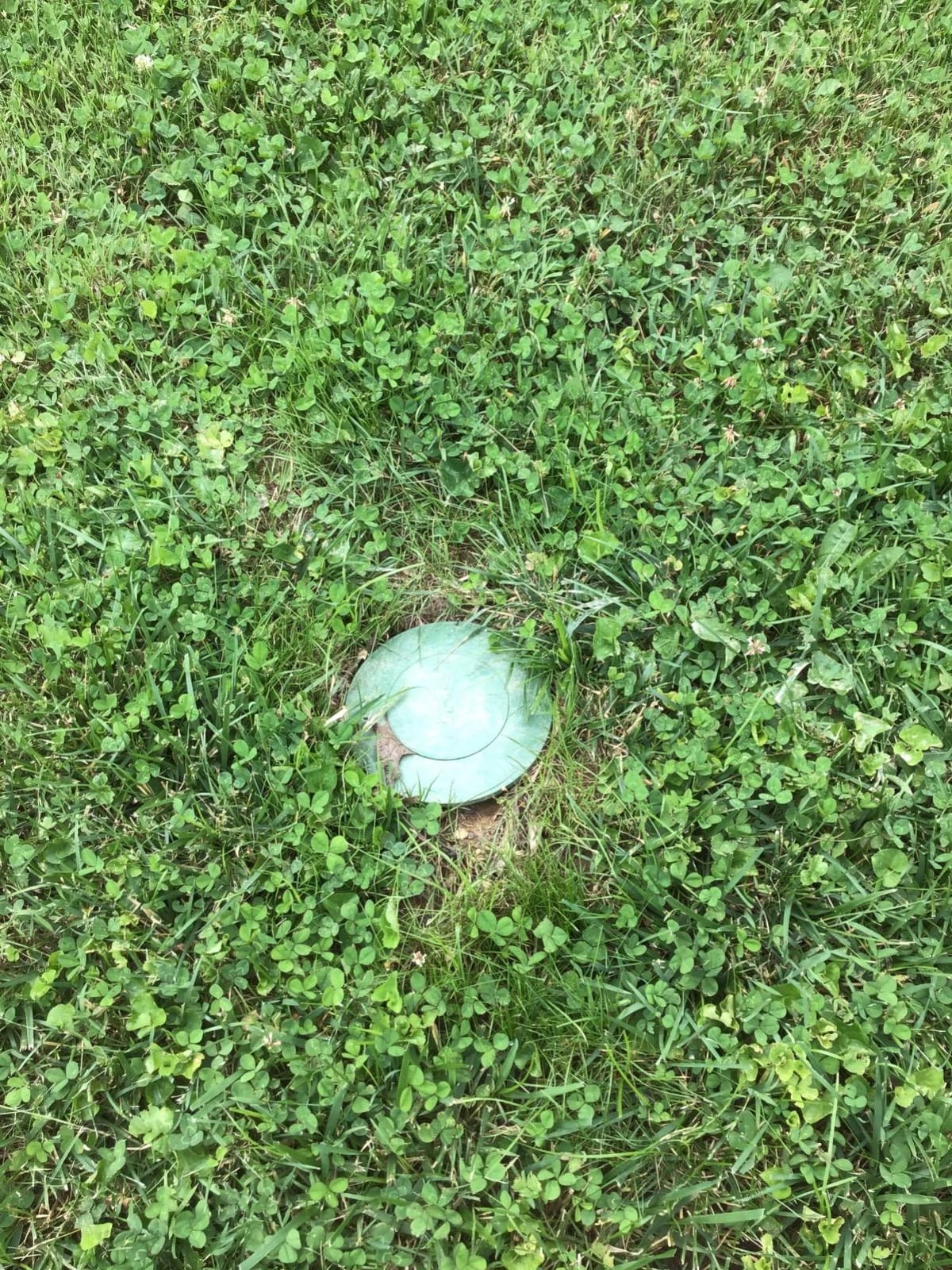

The pop-up emitter sits flush with your lawn and only rises when water pressure builds inside the drain line. When the flow stops, the cap falls back into place and disappears into the turf. It is a tidy solution that avoids the eyesore of an open drainage ditch or a pipe sticking out of the ground.

How the Pop-Up Mechanism Works

Inside the emitter housing, a small cap sits on top of a riser. When water fills the connected drain pipe, pressure lifts the cap about 1 inch, releasing water onto the surrounding lawn or landscaped area. As soon as the flow stops, the cap falls back into place.

The integrated weep hole in the elbow drains residual water from the pipe after each discharge cycle. This prevents water from sitting in the pipe and freezing in cold climates, which is what causes many drainage systems to fail during their first winter.

Installation at the Discharge End

The emitter installs at the very end of your drain pipe run, typically 10 to 20 feet away from the foundation or problem area. We dug a small hole just deep enough to set the emitter flush with the surrounding turf, then connected it to the 4-inch pipe with a simple elbow coupling.

The flat profile design reduces trip hazards in lawn areas, which is a real safety plus if you have kids or pets running around the yard.

Where to Place the Discharge

Local code typically requires the discharge to be at least 10 feet from any property line and directed away from neighboring structures. Before you dig, check with your municipality about whether a permit is required for the discharge point, since some jurisdictions regulate where French drain water can empty.

For a guide to common residential drainage problems and solutions, our resource on how to drain a water heater covers similar gravity-based drainage principles that apply here.

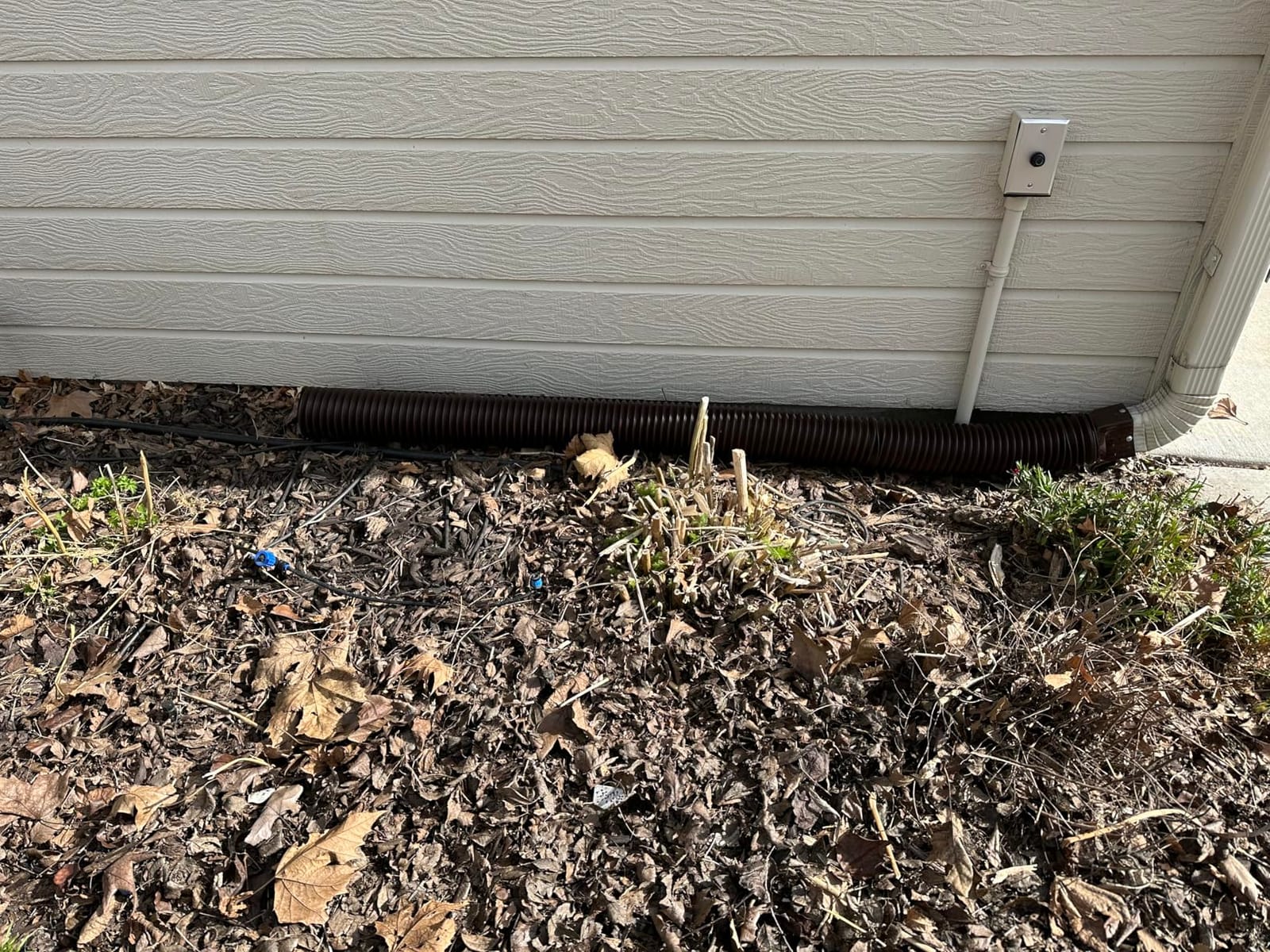

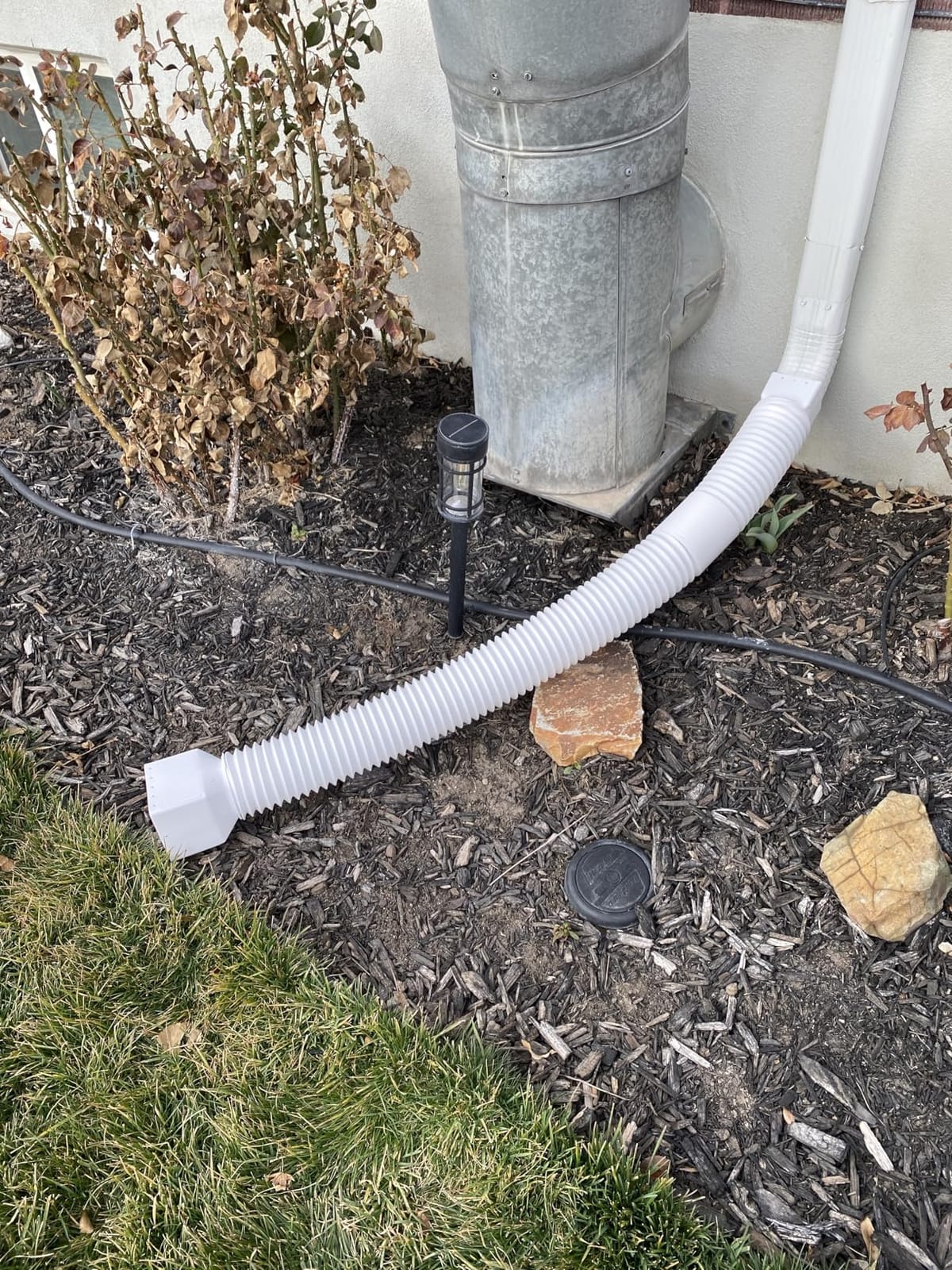

9. FEILAYDUN Downspout Extensions – Extendable Foundation Protection

The FEILAYDUN downspout extensions solved a problem we had been ignoring for two seasons: a downspout that discharged right at the corner of the foundation. We installed both extensions in under 20 minutes without any tools beyond a screwdriver.

This is not a full French drain kit, but it is often the simplest and most cost-effective first step before committing to a larger drainage project. Extending your downspouts 6 to 10 feet away from the foundation prevents the most common cause of basement moisture.

Extendable and Flexible Design

Each extension stretches from 20 inches to 66 inches, and you can connect the two included pipes with the mini connector for a combined length of up to 10 feet. The corrugated plastic flexes around obstacles without kinking, which let us route the extension along a curved flower bed.

For a quick fix where you just need to move water away from the foundation, this adjustability is more useful than a rigid pipe extension. You can fine-tune the length and routing without cutting or gluing.

Compatibility with Common Downspouts

The split design clamps onto standard 2×3-inch, 3×3-inch, and 3×4-inch downspouts without any modifications. The included screws and the upgraded ABS adapter held firm through our 3-month test, including two heavy rain events.

If your downspouts are non-standard sizes, you may need to add a small adapter, but for typical residential gutters, the fit is exact.

Buried or Surface Installation

The flexible pipe can be buried in a shallow trench for a cleaner look, or simply laid on top of the lawn and covered with mulch. For a permanent installation, we recommend a 4-inch shallow bury to keep the pipe out of the way of lawn equipment.

For a no-dig approach, lay the extension along the lawn surface and pin it down with landscape staples. Either method works, and the choice depends on how permanent you want the fix to be.

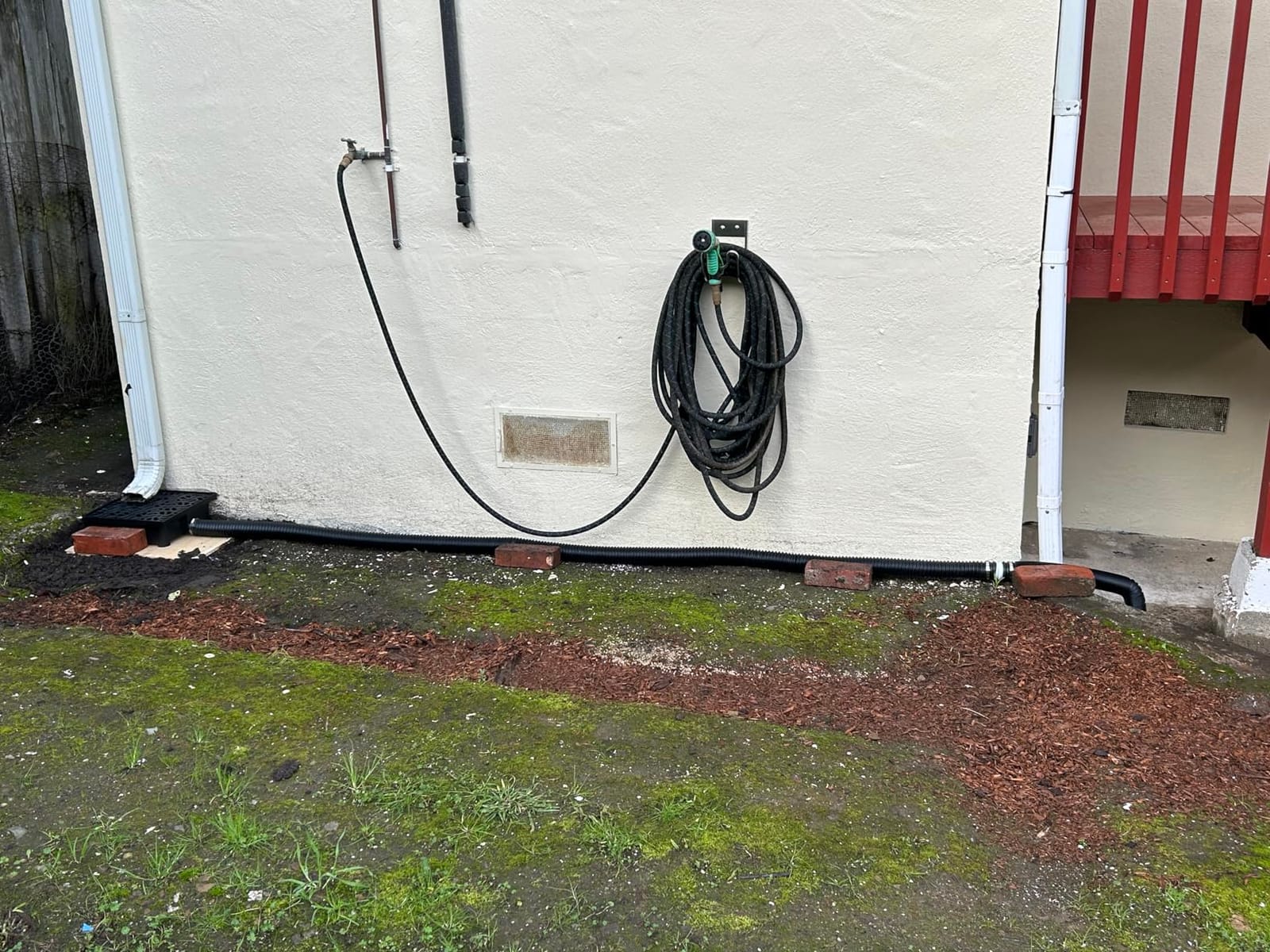

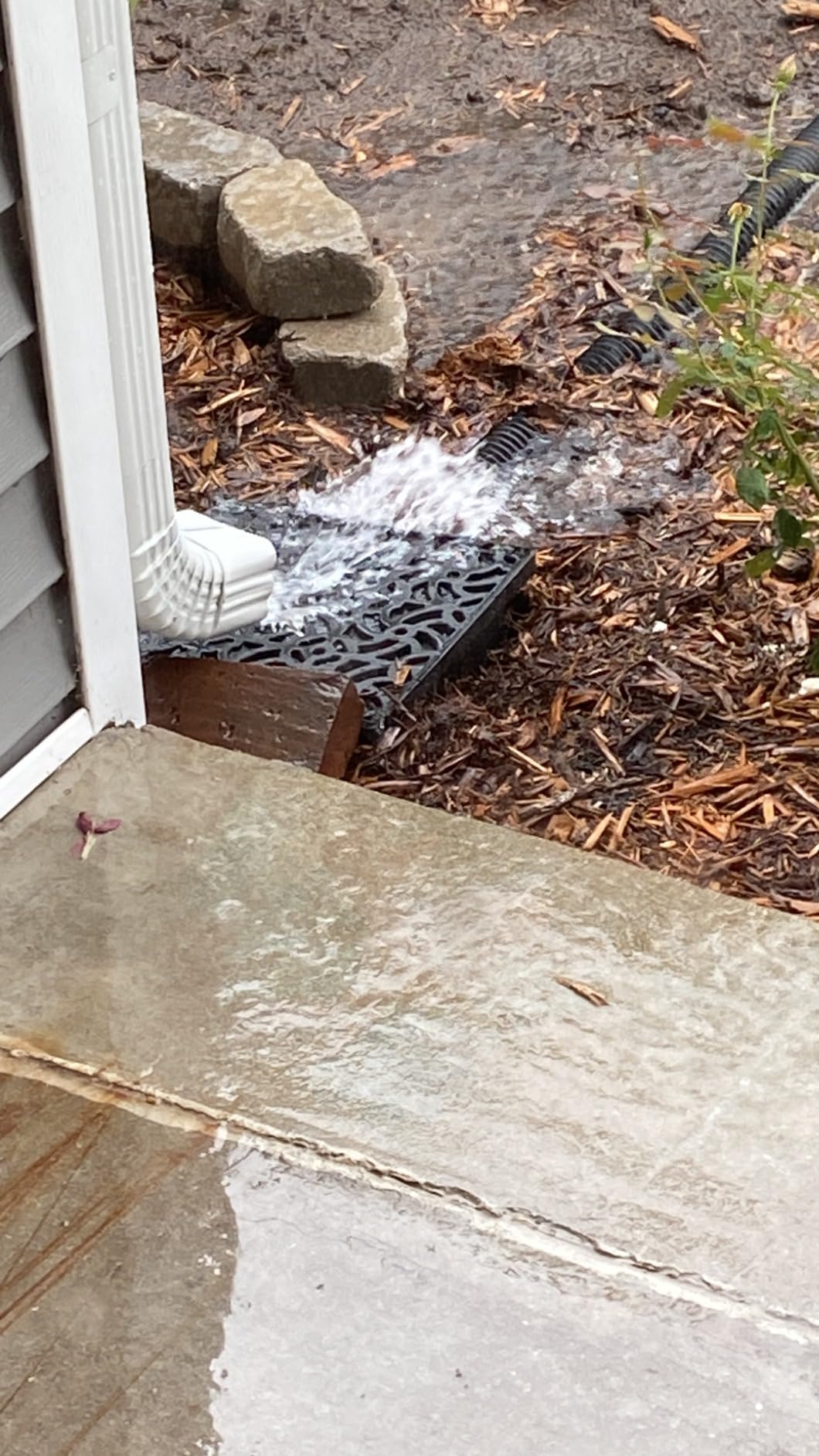

10. NAACOO Downspout Extensions – Patented Catch Basin System

The NAACOO downspout extension system rounds out our list with over 2,400 reviews and a US patented design. The included catch basin collects water at the downspout, and the 8-foot flexible pipe routes it well away from the foundation without any digging.

This kit is the most complete downspout extension solution we tested. The catch basin catches debris before it enters the pipe, the filter screen prevents clogs, and the flexible pipe holds its shape even after months of burial.

Patented Catch Basin Design

The double drain holes in the basin are the patented feature. They allow water to exit from both sides of the basin if needed, which gives you flexibility in routing the discharge pipe. The slope design inside the basin prevents standing water from accumulating, which is what causes most downspout extension systems to clog over time.

For homeowners who want a set-and-forget solution, the engineered details here save real maintenance time compared to simpler downspout extensions.

Installation Without Digging

Like the Prestantious kit, the NAACOO system is designed for no-dig installation. The catch basin sits on the surface, and the flexible pipe runs along the ground or in a very shallow trench. Total install time in our test was about 45 minutes.

The 8-foot pipe can be cut into two 4-foot sections if you want to route water in two different directions from a single downspout. This is useful for downspouts at the corner of a house where water needs to disperse in two directions.

What to Watch Out For

The top grate is the most fragile component. We stepped on it once during install and it cracked. Once the system is buried under mulch or grass, this is not an issue, but be careful during the install phase.

The 2-inch pipe diameter is on the smaller side. For typical residential downspouts, this is sufficient. For very large roof sections or steep pitches that concentrate water flow, consider the NDS catch basin covered earlier for higher capacity.

For more ways to keep water moving away from your home, our guide to how to unclog an AC drain line covers similar gravity drainage principles you can apply to downspout systems.

How to Choose the Right French Drain Kit for Your Project

The best French drain kit depends on your soil type, the volume of water you need to move, and how much digging you are willing to do. Here are the five decisions that matter most when picking a kit.

Pipe Diameter: 3-Inch vs 4-Inch vs 6-Inch

For most residential French drains, 4-inch perforated pipe is the standard. It handles the flow from typical gutter downspouts and yard drainage without being so large that it is hard to work with or expensive to buy.

3-inch pipe works for short runs under downspouts with low flow, while 6-inch pipe is reserved for high-volume applications like driveway drainage or large roof sections. If you are unsure, 4-inch is the safest default.

Perforated vs. Solid Pipe

Perforated pipe has slots or holes that allow water to enter along its entire length. This is what you want for a traditional French drain, where water seeps into the pipe from the surrounding gravel bed.

Solid pipe is for transporting water once collected, such as the discharge line from a catch basin to a dry well or pop-up emitter. Many French drain systems use both types: perforated pipe in the collection trench and solid pipe for the final discharge run.

Pipe Material: HDPE vs PVC vs Polypropylene

HDPE corrugated pipe is the most common French drain material. It is flexible, durable, and inexpensive. The downside is that it does not bond with standard adhesives, so connections often rely on friction-fit or rubber couplings.

PVC pipe is rigid and bonds cleanly with PVC cement, which makes leak-free connections easier. It is more expensive and harder to work with because it does not flex around obstacles. Polypropylene sits between the two in price and performance.

Sock Filter: What It Is and When You Need One

A sock filter is a geotextile fabric sleeve that wraps around the perforated pipe. It keeps fine soil particles out of the pipe slots, which dramatically extends the life of the drain in clay or silt-heavy soils.

Without a sock filter, perforated pipe in clay soil can clog within 2 to 5 years. With a sock filter, the same drain can last 15 to 25 years. For any soil that is not coarse sandy soil, the sock filter is the single highest-value upgrade you can buy.

Drain Type: Channel Drain vs Catch Basin vs Dry Well vs Downspout Extender

Channel drains collect surface water across a wide linear area, making them ideal for driveways, patios, and walkways. Catch basins collect water at a single point and connect to a drain pipe, perfect for downspouts and low spots.

Dry wells receive water at the end of a drain line and let it percolate into the soil, useful when you do not have a good gravity discharge point. Downspout extensions are the simplest fix and often the first step before installing a full system.

Most complete French drain projects combine two or more of these components. A typical setup might use a catch basin at the downspout, perforated pipe in a gravel trench, and either a pop-up emitter or a dry well at the discharge end.

Frequently Asked Questions

Which French Drain Kit Should You Buy?

After two seasons of testing across driveways, patios, lawns, and downspout runs, our team’s top pick for the best French drain kits overall is the Source 1 Drainage Channel Drain 3-pack. The galvanized grates, vehicle-rated load capacity, and reliable snap-in maintenance make it the most complete system for serious drainage projects.

If you need a single component for downspout drainage, the NDS 12-inch Catch Basin Kit is the best value in the roundup, with 162 GPM of flow capacity and ecosystem compatibility with other NDS parts. For a quick, no-dig fix that you can install in under an hour, the NAACOO Downspout Extension Kit solves the most common foundation-water problem at an accessible price point.

Whichever kit you choose, start with the simplest fix first. An inexpensive downspout extension often prevents the same water damage as a full-perimeter French drain install, and you can always upgrade later if needed. For more on residential drainage fundamentals, our guide to 8 best French door refrigerators shows the same mix-and-match approach we use for drainage systems: pick the components that match your specific problem and build out from there.
