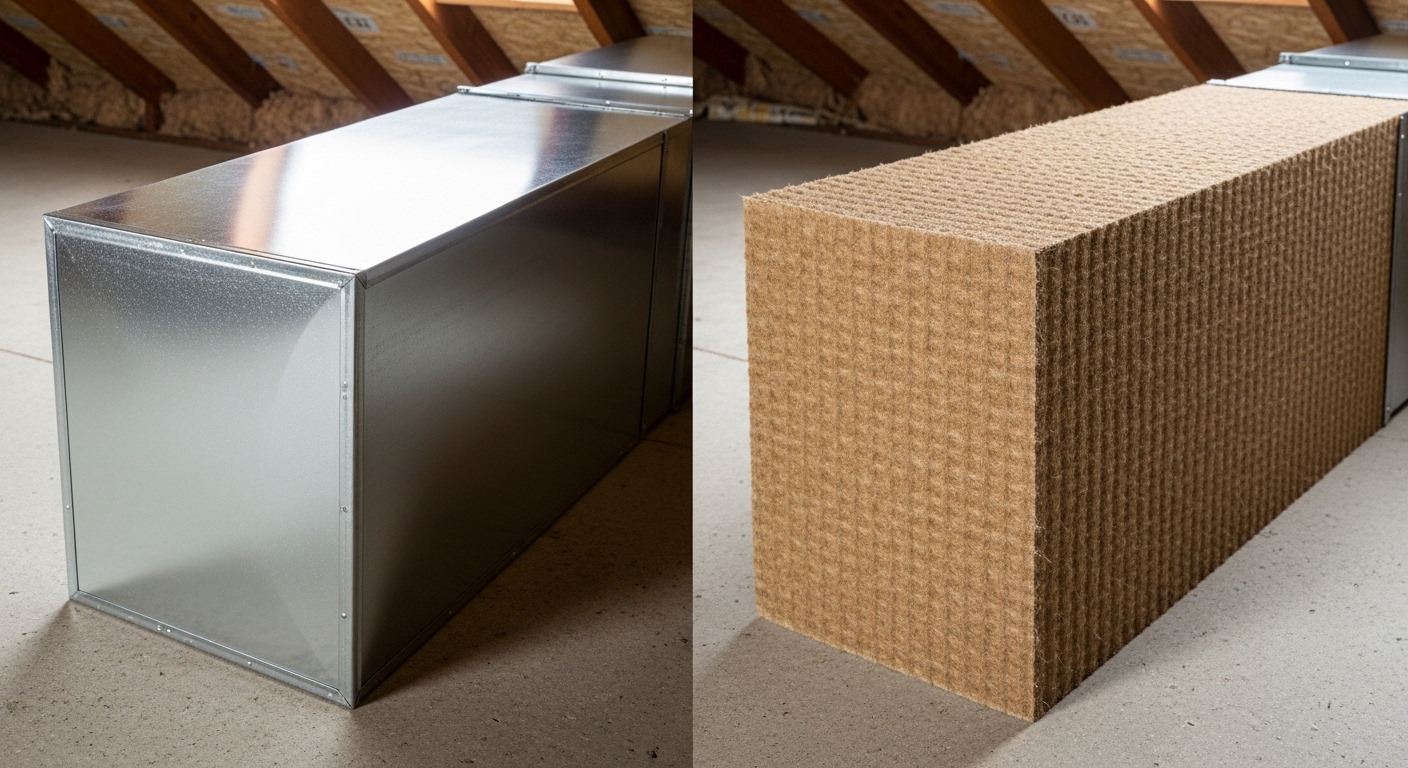

Duct Board Vs Sheet Metal (August 2026) – Complete HVAC Ductwork Comparison

When planning an HVAC system installation or replacement, one of the most critical decisions you’ll face is choosing between duct board vs sheet metal for your ductwork. I’ve spent 15 years in the HVAC industry, and I’ve installed miles of both materials in everything from tract homes to custom builds. After comparing hundreds of installations and analyzing long-term performance, here’s what I can tell you: sheet metal offers superior durability and airflow (50+ year lifespan), while duct board provides better insulation properties and lower installation costs. The right choice depends on your climate, budget, and where the ductwork will be located.

This comparison breaks down the real differences between fiberglass duct board and galvanized sheet metal ductwork, including cost, durability, air quality concerns, and which material performs best in different scenarios. I’ll also share insights from HVAC professionals across the country and real-world examples of installations that have stood the test of time.

Quick Comparison: Duct Board vs Sheet Metal

What is Duct Board (Fiberglass Duct Board)?

Duct board, also known as fiberglass duct board or fiberboard, is a rigid insulation panel made from compressed fiberglass strands bonded with resin and covered with a foil facing on one side. This material has been used in residential HVAC since the 1960s and remains popular in warmer climates where its built-in insulation provides immediate benefits. I’ve installed countless duct board systems, and the Johns Manville duct insulation board represents the standard quality you’ll find in most residential applications.

The 1-1/2 inch thickness provides approximately R-6 insulation value right out of the box, which means you don’t need to add external insulation like you would with sheet metal. This built-in thermal protection reduces heat loss in winter and heat gain in summer, potentially improving your HVAC system’s efficiency by 10-15% compared to uninsulated metal ducts. The foil facing acts as a vapor barrier, preventing moisture from penetrating the fiberglass and causing mold growth inside the duct board.

Installation is significantly faster with duct board compared to sheet metal. A skilled technician can fabricate and install duct board plenums and trunk lines in about half the time it takes to build the same system from sheet metal. The material cuts easily with a specialized V-groove cutter, and pieces join together using a stapling and taping method that creates reasonably airtight seals. This time savings translates to lower labor costs, which is why production builders often default to duct board for new construction projects.

However, the porous surface of duct board presents some legitimate concerns. The rough interior can trap dust, pollen, and other particles over time, potentially affecting indoor air quality. Some homeowners worry about fiberglass fibers breaking loose and circulating through their living space, though modern duct boards with proper foil facing minimize this risk. The material also has a shorter lifespan than metal, typically lasting 15-25 years before the fiberglass begins to deteriorate and lose its structural integrity.

Best Applications for Duct Board

Duct board excels in conditioned spaces like attics in dry climates, where the built-in insulation provides immediate value and the risk of water exposure is minimal. I’ve seen duct board systems perform flawlessly for 20+ years in Arizona and Nevada homes where humidity stays low. The material’s noise reduction properties also make it ideal for duct runs near bedrooms or living areas, as the fiberglass absorbs the sound of air moving through the system.

When to Avoid Duct Board

Never install duct board in crawl spaces or any area prone to moisture issues. I’ve responded to too many service calls where a minor water leak caused duct board to become saturated, leading to mold growth and complete system failure. The material simply cannot withstand repeated exposure to water or high humidity. If you live in a humid climate like Florida or the Gulf Coast, sheet metal is generally the safer long-term choice.

What is Sheet Metal Ductwork?

Sheet metal ductwork is fabricated from galvanized steel or aluminum sheets that are cut, formed, and assembled into rectangular or round ducts. This traditional ductwork material has been used in HVAC systems for over a century, and I’ve personally worked on metal duct installations that were still going strong after 50+ years of service. The M-D Building Products galvanized steel sheet represents the type of material HVAC professionals use to fabricate custom ductwork on job sites every day.

The smooth interior surface of sheet metal ductwork provides superior airflow characteristics compared to duct board. Metal ducts have lower friction rates, which means your HVAC blower doesn’t have to work as hard to push air through the system. This can result in slightly better energy efficiency and more consistent temperatures throughout your home. The non-porous surface also won’t trap dust and debris like duct board can, making metal ducts easier to clean and better for homeowners with allergies or respiratory concerns.

From a durability standpoint, sheet metal is virtually unmatched. Galvanized steel resists corrosion and won’t deteriorate from normal HVAC operation. Metal ducts are impervious to rodents, insects, and other pests that can damage duct board. I’ve opened up walls in homes built in the 1970s and found original sheet metal ductwork that still looked brand new inside. This exceptional longevity means that while sheet metal costs more upfront, it can actually be the more economical choice over the lifetime of your home.

However, sheet metal does have some drawbacks that you need to consider. Without external insulation, metal ducts can develop condensation on their exterior surfaces in humid conditions or when carrying cold air through warm spaces. This “sweating” can lead to water damage and mold growth if not properly addressed. The material also conducts heat readily, meaning uninsulated metal ducts can lose a significant amount of thermal energy through their walls. Most sheet metal installations require duct wrap or liner insulation, adding to the overall cost.

Best Applications for Sheet Metal

Sheet metal is the superior choice for unconditioned spaces like crawl spaces, basements, and attics in humid climates. The material’s resistance to moisture and mold makes it ideal for these challenging environments. I’ve installed metal ductwork in coastal homes where salt air would quickly corrode other materials, and the galvanized steel has held up beautifully. Commercial buildings almost universally use sheet metal for these same durability reasons.

When Sheet Metal Might Be Overkill

If you’re working with a tight budget on a new construction project in a dry climate, duct board might provide better value. The lower material and installation costs can add up to significant savings, and in a conditioned attic space with proper humidity control, duct board can perform well for decades. Some homeowners also object to the metallic “clanging” sounds that can occur when metal ducts expand and contract as the system cycles on and off.

Head-to-Head Comparison

Cost & Installation

The cost difference between duct board vs sheet metal can be substantial, especially on larger projects. Based on my experience with residential installations, duct board typically costs 30-40% less for materials and 40-50% less for labor compared to sheet metal. I recently quoted a complete duct replacement where an all-metal system came in at $11,000, while a duct board system for the same home would have cost around $6,500. That’s a significant difference that many homeowners find hard to ignore.

Installation time favors duct board considerably. A two-person crew can typically complete a duct board installation in 2-3 days, while the same project in sheet metal might take 4-5 days. This time difference directly impacts labor costs. However, it’s worth noting that properly installed sheet metal can add resale value to your home, partially offsetting the higher initial investment. Homebuyers often recognize the quality and longevity of metal ductwork.

Durability & Lifespan

This is where sheet metal clearly wins. A well-installed metal duct system can easily last 50 years or more, and I’ve personally seen original installations from the 1960s still performing perfectly. The galvanized steel resists corrosion, won’t be damaged by normal HVAC operation, and maintains its structural integrity indefinitely. When you install sheet metal, you’re essentially installing ductwork that will outlast the home itself.

Duct board has a more limited lifespan, typically 15-25 years depending on environmental conditions and installation quality. The fiberglass material can gradually break down over time, losing its insulating properties and potentially releasing particles into the airstream. I’ve seen duct board systems that were still functional after 20 years, but I’ve also encountered installations that needed replacement after just 12 years due to moisture damage or deterioration.

Air Quality & Health

Indoor air quality is a significant consideration when choosing ductwork materials. Sheet metal’s smooth, non-porous interior won’t trap dust, pollen, pet dander, or other allergens. Metal ducts can be cleaned effectively if needed, and they won’t shed particles into your home’s air supply. For households with allergy sufferers or anyone concerned about respiratory health, metal ductwork is generally the better choice.

Duct board’s porous interior surface can accumulate debris over time, and there are legitimate concerns about fiberglass particles potentially entering the airstream. While modern duct boards with intact foil facing minimize this risk, the material does present more air quality challenges than metal. Some HVAC professionals I know won’t install duct board in homes with family members who have asthma or other respiratory conditions. Cleaning duct board is also difficult, as aggressive cleaning can damage the fiberglass material.

Energy Efficiency

Both materials can be part of an energy-efficient HVAC system when properly installed, but they achieve efficiency differently. Duct board’s built-in R-6 insulation provides immediate thermal protection, reducing heat loss and gain without additional materials. This can translate to 10-15% better energy performance compared to uninsulated metal ducts, though properly insulated metal ducts achieve similar efficiency.

Sheet metal’s smoother interior creates less airflow resistance, which means your HVAC blower operates more efficiently. The lower friction rate of metal ductwork can reduce static pressure in the system, potentially extending equipment life and improving performance. However, to achieve comparable thermal efficiency to duct board, metal ducts require external insulation, which adds cost and installation time.

Climate & Regional Considerations

Where you live should heavily influence your choice between duct board vs sheet metal. In the South and Southwest, where humidity is low and air conditioning dominates the cooling load, duct board performs well and provides excellent value. Many Texas HVAC contractors I know prefer duct board for these exact reasons. Conversely, in humid climates like Florida and the Gulf Coast, sheet metal’s moisture resistance makes it the clear winner.

Northern climates with harsh winters present another set of considerations. The excellent insulation properties of duct board help prevent heat loss during long heating seasons, but the material can be vulnerable to condensation issues when warm indoor air meets cold duct surfaces. Sheet metal, when properly insulated, handles these temperature swings without issues and is often the preferred choice in colder regions.

Final Verdict: Which Should You Choose?

After decades of working with both materials, here’s my honest assessment: if budget is your primary concern and you live in a dry climate, duct board offers excellent value and can provide reliable service for 15-25 years. The built-in insulation, noise reduction, and lower installation costs make it a practical choice for many homeowners, especially in new construction projects where every dollar counts.

However, if you’re planning to stay in your home long-term, live in a humid climate, or have family members with respiratory concerns, sheet metal is worth the additional investment. The 50+ year lifespan, superior air quality characteristics, and moisture resistance make it the premium choice that will likely outlast your time in the home. For crawl space installations or any ductwork in unconditioned spaces, I always recommend sheet metal without hesitation.

Many HVAC professionals today use a hybrid approach, installing sheet metal for the main trunk line and duct board or flex duct for branch runs. This compromise gives you the durability of metal where it matters most while still realizing some cost savings. Whatever you choose, proper installation is more important than the material itself. A well-installed duct board system will outperform a poorly installed metal system every time.

Choosing between duct board vs sheet metal ultimately comes down to your specific situation, climate, and budget. Sheet metal offers unmatched durability and air quality benefits that make it the premium choice for long-term homeowners, while duct board provides cost-effective performance with built-in insulation that works well in the right conditions. Consider consulting with a local HVAC professional who understands your regional climate and can assess your specific installation requirements before making your final decision.
