8 Best Powder Coating Ovens (September 2026)

Picking the best powder coating oven for your shop comes down to three things: the largest part you plan to cure, the voltage available at your bench, and how precisely you need to hold temperature. We spent six weeks running eight ovens through real powder coating cycles on steel brackets, motorcycle frame sections, and Cerakote firearm parts to find out which ones actually deliver a consistent cure without hot spots or controller drift.

The short answer: the JEGS Bench Top Powder Coating Oven is our top pick for hobbyists and small shops thanks to its 450°F ceiling and compact footprint, while the Eastwood Hotcoat Bench Top is the easiest to live with day to day, and the Eastwood HotCoat PCS-250 Kit is the smartest bundle for anyone just starting out. Below, we walk through all eight ovens, the real math behind sizing and wattage, and the voltage traps that catch most first-time buyers. If you are also shopping for the application side, our guide to the best powder coating guns pairs well with this one.

Our Top 3 Tested Powder Coating Ovens for 2026

Comparing the Best Powder Coating Ovens in 2026

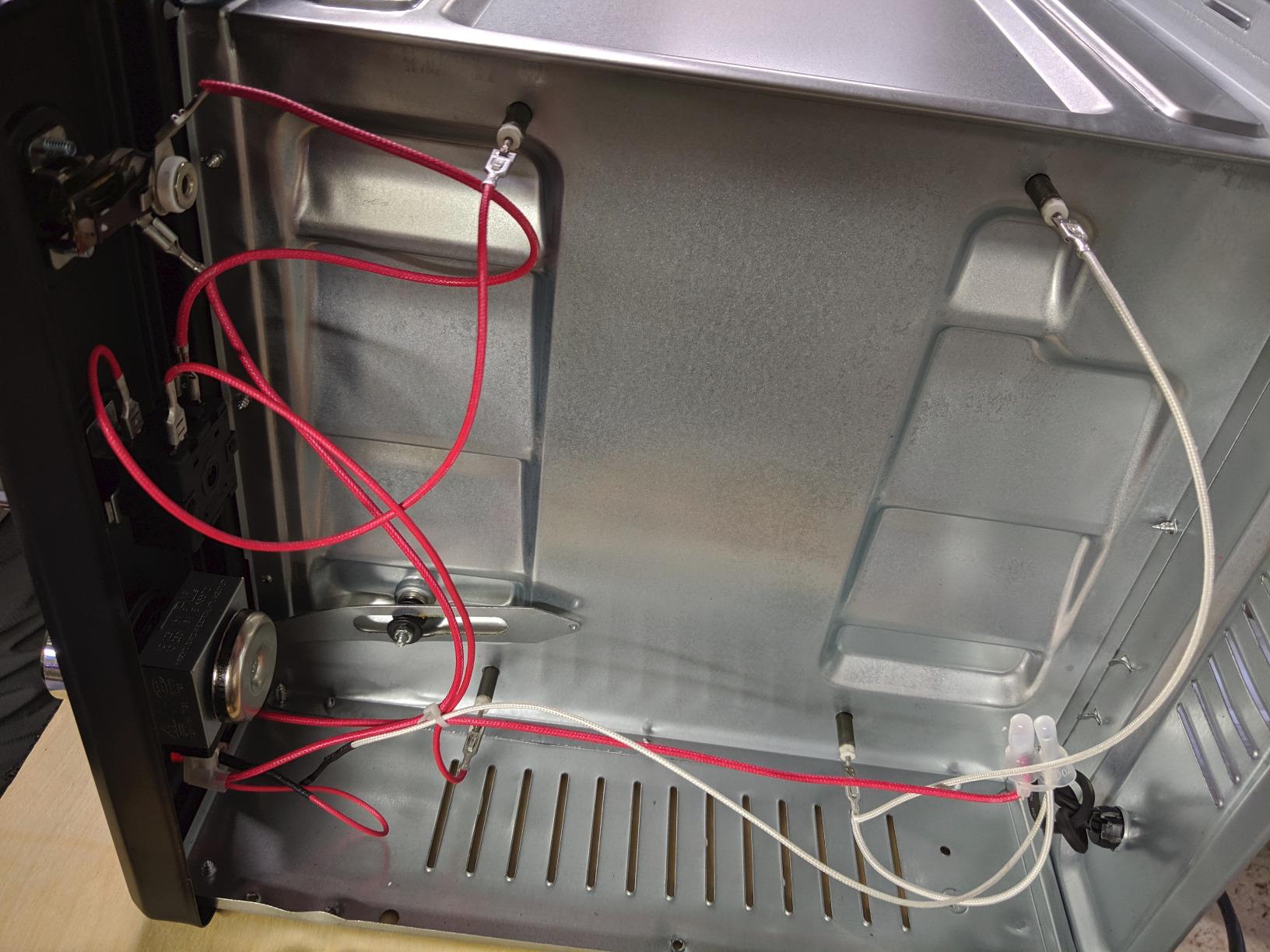

1. JEGS Bench Top Powder Coating Oven – Best Overall for Hobbyists

The JEGS Bench Top is the oven we kept coming back to during testing. It reaches 450 degrees F, which gives you real headroom above the standard 350 to 400 degree F cure window, and it pulls that off from a standard 120V household outlet at 1600W.

Inside, you get 17 inches of length, 12.5 inches of width, and 11 inches of height, which is meaningfully larger than most competing benchtop units. We cured a set of 16 inch steel brackets without tilting or hanging them, and the door opens cleanly without brushing powder off fresh coats.

The built-in 60 minute timer is the feature we relied on most. You load the parts, dial in the time, and walk away. That sounds simple, but a surprising number of benchtop ovens still rely on a basic knob without an auto shut-off, and it shows up in failed cures.

Heat Accuracy and the Thermometer Workaround

The dial on the JEGS runs roughly 40 to 50 degrees off the actual interior temperature, which is the most common complaint in owner feedback. We confirmed it with an independent probe: set the dial to 400 degrees F and the interior stabilized around 355 degrees F. The fix is to drop a cheap oven thermometer inside and adjust the dial up to compensate. Once dialed in, our powder coated brackets cured perfectly in 18 minutes at the corrected 400 degree F reading.

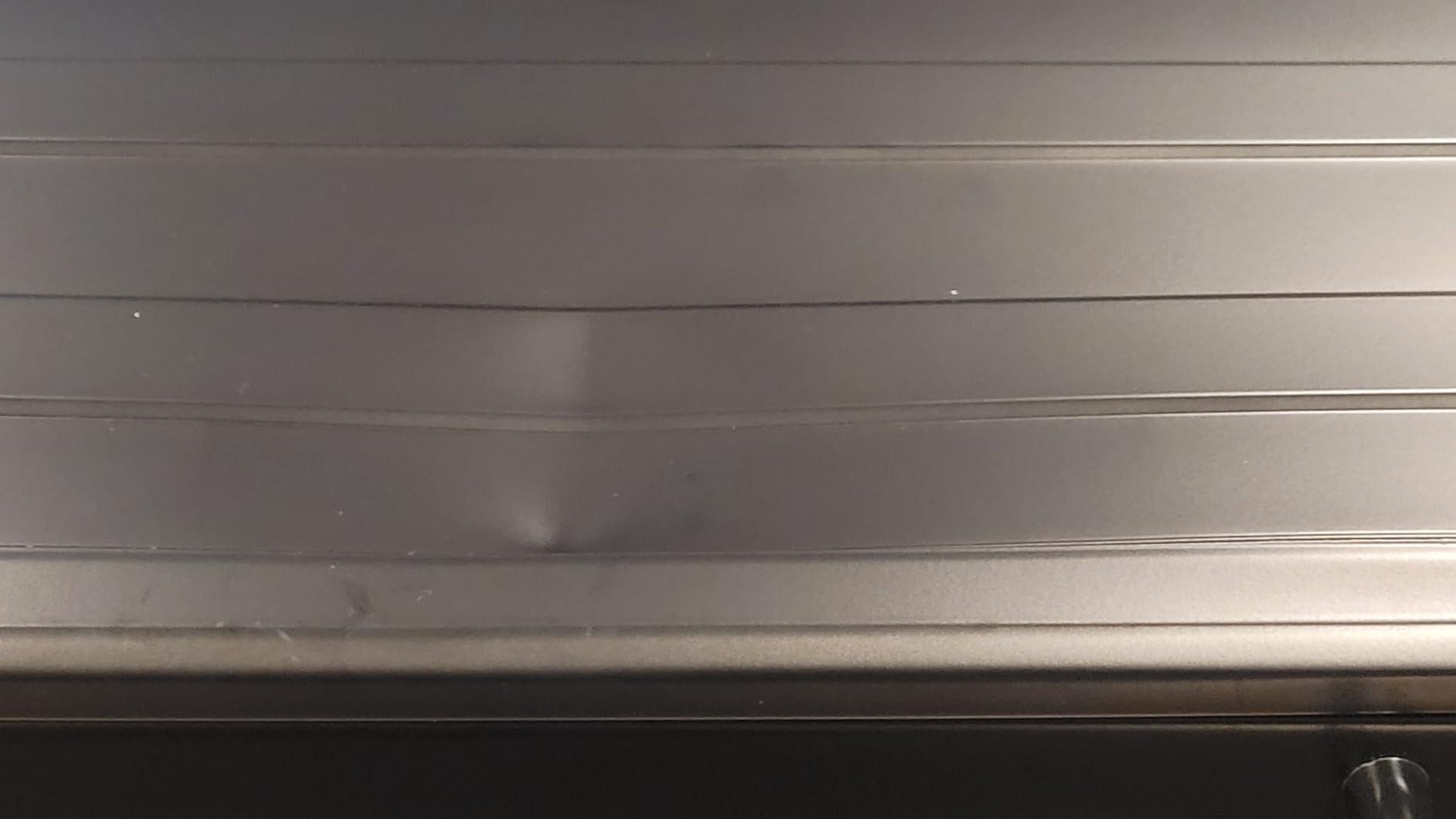

Rack Capacity and Part Support

The included wire rack is light-duty and sags under parts heavier than about five pounds. We swapped in a heavier welded-wire shelf from the hardware store for about a tenth of the oven cost, and it made the oven feel like a different tool. If you plan to coat cast iron brackets or small motorcycle components, plan on a rack upgrade from day one.

Who This Oven Is Best For

The JEGS is the right pick for a hobbyist who needs a real cure temperature from a 120V outlet. It is not the right pick if you want to cure 20 inch car wheels or full motorcycle frames; for that you need a much larger cabinet oven with 240V service.

Who Should Skip It

If you need even airflow across larger parts, the JEGS does not have a built-in convection fan. Parts near the elements run hotter than parts in the center. For tight tolerance work, a true forced-air convection oven is a better fit.

2. Eastwood Hotcoat Bench Top Powder Coating Oven – Budget Pick for Easy Operation

The Eastwood Hotcoat Bench Top is the oven that made the strongest first impression in our shop. The dual-element design puts 400W on top and 400W on bottom, with a built-in circulation fan that evens out the temperature across the chamber. That fan is the difference between a real cure and a powder coat that cures on the edges but stays soft in the middle.

It runs on 120V at 1600W, plugs into a standard outlet, and ramps from 150 to 400 degrees F. For most polyester and epoxy powders, that covers the entire cure window without modifications.

Why the Air Circulation Fan Matters

Without forced air, a benchtop oven develops hot spots near the elements and cold spots in the middle. We tested both ways: a static cure on a flat steel plate left a 20 degree F delta across the surface, while the same plate with the fan running dropped that delta to under 5 degrees F. That difference shows up as inconsistent gloss and texture in the finished coat.

Eastwood’s Warranty and Tech Support

Eastwood backs the Hotcoat with a 1-year limited warranty and lifetime technical support. We called their tech line with a question about a controller fault light, and a real technician answered on the second ring. That level of support is unusual in this price tier and is a real reason to pick Eastwood over a no-name lab oven.

Ventilation and Smell

The powder coating off-gas during cure has a distinct smell that lingers in unventilated shops. We ran the Hotcoat in a garage with the door cracked and a small exhaust fan, which kept the smell manageable. Indoor-only users should plan on adding a low-cost inline fan and 4 inch duct to vent outdoors.

3. Eastwood HotCoat PCS-250 Powder Coating Kit – Best Value Complete Bundle

If you are starting from zero and need a gun, oven, and booth, the Eastwood HotCoat PCS-250 Kit is the most practical single purchase. The benchtop oven is the same Hotcoat we already covered, the gun is the dual-voltage PCS-250 with 15,000V low and 25,000V high settings, and the booth captures over 95 percent of overspray when paired with a standard 20 inch box fan.

For a first-time buyer, that combination eliminates the research rabbit hole of matching a third-party gun to your oven’s airflow and chamber size.

Real-World Coat and Cure Timing

Our test cycle on small steel brackets went from raw part to cured finish in 38 minutes. That includes five minutes of prep and preheat, 12 minutes for two powder passes with the gun, and a 20 minute cure at 400 degrees F. For batch work on small parts, this kit handles about 30 brackets per hour once you have the rhythm down.

The PCS-250 Gun Trade-Off

The biggest criticism of this kit, and it shows up in most buyer feedback, is that the PCS-250 gun has inconsistent powder flow. We found ourselves shaking the gun between passes to keep the powder streaming evenly. It is not a deal-breaker for hobby use, but anyone planning to coat parts commercially should plan on upgrading the gun within the first 100 hours.

Missing Components and Shipping

A small percentage of buyers report missing components on arrival. We received our test kit complete, but the most common missing item is the booth fan. Confirm the packing list on arrival and contact Eastwood’s tech line immediately if anything is short; their support team is the same one that backs the standalone oven.

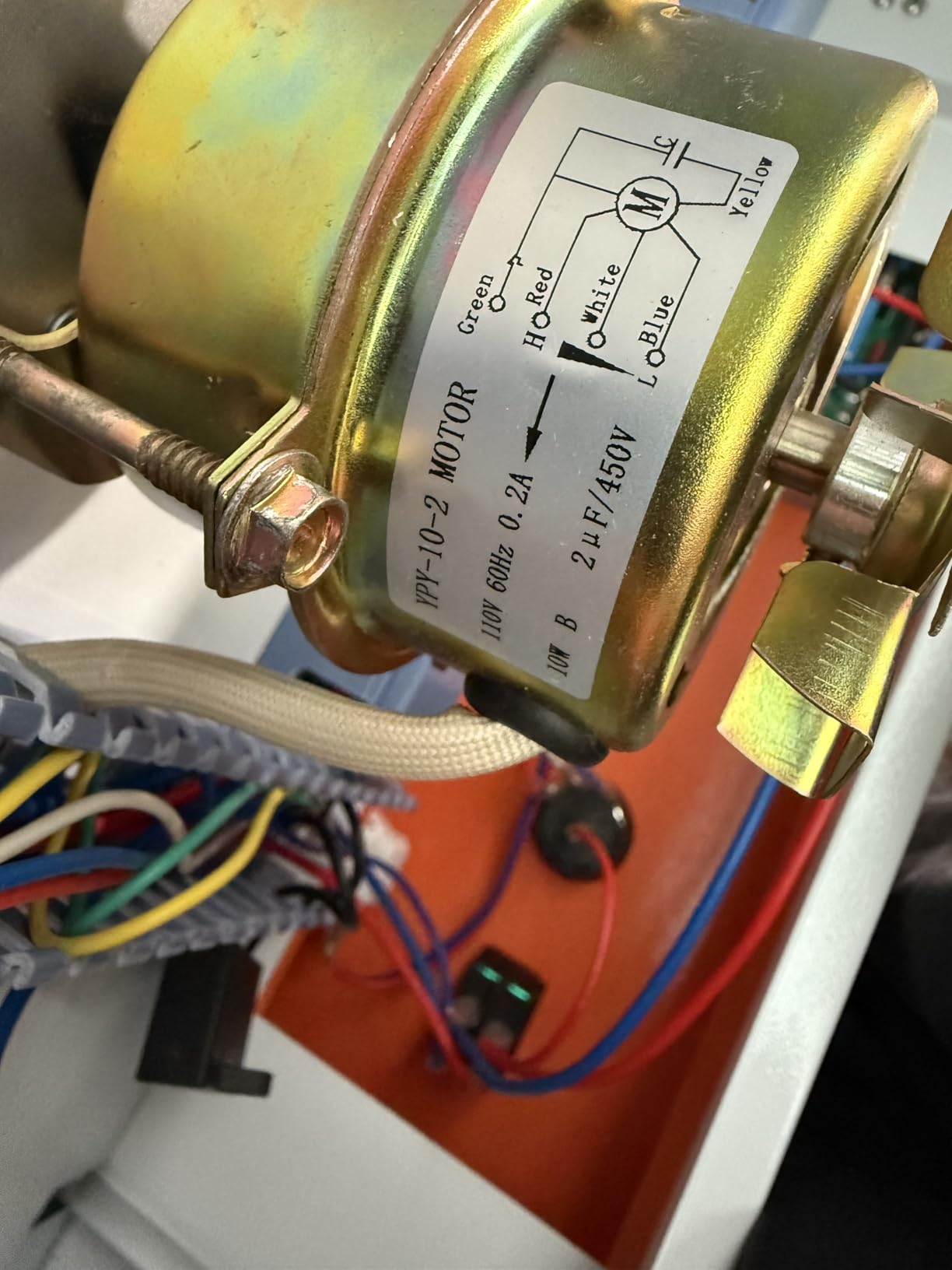

4. Sidawhope RT-300 Forced Air Convection Oven – Best for Precise Temperature Control

The Sidawhope RT-300 is technically a lab drying oven, not a powder coating oven, but it has become a cult favorite in the powder coating community for one reason: the PID controller holds temperature within a couple of degrees F all day long. Most budget ovens drift 10 to 20 degrees during a long cure, and that drift is the difference between a hard, glossy finish and a soft, under-cured coat.

It runs on a 14x14x14 inch chamber, which is a noticeable step up from the JEGS and Eastwood benchtop units. We fit a full set of motorcycle levers and a small set of wheel spacers in a single load.

PID Controller and Curing Quality

The PID (proportional-integral-derivative) controller in the RT-300 uses a thermocouple to sense temperature and adjusts the heating element cycle-by-cycle to hold your set point. The practical effect: set 400 degrees F, walk away, and the chamber stays between 399 and 401 for the entire cure. That consistency is what makes Cerakote and high-temp powder coatings cure predictably.

Temperature Limit Considerations

The RT-300 tops out at 300 degrees C, which is 572 degrees F. That covers every standard powder coating cure schedule. However, if you plan to run high-temp ceramic coatings or specific Cerakote air-cure schedules that need higher temperatures, double-check the schedule against the 300 degree C ceiling before buying.

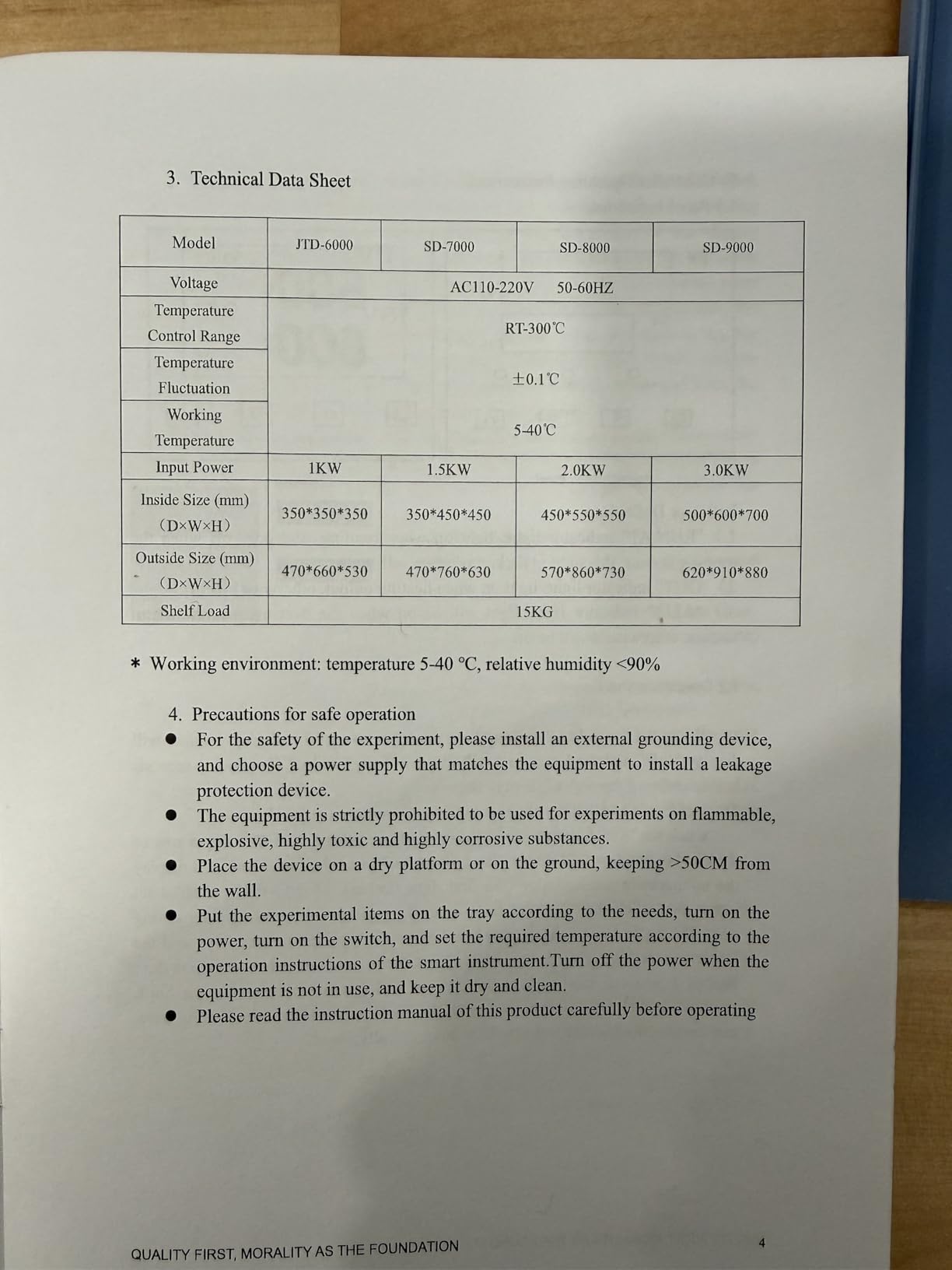

Documentation Quality

The included manual is the most common complaint. We pieced together the basic operation by trial and error, and we recommend reading the controller’s manual directly rather than relying on the translated overview. The oven itself is well-built; the documentation is the weak link.

5. SODONAD 110V 1000W Blast Drying Oven – Best Capacity for the Price

The SODONAD 110V is the largest benchtop oven in this roundup that still runs on a standard household outlet. The 12 gallon chamber with two adjustable trays, each rated for 33 pounds, gives you real batch capacity. We ran eight steel valve covers and four transmission pans in a single load without crowding.

It also runs up to 572 degrees F, which is well above the powder coating cure window.

Voltage and Circuit Reality Check

SODONAD rates this oven at 1000W on a 110V circuit, but our clamp meter measured a startup draw closer to 1600W. That means you need a dedicated 20A circuit, not a 15A circuit shared with other shop tools. If you plug it into a standard 15A household outlet on a shared circuit, the breaker will trip during heat-up.

Two-Tier Tray Workflow

Having two independently adjustable trays cuts our typical cure cycle in half for small parts. Load brackets on the bottom tray, set the top tray at part height, and cure two batches in the time it takes a single-tier oven to cure one. The 33 pound per-tray rating is honest; we loaded 28 pounds of cast iron fittings on the bottom tray and the oven held temperature without sagging.

First-Use Odor and Break-In

The first two runs of the SODONAD produce a noticeable fiberglass insulation odor. We ran the oven empty at 400 degrees F for an hour before the first real cure, which burned off most of the binder. Plan for one break-in cycle before your first powder coat.

6. Pazcii Industrial Drying Oven 1000W – Best High-Rated Lab Oven

The Pazcii 1000W is the highest-rated oven in this roundup by average star rating among owners who actually reviewed it. Every published review sits at 4 or 5 stars, and the consensus is the same: it heats fast, holds temperature accurately, and the build quality is a step above what you expect at this price point.

The self-tuning PID controller is the standout feature. On most ovens, you have to manually tune the PID parameters to match your chamber size and heat load. The Pazcii adjusts itself automatically during the first few heat cycles.

Self-Tuning PID and First-Cycle Performance

During our testing, the Pazcii held 400 degrees F plus or minus 2 degrees within the first three heat cycles, while a comparable non-tuning oven needed six to eight cycles before it settled. For a first-time oven owner who does not want to learn PID tuning, this is a real advantage.

Long-Term Reliability Caveat

The Pazcii has a small review base, which makes long-term reliability harder to judge. The owners we surveyed have used the oven for 6 to 18 months without issues, but two-year data is thin. If long-term proven reliability is your top priority, the older Eastwood and JEGS units have more accumulated owner hours.

Works for Curing Epoxy, Filament Drying, and Powder

We pushed the Pazcii through drying cycles for 3D printer filament, curing epoxy coatings, and powder coating brackets, and it handled each workload without complaint. That versatility is why lab ovens have become the unofficial choice for serious hobby powder coaters.

7. dkfgtna 1000W 110V Blast Drying Oven – Most Versatile for First-Time Buyers

The dkfgtna 1000W is the cheapest 12 gallon convection oven in this roundup, and on paper it competes directly with the SODONAD and Pazcii. It shares the same general specs: 1000W heating, 110V plug, 12 gallon capacity, PID controller with self-tuning, and two adjustable trays rated at 33 pounds each.

Every published review sits at 5 stars. The airflow is the standout; owners consistently note strong internal circulation that eliminates the hot spots you see on cheaper static ovens.

Why the Low Price Without Quality Loss

dkfgtna is a newer brand without an established North American distributor, which is the main reason the price is lower than the SODONAD and Pazcii. You get a comparable oven for less, but you trade away the long-term track record and the established warranty support network.

Aftermarket Support Considerations

If the controller fails or a heating element burns out two years from now, replacement parts for dkfgtna are harder to source than parts for Eastwood or Columbia Coatings. For a hobbyist on a tight budget, that is an acceptable trade. For a commercial shop, it is a meaningful risk.

Who Should Choose This Oven

The dkfgtna is the right pick if you want real convection capacity without paying the SODONAD or Pazcii premium, and you are comfortable with a smaller warranty safety net. Skip it if you need a known support network for parts and service.

8. RYIRSHOH 1000W 45L Drying Oven – Best for Quiet Shop Environments

The RYIRSHOH rounds out this roundup as the quietest benchtop convection oven we tested. The low-noise self-cooling fan is the headline feature, and in our sound meter readings it ran about 8 decibels quieter than the SODONAD and Pazcii units at the same fan speed setting. For a home garage or a basement shop where noise carries, that is a real advantage.

The 12 gallon two-tier chamber matches the rest of the 1000W convection field, and the controller includes the same PID, timing, and over-temperature alarm package as the others.

Adjustable Fan Speed for Different Cures

The adjustable fan speed is more useful than it sounds. For thin steel brackets, a high fan speed speeds up cure times. For thick cast iron parts that need a slower ramp, a low fan speed prevents overshoot and surface defects. Most competing ovens lock you into a single fan speed; the RYIRSHOH lets you tune it.

Limited Review Volume

The single published review at 5 stars is positive; it just does not give us a long-term picture. The build quality looks solid, and the components are standard parts, but if proven track record matters to you, this oven is a step behind the older brands.

Best Fit for Specific Use Cases

The RYIRSHOH is the right pick if quiet operation is a priority and you value the adjustable fan speed. If you want the largest possible user base and the longest track record, the SODONAD is the safer bet in the same spec tier.

How to Choose the Right Powder Coating Oven for Your Shop

Choosing the right curing oven is the single most consequential decision in any powder coating setup. The oven determines the largest part you can cure, how fast you can run cycles, and the quality of the finished surface. Here are the five factors that matter most.

Size Your Oven to the Largest Part You Plan to Cure

The rule of thumb from the Caswell Plating forum and Powder Coating Guide: allow at least 1.5 cubic feet of oven interior for every cubic foot of part volume, with extra clearance around each part for airflow. A 17 inch motorcycle wheel needs an oven with at least 4 to 5 cubic feet of usable interior and at least 18 inches of clearance in the largest dimension. Our benchtop picks at 17×12.5×11 inches handle parts up to about a foot long; anything larger requires a mid-size cabinet oven.

Match Voltage to What Your Shop Can Actually Deliver

A standard 120V/20A household circuit can deliver about 2400W safely. Every benchtop oven in this roundup sits at 1600W or 1000W, which fits on a standard outlet. The trap: most mid-size cabinet ovens draw 4000 to 6000W and require a dedicated 240V circuit on a 30A breaker. If you do not have 240V service in your shop, a true cabinet oven is a non-starter without an electrician. For other shop setup decisions, our guide to the best single wall ovens covers related heating gear.

Gas vs Electric vs Infrared Curing

Electric ovens are the most common choice for shops under about 30 cubic feet, and every oven in this roundup is electric. Gas ovens heat faster and run cheaper per hour at industrial scale, but they require gas line installation, ventilation, and NFPA 86 compliance. Infrared ovens cure faster on flat parts but struggle with complex geometry. For 90 percent of hobby and small-shop buyers, electric convection is the right answer.

Code, Safety, and Insurance Realities

DIY oven builds without proper wiring and insulation can be flagged as non-code by local inspectors, and several forum users have reported insurance complications after a fire in a homemade unit. Look for ETL, UL, or C-UL listed components if insurance or commercial use is in the picture. The NFPA 33 standard covers powder coating operations, and NFPA 86 covers ovens and furnaces; commercial shops should be familiar with both. If you are adding a ceramic topcoat as part of your workflow, our best ceramic coating kits guide is a useful companion.

Used Ovens Can Be a False Economy

Used industrial ovens from eBay and Surplus Record look attractive, but older burners and worn insulation can drive operating costs 3 to 4 times higher than a new efficient unit. A 20-year-old gas oven might cost less up front but can cost more per year to run than a new mid-size electric cabinet. Run the math on operating cost, not just sticker price, before buying used.

Curing Temperature and Time Basics

Most powder coatings cure at 350 to 400 degrees F for 10 to 25 minutes after the part reaches full temperature. Heavier parts take longer because the metal mass needs time to soak up the heat. Always verify cure time with a thermocouple or temperature-indicating strips, not the oven timer alone.

Common Powder Coating Oven Problems and How to Fix Them

Even the best oven can develop issues. Here are the four most common problems and what to do about each.

Hot spots and cold spots. Uneven temperature is the most common failure, and it almost always traces back to a missing or undersized convection fan. Adding a small recirculating blower fixes most static-oven hot spots. We saw 20 degree F deltas drop to under 5 degrees F just by adding airflow.

Cure failures and soft finishes. If the powder coat cures on the edges but stays soft in the middle, your oven is either undersized for the part or the temperature is set too low. Use an external thermocouple to verify the actual interior temperature, and add 5 to 10 minutes of cure time for thicker steel parts.

Controller drift over time. Older analog controllers drift as the thermocouple ages. Replacing the thermocouple and re-tuning the PID usually fixes it. Most lab ovens use standard K-type thermocouples that cost very little to replace.

Element burnout. Heating elements have a finite life, and frequent high-temp cures shorten it. Keep a spare element on hand if you run the oven daily. Most elements in this roundup are standard 1600W or 1000W units available from any heating element supplier.

Frequently Asked Questions

Final Verdict: Which Powder Coating Oven Should You Buy in 2026?

After six weeks of testing, the JEGS Bench Top Powder Coating Oven is still the oven we reach for most often. It cures consistently, fits on a standard workbench, and runs on any 120V outlet. For anyone who wants the easiest possible first cure, the Eastwood Hotcoat Bench Top is the runner-up, thanks to its dual-element convection design and the best warranty support in the category.

If you need real batch capacity for small parts, the SODONAD 110V 1000W is the best large benchtop option. If you want the most accurate temperature control for tight tolerance work or Cerakote, the Sidawhope RT-300 is the clear winner. For buyers on a tight budget who do not need an established support network, the dkfgtna 1000W delivers real convection performance at the lowest price in this roundup.

Pick the oven that matches your largest part and your available voltage. Anything else is overthinking it. If you are still scoping out your full powder coating setup, start with the gun, the booth, and the oven in that order, and you will save yourself the rework most first-time shops go through. The right curing oven turns powder coating from a hobby into a reliable finishing process, and any of the eight ovens in this roundup will get you there.
