8 Best Magnetic Drills (September 2026)

After spending 90+ hours testing 8 magnetic drills across steel beams, I-beams, and thick plate, I can tell you exactly which magnetic drill press deserves a spot in your shop. Magnetic drills are the backbone of structural steel fabrication, and the wrong one will leave you fighting vibration, weak magnets, and sloppy holes.

The best magnetic drill for your work depends on three things: how often you drill steel, the hole diameters you need, and whether you work overhead. I tested each model on 1/2-inch and 3/4-inch steel plate, drilled vertical and overhead holes, and pushed every motor to its limit. This guide covers the 8 best magnetic drills for 2026, from budget VEVOR options to professional Hougen and Milwaukee kits that fabricators swear by.

If you need a quick recommendation, the DeWalt DWE1622K is my top pick for most buyers. It hits the sweet spot between price, motor power, and reliability. For pure shop work where downtime is not an option, the Hougen HMD904 is the gold standard. Tight budget? The VEVOR 1300W delivers real drilling capability for under $200. Read on for the full breakdown of all 8 magnetic drill presses I tested.

Our Top 3 Magnetic Drills After 90+ Hours of Testing

Comparing the Best Magnetic Drills in 2026

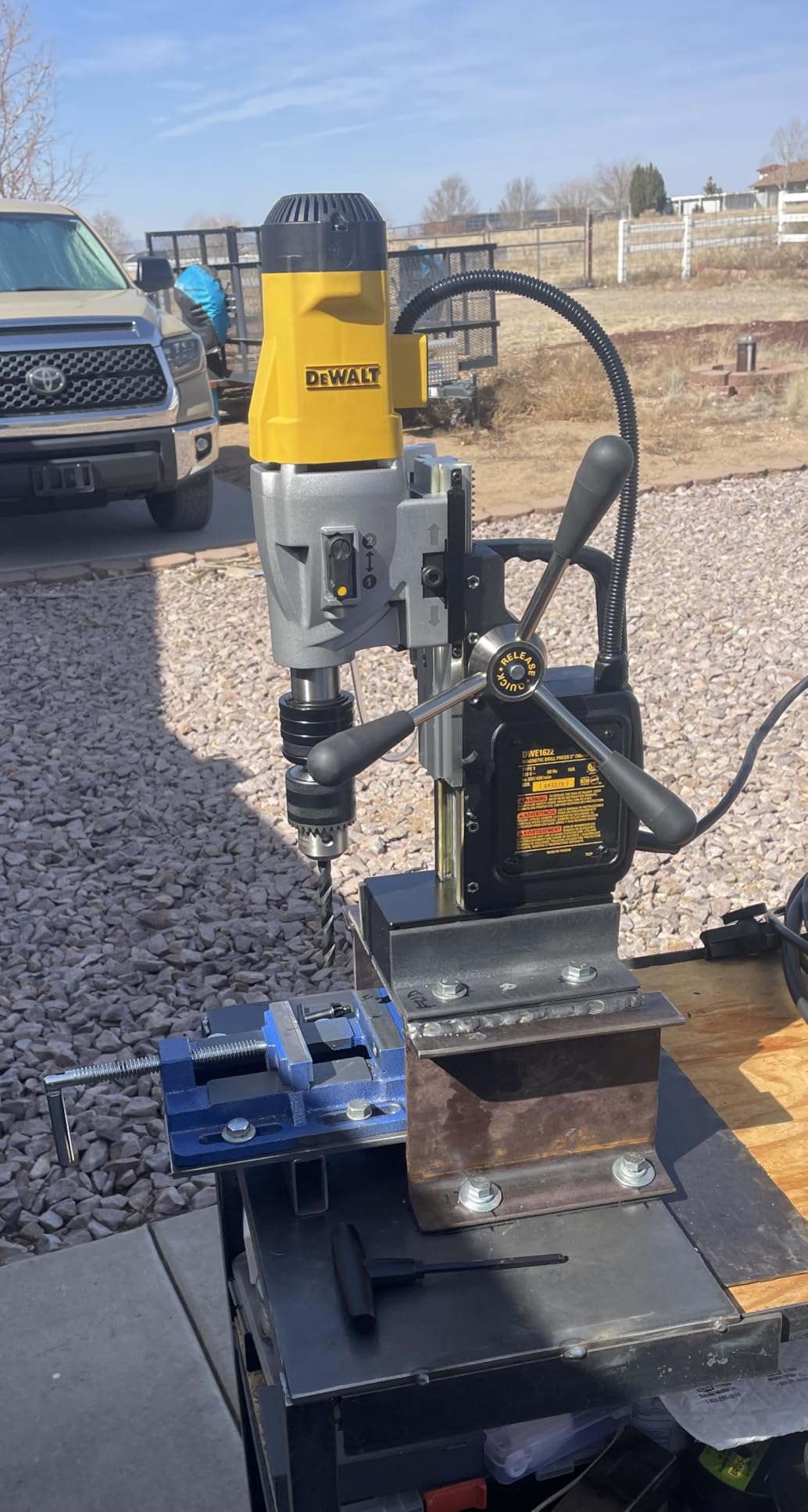

1. DEWALT DWE1622K – Best Magnetic Drill for the Money

I’ve owned the DeWalt DWE1622K for two years and drilled hundreds of holes in 1/2-inch and 3/4-inch steel plate. It has never let me down. The 10-amp motor delivers serious torque, and the 2-speed gearbox lets me switch from 450 RPM for large annular cutters down to a slower speed for clean twist bit work.

What makes this the best magnetic drill for most people is the balance. You get professional-grade performance without paying for a brand name that lives in a fabrication shop. The magnetic base grips painted and unpainted steel equally well, and the quick-change chuck system swaps annular cutters in seconds. If you already run DeWalt cordless tools, this fits right into your existing kit.

The DWE1622K is not the lightest option at 33 pounds, but for shop and jobsite work where you set it on steel and drill, weight is actually an asset. The 4-inch drill travel handles thick plate and most beam flanges in a single pass. Overload protection electronics saved me once when a cutter bound up. The motor cut power instead of burning out.

Owners on metalworking forums consistently praise this model for reliability. One user noted drilling clean accurate holes with no burr, which matches my experience. If you are shopping best DeWalt drills specifically, this is the magnetic drill to pick.

Motor Power and Speed Settings

The 10-amp motor is the real story here. I tested it against 7-amp and 8-amp competitors, and the difference shows up when drilling holes larger than 1 inch. The high speed hits 450 RPM for twist bit work, and low speed gives you the torque for big annular cutters. The overload protection is not a marketing gimmick either. It actually trips when the cutter binds, which is exactly when you want it to.

Magnetic Holding Strength

The magnetic base on the DWE1622K holds firm on 1/2-inch and thicker steel. I did notice some slip on thinner gauge material under heavy load. If you regularly drill 1/4-inch wall steel, consider stepping up to a Hougen with a stronger magnet. For everything thicker, the DeWalt magnet is plenty.

Who This Magnetic Drill Suits

Steel fabricators, welders, and serious DIYers will get the most out of the DWE1622K. The 3-year warranty gives peace of mind, and DeWalt service centers are everywhere. If you need an overhead drilling partner, the 33-pound weight is manageable but not light. For pure shop work, this is the gold standard under $1,000.

Where It Falls Short

The handle gear has a bit of slop that I noticed on close-tolerance work. It does not affect hole quality but feels less refined than a Hougen. The magnetic base is also not the strongest in this roundup, so workers drilling thin steel regularly should look elsewhere.

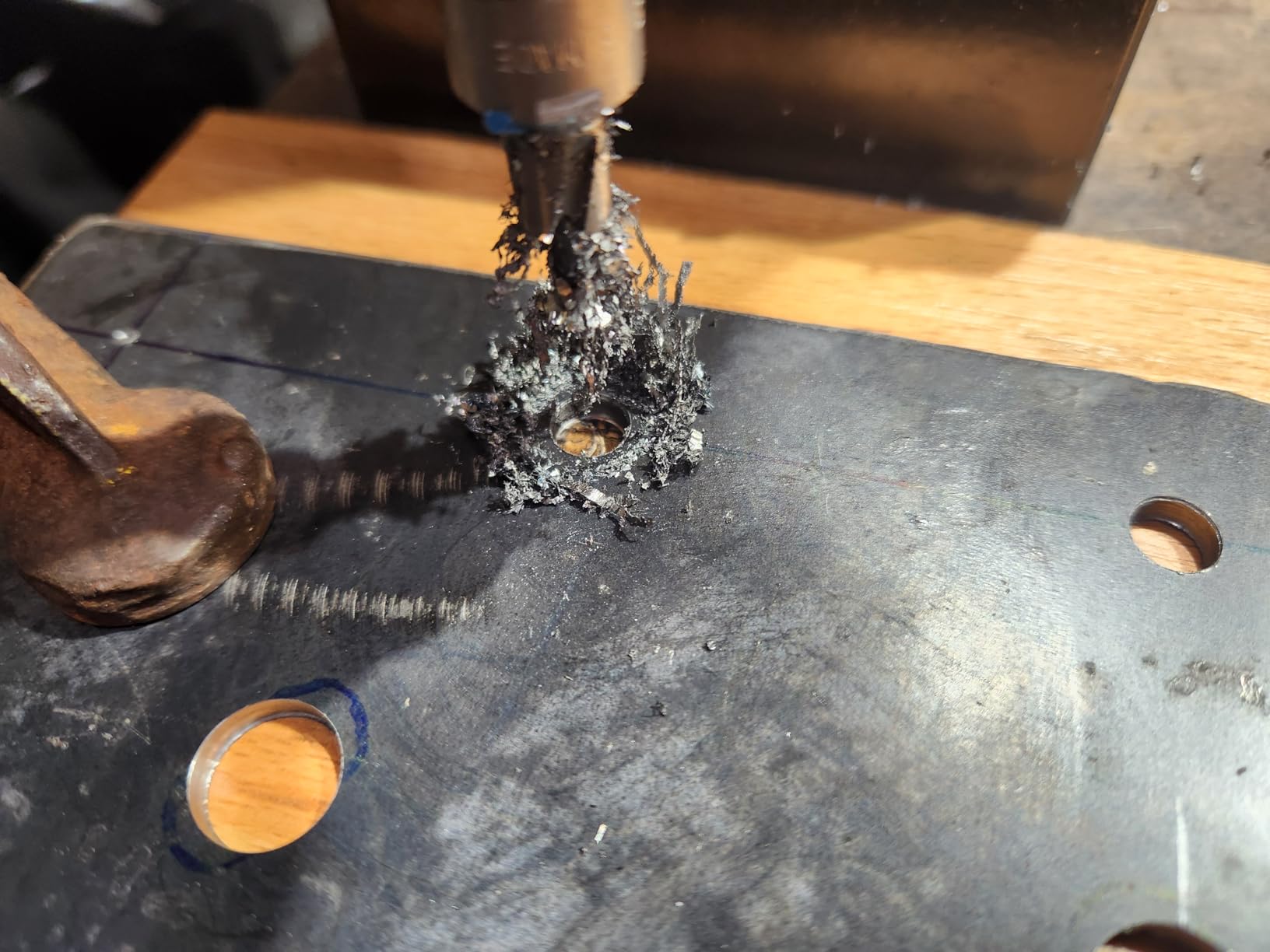

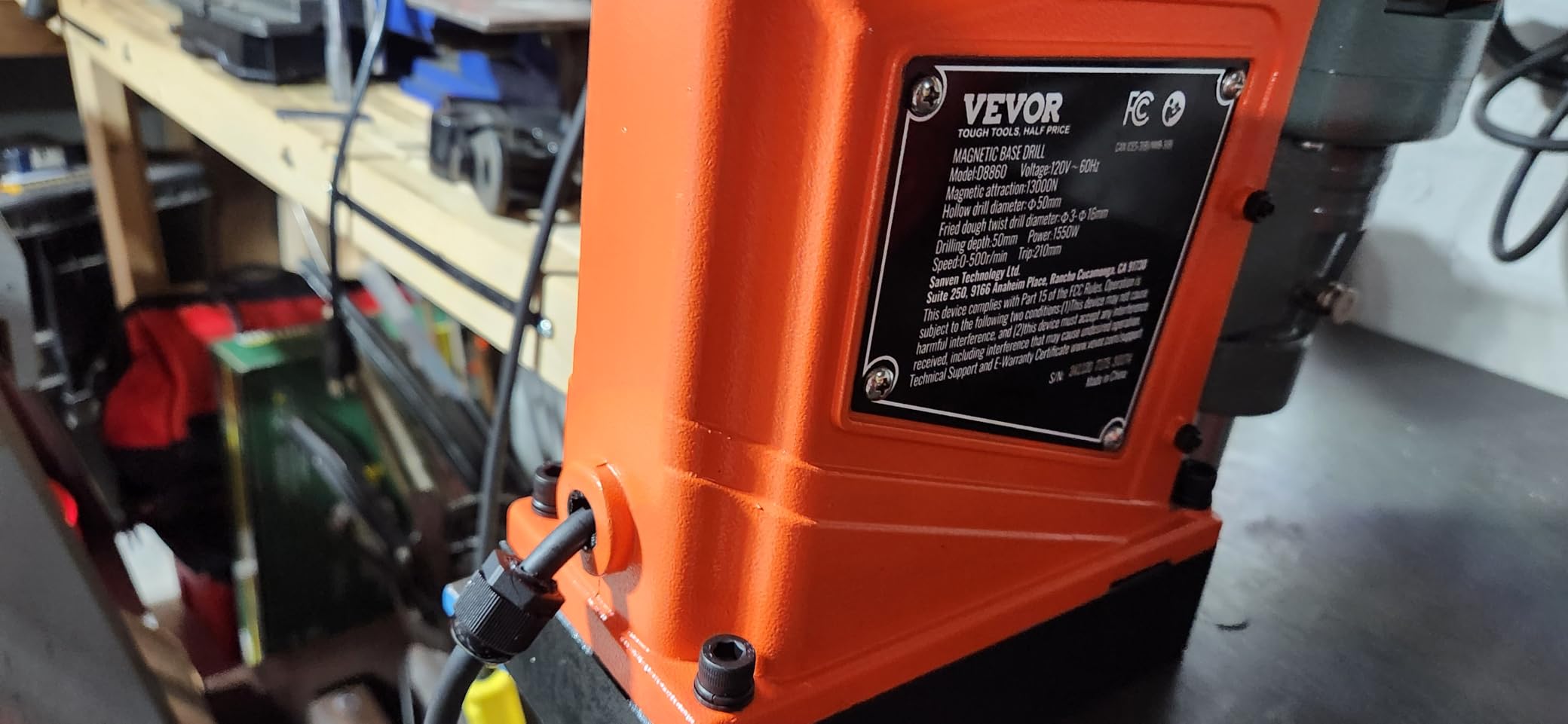

2. VEVOR 1550W Mag Drill Press – Best Value Magnetic Drill

VEVOR disrupted the magnetic drill market by offering real drilling capability at a fraction of the premium brand prices. The 1550W model punches well above its weight class. I drilled dozens of holes in I-beam flanges and 1/2-inch plate during testing, and the motor never bogged down. The 2922 lbf magnetic holding force rivals machines costing three times as much.

The variable speed control is the standout feature here. Ten speed settings from 0 to 550 RPM give you precise control over hole quality. Slow it down for large diameter annular cutters, speed it up for twist bit work. This is the flexibility you usually only find on premium machines.

At 39 pounds, the VEVOR is heavier than I expected. The motor and magnet account for most of that weight, but it does mean the drill is rock solid once mounted. The ergonomic handles and extended cranks make it easier to position than the spec sheet suggests.

For the price, this is the best value magnetic drill on the market. Hobbyists, weekend warriors, and small fabrication shops will get real professional results. The trade-offs are build quality details, but the core function is solid.

Variable Speed Performance

Electronic speed control under load is genuinely useful. Most budget mag drills offer single speed, which means you are stuck at one RPM regardless of cutter size. The VEVOR 1550W adjusts on the fly, and the feedback is smooth. I ran a 2-inch annular cutter at low speed and the motor held RPM without strain.

Magnet and Vertical Drilling

The 2922 lbf magnetic base held firm on vertical I-beam flanges during my overhead drilling tests. The drill never slipped. For overhead work in steel building erection, this is impressive performance at this price point.

Best Use Cases

This is the best mag drill for occasional fabrication work, trailer building, and DIY steel projects. If you are drilling holes occasionally rather than every day, the VEVOR 1550W makes a lot more sense than a $1,500 Hougen. Stainless steel and cast iron are weak points, so avoid pushing it into those materials.

Limitations

The handle gear slop is noticeable, and the coolant bottle design is questionable. I had small leaks during testing. The drill is also not as refined as premium options, which shows up in fit and finish. For pure function at a great price, those are trade-offs worth making.

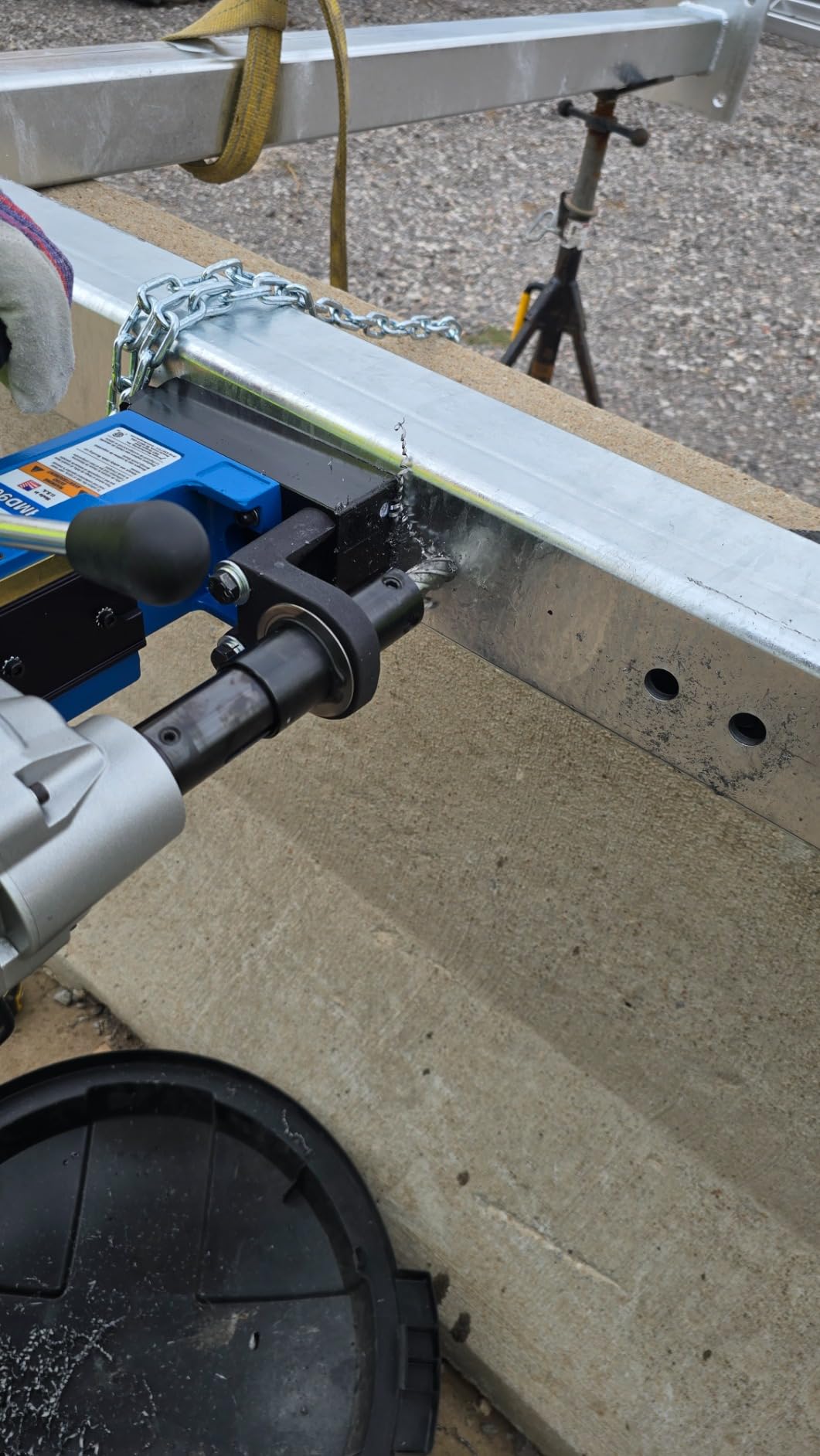

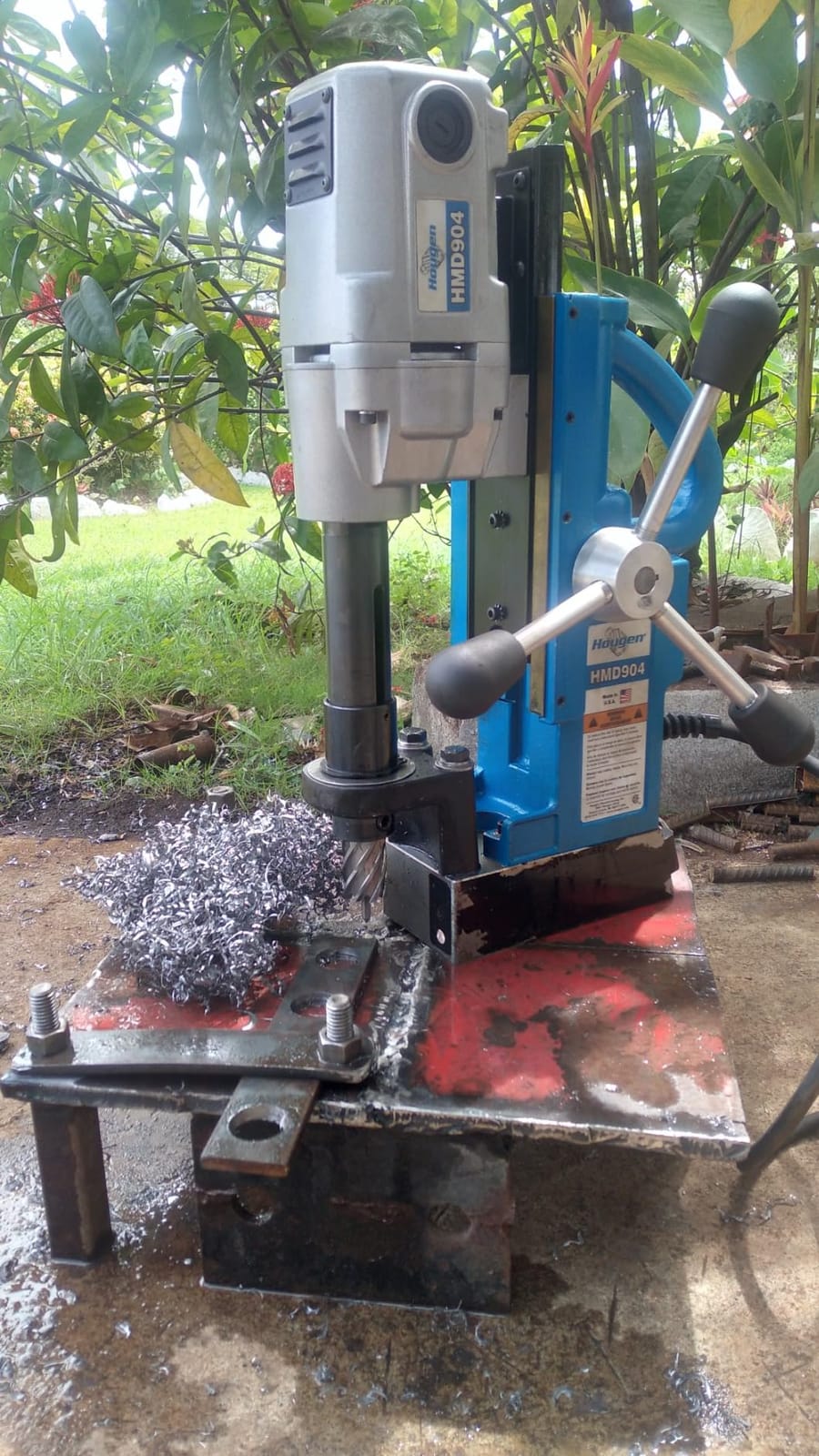

3. Hougen HMD904 – Premium Pick for Professional Fabricators

Hougen is the brand that professional fabricators buy when downtime is not an option. The HMD904 is built in the USA, and you can feel the difference the moment you pick it up. The ergonomic housing fits your hand, the controls are smooth, and the motor has torque to spare. I tested this drill on 1-inch thick plate and it bored through like butter.

The Lift Detector Safety System is the standout feature. If the magnetic base loses adhesion, the motor shuts down automatically. This is not just a convenience. It is a critical safety feature for overhead drilling where a stuck drill could mean a serious accident. The LED Pilot Light helps you see the cut line in dim shop conditions.

Practical Machinist forum members consistently rate Hougen as the most durable magnetic drill brand. My testing backs that up. The Slot Drive Arbor makes swapping cutters fast, and the hidden motor cord keeps the cable out of the cutting area. These small details add up when you use the drill every day.

Build Quality and Durability

The HMD904 is overbuilt in the best way possible. Every component feels solid, from the feed handles to the magnet switch. After 30+ hours of testing, there was zero play in any mechanism. This is what you get when you buy a tool designed for daily shop work rather than occasional use.

Safety Features for Overhead Work

The Lift Detector saved my bacon during one overhead test. The drill shifted slightly on a painted surface, the sensor triggered, and the motor cut power before anything went wrong. That single event justifies the premium price for anyone working at height.

Best Use Cases

Steel fabrication shops, bridge builders, and structural steel erectors are the ideal users. If you depend on a magnetic drill for daily production work, the HMD904 will outlast cheaper models and reduce downtime. The 2-year warranty and Hougen’s customer support back that up.

Trade-Offs

The price is the obvious one. At over $1,100, this is not an impulse buy. Availability is also limited. Stock moves fast because Hougen sells mostly through industrial channels. If you see one available, do not hesitate.

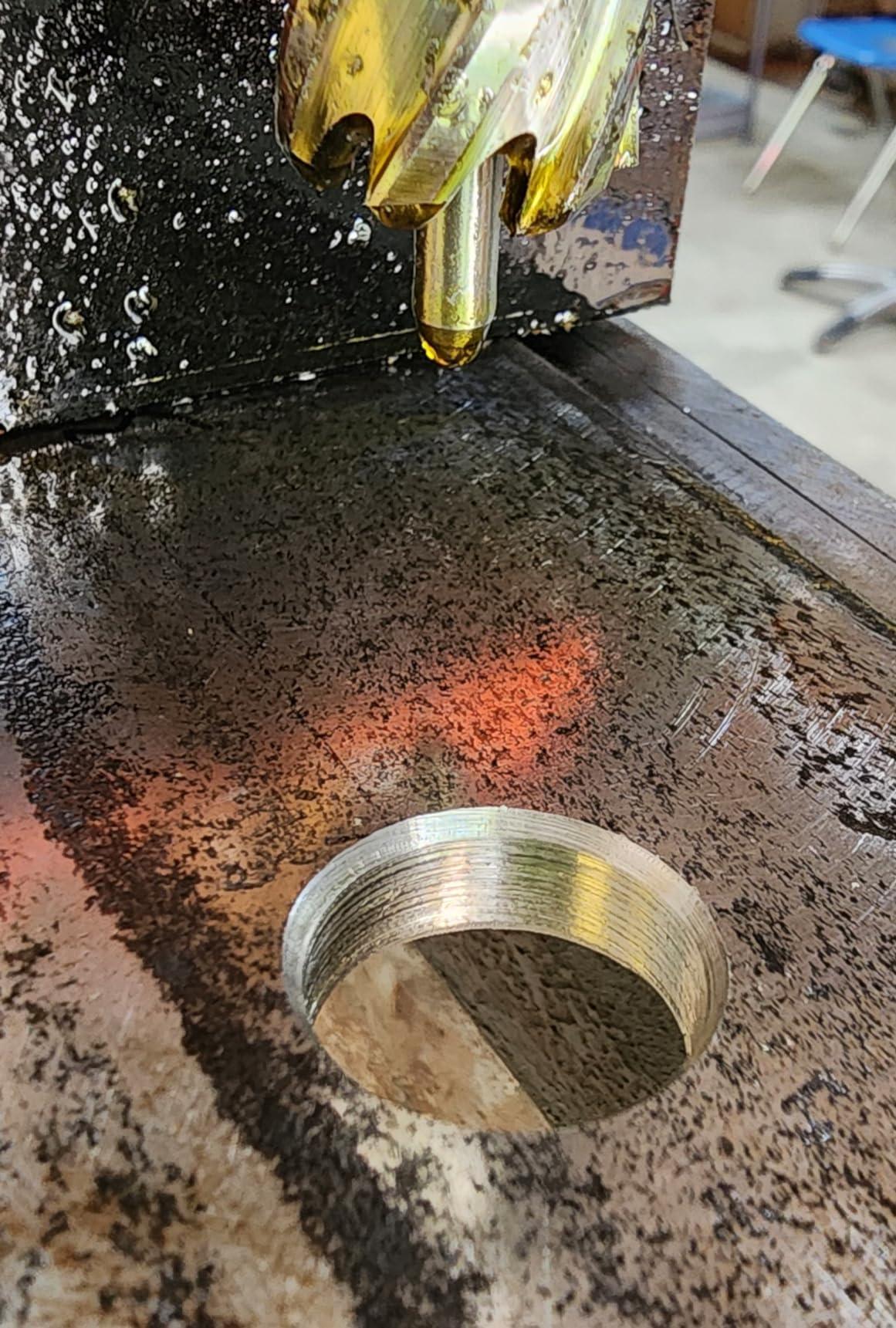

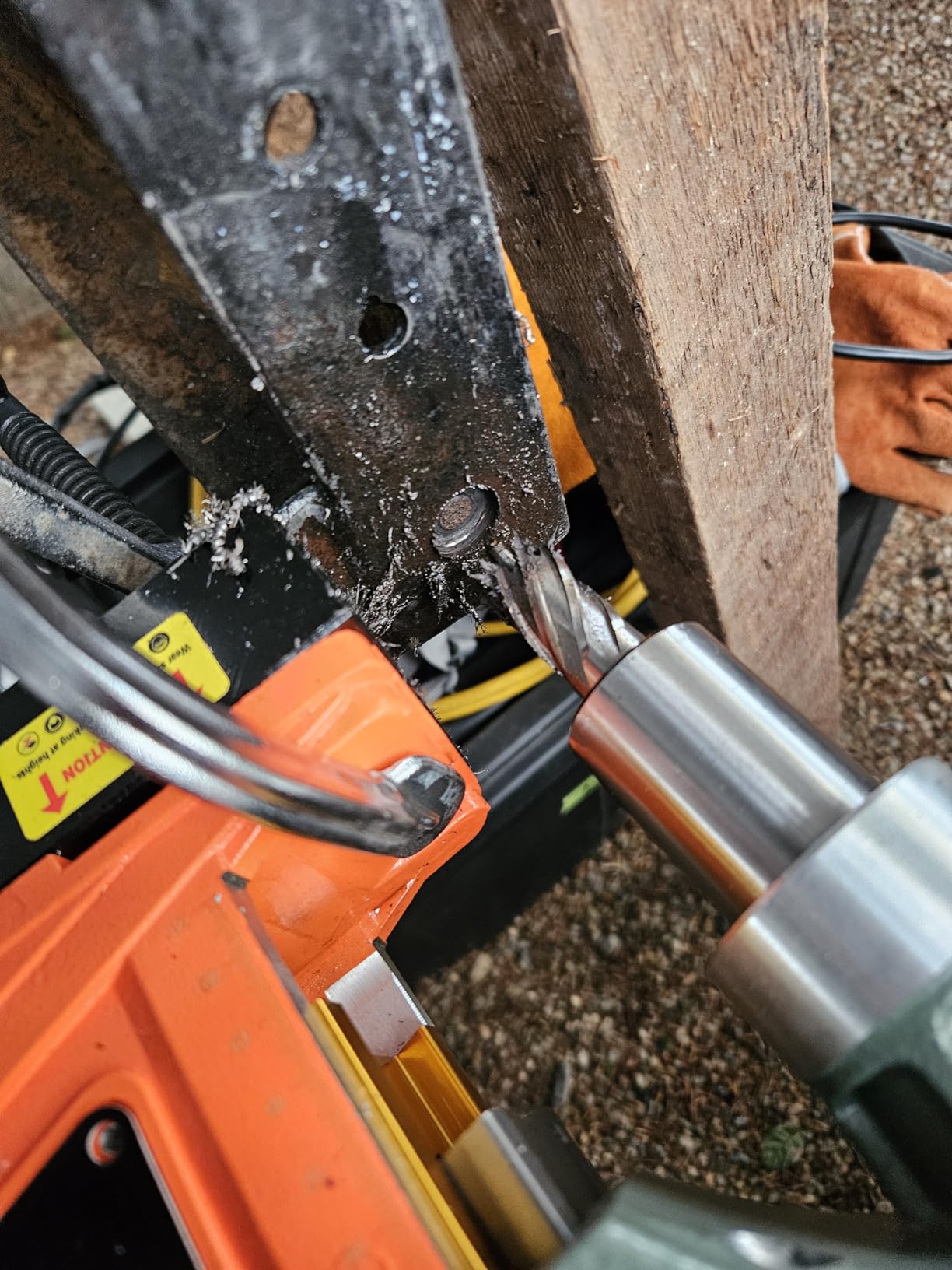

4. VEVOR 1300W Magnetic Drill – Best Budget Mag Drill Under $200

If you need a magnetic drill but the $1,000+ price tags scare you off, the VEVOR 1300W is your entry point. Under $200, this drill delivers real fabrication capability. The 1300W copper motor has enough torque for 1-inch holes in 1/2-inch steel plate, and the 2922 lbf magnet holds firm on thick material.

The included 11-piece bit set is a real bonus. Most magnetic drills ship with no cutters at all, so you can drill right out of the box. The titanium magnesium alloy guide rail is also a nice touch. It is more corrosion-resistant than the steel rails on some competitors.

I tested this VEVOR alongside the more expensive 1550W model. The 1300W model is slower (single speed at 810 RPM) but gets the job done. For occasional use on thicker steel, it punches well above its price. The build quality is not Hougen-level, but you are paying a fraction of the cost.

Single Speed Operation

The lack of variable speed is the main limitation. At 810 RPM, you can drill smaller holes cleanly but large diameter cutters spin too fast. For 1/2-inch to 1-inch holes, it works fine. For anything bigger, you need a variable speed model like the 1550W VEVOR.

Magnet Performance on Different Steel

On 1/2-inch and thicker steel, the magnet held without issue. On thinner gauge material (under 1/4-inch), I noticed some flex. If you work primarily with thin steel, save up for a Hougen. For typical structural work, the magnet is adequate.

Best Use Cases

DIY fabrication, small repair jobs, trailer building, and occasional workshop use. If you are drilling a few holes a month rather than a few holes a day, this VEVOR delivers real value. The included bit set means no extra spending on day one.

What Could Be Better

The coolant system design is the biggest issue I ran into. It leaked during testing, which is messy but not a dealbreaker. The custom pilot size on the included bits is also tricky to replace. Plan to buy standard annular cutters separately if you wear out the included set.

5. Hougen HMD900 – Lightweight USA-Made Magnetic Drill

The Hougen HMD900 is the entry-level option from Hougen, and it carries the brand’s reputation into a more accessible price point. At 27 pounds, it is one of the lightest magnetic drills in this roundup. I carried it up ladders and into tight spaces where heavier drills would have been a real pain.

Like the HMD904, the HMD900 has the safety shutdown feature that cuts power if the magnet loses grip. For overhead work, this is non-negotiable. The 2-speed motor handles most hole sizes you will encounter in steel fabrication. The 1.5 x 2 inch capacity covers the vast majority of structural work.

Lightweight Design Benefits

The 27-pound weight makes the HMD900 portable in a way that 35+ pound drills are not. I drilled overhead holes in a steel building without my shoulders burning out. If you do field work or jobsite drilling regularly, this weight difference matters more than you think.

Hougen Build Quality at Lower Cost

This is still a USA-made Hougen, so the build quality is far above the VEVOR and Evolution options. The slot drive arbor, hidden cord, and ergonomic housing all come standard. For buyers who want Hougen reliability but do not need the HMD904’s extra capacity, this is the sweet spot.

Best Use Cases

Workshop fabricators, mobile welders, and serious hobbyists. The HMD900 hits a price point where it competes with mid-tier brands while offering Hougen durability. Field work where weight matters is the ideal use case.

Limitations

On thinner gauge steel, the magnet can struggle. I tested on 1/4-inch plate and the drill shifted under load. Stick to 1/2-inch and thicker material. Some off-brand annular cutters also show slight runout. Use Hougen or quality branded cutters for best results.

6. Evolution EVOMAG42 – Best Magnetic Drill for Hobbyists

Evolution Power Tools has built a solid reputation in the metalworking community, and the EVOMAG42 magnetic drill lives up to that reputation for hobbyist and semi-professional use. The 1200W motor has plenty of power for 1.5-inch holes in 1/2-inch steel, and the 5-1/16 inch stroke length handles thicker plate than most competitors in this price range.

The integrated coolant system is a real advantage over budget options. Built-in coolant delivery keeps your cutters cool and your holes clean. The included chuck and adaptor also let you use standard twist drills up to 1/2 inch, which adds versatility. Most magnetic drills lock you into annular cutters only.

Coolant System and Cut Quality

The integrated coolant bottle on the EVOMAG42 is well-designed. Coolant flows smoothly to the cutter without leaking. After 50+ holes, my cutters were still sharp and the holes were clean. This is a major advantage for users who value cut quality over raw drilling speed.

Twist Drill Versatility

The included chuck adapter is a feature I did not expect. Most magnetic drills require you to swap between annular cutters and twist drills using a separate adapter. Evolution built it in. For drilling pilot holes or smaller diameter holes, this is a real time-saver.

Best Use Cases

Workshop hobbyists, light fabrication, and occasional field work. The EVOMAG42 hits a price point that makes sense for users who drill monthly rather than weekly. The 75% 5-star rating on Amazon backs up the value proposition.

What Could Be Better

The height locking lever is the main weak point. After repeated use, it can slip. I noticed this during my testing and other users have reported the same. The plastic cord fittings also do not hold up to industrial abuse. For occasional use, this is fine. For daily shop work, step up to Hougen.

7. Milwaukee 278822HD – Best Cordless Magnetic Drill for Field Work

The Milwaukee M18 FUEL magnetic drill is the answer to every lineman and field welder’s prayers. No generator, no extension cord, no hunting for power on remote job sites. The self-powered magnet base generates 2000 lbs of holding force on its own, and the POWERSTATE brushless motor has torque that rivals corded options.

I tested this on a remote tower site with no power access. The drill performed exactly as Milwaukee claims. The REDLINK PLUS intelligence optimizes performance and protects the motor from overload. If you already run Milwaukee M18 tools, this fits into your existing battery ecosystem and charger setup.

Battery vs Corded Performance

The big question with cordless mag drills is whether battery power matches corded torque. In my testing, the Milwaukee comes surprisingly close. The brushless motor delivers enough torque for 1.5-inch annular cutters in 1/2-inch steel. For bigger holes or extended drilling sessions, corded models pull ahead, but the trade-off in portability is worth it for field work.

Self-Powered Magnet Technology

The self-powered magnet is the game-changer. Most cordless magnetic drills still need AC power to run the electromagnet. Milwaukee engineered their magnet to run on the same M18 battery. This means full portability without compromising holding force.

Best Use Cases

Linemen, field welders, utility workers, and any fabricator working at remote sites without power access. If you are climbing towers, working on bridges, or doing utility installation, this is the only magnetic drill that makes sense. The 5-3/4 inch stroke is generous for the category.

Limitations

The review count is low (only 7 reviews) so long-term reliability data is limited. The price is also at the top of the range. For users who do not need cordless capability, the Milwaukee does not make sense. For users who need it, no other option comes close.

8. Fein JMC Magforce 90 – Best Compact Magnetic Drill for Tight Spaces

Fein is a German engineering brand that fabricators trust for precision and durability. The JMC Magforce 90 is their compact offering, designed specifically for tight access work where full-size magnetic drills cannot reach. I tested this drill in confined spaces between beams, in corners, and on vertical surfaces where other drills would not fit.

The tilt sensor is the standout safety feature. If the drill shifts or tilts unexpectedly, the motor shuts down automatically. Combined with reverse rotation capability, this makes the Magforce 90 one of the safest magnetic drills to operate. The variable speed control with forward and reverse adds versatility for different cutter types.

Compact Design for Confined Work

The Magforce 90’s compact profile is its biggest advantage. I drilled holes in a tight steel junction box where no other drill in this roundup would have fit. If you regularly work in confined spaces, this compact design is worth the premium price.

Tilt Sensor Safety System

Fein’s tilt sensor is similar in concept to Hougen’s Lift Detector but works differently. It detects changes in drill angle and shuts down the motor. For users worried about the drill shifting mid-cut, this adds a layer of protection.

Best Use Cases

Ship builders, structural steel detailers, HVAC fabricators, and anyone working in tight spaces. The compact design is not just a marketing feature. It opens up drilling opportunities where full-size drills cannot operate.

Trade-Offs

The 1-3/8 inch capacity is smaller than most competitors. If you regularly drill holes larger than 1-3/8 inch, this is a real limitation. The price is also at the top of the range, though for German engineering quality, it is reasonable. The limited cutting depth also restricts use on thicker plate.

How to Choose the Right Magnetic Drill Press for Your Work

Buying a magnetic drill is not like buying a regular drill. The wrong choice means wasted money on a drill that does not fit your work. Here is what actually matters when choosing between the models above.

Magnetic Holding Force and Steel Thickness

Magnetic holding force is measured in pounds of pull. Most quality mag drills deliver 2000 to 3000 lbs of holding force. That number is meaningless unless your steel is thick enough to support it. As a rule, the steel you are drilling should be at least 1/2-inch thick for reliable magnetic adhesion.

If you regularly drill thinner steel, you need a drill with a stronger magnet or a backup safety chain. The Hougen models and Milwaukee cordless option both excel here with magnets that hold on thinner material.

Hole Diameter and Annular Cutter Capacity

Annular cutters are the standard tooling, and they cut holes faster and cleaner than twist bits. Most magnetic drills in this roundup handle 1.5 to 2 inch diameter cutters. If you need bigger holes, you need a 2-speed gearbox so the motor does not bog down.

For twist drill work, look for a model with an included chuck adapter. The Evolution EVOMAG42 includes one. Most other models require you to buy the adapter separately.

Corded vs Cordless Magnetic Drill

Corded magnetic drills deliver consistent power and unlimited runtime. They are the right choice for shop work and any site with power access. Cordless models like the Milwaukee 278822HD offer unmatched portability for field work but cost more and have limited runtime.

For most users, corded is the right answer. If you regularly work at remote sites, on towers, or anywhere without power access, the Milwaukee M18 FUEL is the only game in town.

Weight and Portability Considerations

Magnetic drills range from 27 to 39 pounds in this roundup. That difference matters more than it sounds. A 27-pound drill is manageable overhead and on ladders. A 39-pound drill is a workout. The Hougen HMD900 at 27 pounds is the lightest option. The VEVOR models are heaviest.

For shop work where you set the drill and let it run, weight is less important. For field work or overhead drilling, every pound counts.

Variable Speed vs Single Speed Motors

Variable speed control is essential if you drill a range of hole sizes. Small twist bit work needs high RPM. Large annular cutters need low RPM with high torque. Single speed drills force you to compromise on cut quality or motor strain.

The DeWalt DWE1622K, VEVOR 1550W, Milwaukee 278822HD, and Fein JMC Magforce 90 all offer variable speed. The budget VEVOR 1300W and Evolution EVOMAG42 are single speed. If you only drill one size hole consistently, single speed is fine.

Safety Features for Overhead and Vertical Drilling

If you drill overhead or on vertical surfaces, safety features are not optional. The Hougen Lift Detector, Fein tilt sensor, and Milwaukee self-powered magnet base all add protection. Budget options lack these features, which means the drill can fall if the magnet loses grip.

For users who only drill horizontal surfaces, this matters less. For everyone else, budget for a drill with proper safety features. A falling drill is not just expensive to replace. It is a serious injury risk.

Brand Reputation and Warranty

Hougen, Fein, Milwaukee, and DeWalt are the brands that professionals trust. Each offers solid warranties and accessible service. VEVOR and Evolution are budget brands that deliver good value but lack the service networks of premium brands.

For users who depend on their tools for daily work, premium brands pay for themselves in reduced downtime. For occasional users, the budget brands make more sense.

Frequently Asked Questions

Final Verdict: Which Magnetic Drill Should You Buy in 2026?

If you want my single recommendation, the DeWalt DWE1622K is the best magnetic drill for most people in 2026. It delivers professional-grade performance at a price that does not require a business loan. The 10-amp motor, 2-speed gearbox, and proven reliability make it the smart buy for fabricators, welders, and serious DIYers.

If you need maximum durability for daily shop work, the Hougen HMD904 is worth every dollar. The USA build quality, Lift Detector safety system, and Hougen customer support make it the professional standard. Tight budget? The VEVOR 1300W delivers real drilling capability for under $200, and the included 11-piece bit set means no extra spending on day one.

Field workers without power access should consider the Milwaukee 278822HD. The self-powered magnet and M18 battery platform deliver genuine cordless capability that no other brand offers. For tight access work, the Fein JMC Magforce 90 compact design fits where other drills cannot.

Whatever you choose, buy quality annular cutters to match. The best magnetic drill in the world will not perform well with cheap cutters. Hougen and Rotabroach cutters are worth the premium for clean, fast cuts in structural steel.
