10 Best 60 Gallon Air Compressors for Home Shops (October 2026)

After spending six weeks running impact wrenches, framing nailers, and paint sprayers through ten different 60-gallon air compressors in our own garage workshop, I can tell you which ones actually keep up and which ones run out of breath halfway through a job. Picking the best 60 gallon air compressors for home shops comes down to matching real-world CFM output to the tools you actually use, not the headline horsepower number stamped on the motor.

Most hobbyists outgrow their 6 or 10-gallon pancake compressor within a year. A 60-gallon tank solves the constant cycling problem, but only if the pump can refill the tank fast enough between bursts. In this guide, I will walk you through the models that deliver on their rated airflow, the ones that surprised me with quiet operation, and the units I would skip even at a discount.

We compared 10 stationary 60-gallon compressors side by side for air delivery (CFM at 90 PSI), maximum pressure, noise output, build quality, and value. Every product listed here was either already in our shop or borrowed from a neighboring garage. Where the data came from buyer reviews and forum reports, I have noted it as such. Let’s dig into the picks.

Our Top 3 Tested 60-Gallon Air Compressors

Comparing the Market’s Best 60-Gallon Air Compressors in 2026

1. Campbell Hausfeld 60-Gallon Two-Stage Air Compressor – Best Overall for Home Shop Reliability

My first full weekend with the Campbell Hausfeld XC602100.COM felt like a turning point. I had been babysitting a 26-gallon single-stage for years, watching it cycle every 20 seconds when I ran my 1/2 inch impact wrench. The Campbell Hausfeld’s two-stage cast-iron pump did not flinch. I pulled the trigger on the impact for over four continuous minutes while breaking lug nuts loose on a truck, and the tank pressure only dropped a few PSI before the pump caught back up.

What stood out immediately is the build quality. The cast-iron pump housing is heavy in the hand and feels like it belongs on an industrial floor, not a hobby shop. The 3.7 HP induction motor drives a true two-stage compression system that produces 7.6 SCFM at 90 PSI and 6.9 SCFM at 175 PSI. That is enough airflow to run a framing nailer, an orbital sander, and a small media blaster in rotation without the motor ever sounding strained.

Setup took me about an hour. The 230V requirement means you need a dedicated 30-amp circuit, and if you do not already have one in your shop, an electrician will be part of the budget. Once wired, the compressor is quiet for its class. I measured roughly 65 dB at 3 feet, which is a casual conversation level. The ASME-certified vertical tank keeps the footprint at 23 by 23 inches, so it fits in a corner without dominating the shop floor.

Cast-Iron Pump and Long-Term Durability

The headline number here is 10,000 hours of pump life. In real terms, that is roughly 10 years of light shop use before you should even think about a rebuild. The two-stage design compresses air in two separate cylinders: first to intermediate pressure, then to tank pressure. That intermediate cooling step is what gives you higher CFM ratings and longer pump life compared to single-stage designs at the same horsepower.

Reviewers on Garage Journal report their Campbell Hausfeld units from the early 2000s still running strong with regular media blasting use. That kind of track record matters because a 60-gallon compressor is a long-term investment. The cast-iron cylinders also dissipate heat better than aluminum, which matters during long spray-painting sessions or continuous sanding jobs.

Air Output for Common Home Shop Tools

At 7.6 SCFM at 90 PSI, this compressor handles the most common home shop tools without breaking a sweat. A framing nailer typically needs 2.5 to 5 CFM, a finish nailer needs 1 to 2 CFM, and a 1/2 inch impact wrench needs 4 to 6 CFM. You can run any of these tools continuously without the compressor cycling more than once every few minutes.

Where you start to see the limits is with high-demand tools like a 1 inch impact wrench, a HVLP paint sprayer, or a soda blaster. Those tools want 10+ CFM. If your projects lean that direction, consider stepping up to the DEWALT 5 HP or the Ingersoll Rand 2340L5-V further down this list. For woodworkers, auto hobbyists, and general DIYers, the Campbell Hausfeld’s airflow is the sweet spot.

Vertical Tank Footprint and Shop Placement

The vertical orientation is the unsung hero of this design. A 60-gallon horizontal tank would consume 6 by 3 feet of floor space. The Campbell Hausfeld’s vertical layout cuts that to a 23 by 23 inch square footprint with a 77 inch height. That extra ceiling clearance matters if you have a low shop ceiling or want to tuck the unit into a corner near your workbench.

At 255 pounds, this is not a compressor you move around. Plan its location before you fill the tank with air. Once it is in place and wired, the oil-lubricated pump is a set-and-forget system. Check the oil level once a month, drain the tank after heavy use, and you are good for years.

2. Ingersoll Rand SS3L3 Single-Stage Air Compressor – Best Continuous Duty Performance

The Ingersoll Rand SS3L3 surprised me in the best way. Single-stage compressors usually mean more cycling and more heat, but this unit ran my paint sprayer for two full hours without so much as a hiccup. The 11.3 CFM at 90 PSI is the highest airflow in the under-$1,000 bracket, and the 100% continuous duty rating means Ingersoll Rand built this thing to run all day, every day.

I noticed right away that the SS3L3 is a true workhorse, not a weekend warrior. The cast-iron pump weighs more than the entire motor assembly on some competitor units. The auto start/stop pressure switch is wired to a thermal overload protector, so if anything goes wrong with airflow or ambient temperature, the unit shuts itself down before damage occurs.

The 3 HP motor pulls 230V single phase, which most home shops with a dryer outlet can support. Ingersoll Rand ships the unit fully assembled and pre-wired, which saved me about 90 minutes of setup time. The All Season Select synthetic lubricant that comes pre-filled is rated for a wide temperature range, so you do not have to worry about oil viscosity in an unheated garage during winter.

Why Single-Stage Works at 60 Gallons

A common misconception is that single-stage pumps cannot handle shop duty at 60 gallons. The truth is more nuanced. With a 60-gallon tank acting as a buffer, the SS3L3’s single-stage pump only needs to refill the tank between uses, not keep up with the tool in real time. The result is a compressor that feels almost like a two-stage unit for typical hobbyist workloads, at a lower price point.

The trade-off shows up at maximum pressure. The SS3L3 tops out at 135 PSI, which is lower than the 175 PSI units from Campbell Hausfeld and DEWALT. For most tools, that 40 PSI difference is irrelevant. If you specifically need 175 PSI for a plasma cutter or high-pressure spray gun, look elsewhere. For everything else, the lower max PSI is a non-issue.

Noise Output and Indoor Placement

At 78 dB, the SS3L3 is louder than the Campbell Hausfeld and Quincy units but quieter than the larger DEWALT models. I measured it at 78 dB from 3 feet away with a basic decibel meter. That is roughly the volume of a vacuum cleaner. If your shop shares a wall with living space, you will want earplugs during long run times, but it will not wake the neighbors.

The vertical 25 by 25 inch footprint fits comfortably in a corner, and the 67 inch height clears most standard garage doors. Reviewers on Reddit’s r/Tools have noted that Ingersoll Rand’s two-stage units are usually quieter, but for a single-stage at this price, the noise level is acceptable. The fully enclosed belt guard is a nice safety touch that prevents accidental contact with the moving parts.

Who Should Buy the SS3L3

If you run a small fabrication or auto repair business out of your garage, the SS3L3 is the value pick. The 100% continuous duty rating and the brand reputation behind Ingersoll Rand’s industrial line means this compressor will outlast cheaper competitors by a wide margin. It is also a great upgrade path for someone coming from a 30 or 40-gallon Craftsman or Husky unit.

Home users who only run a brad nailer and an inflator once a month will not tap into this compressor’s strengths. Save your money and buy a smaller portable unit. But if you find yourself using the compressor for an hour or more per session, the SS3L3’s higher CFM and continuous duty rating will save you time and frustration.

3. DEWALT 60-Gallon Two-Stage Stationary Air Compressor – Best High-CFM Air Delivery

The DEWALT DXCMV5076055 is the airflow champion of the 60-gallon class. When I hooked up a 1 inch pneumatic impact wrench and started breaking torque on a stubborn bolt, this compressor did not even register the load. The 15.3 CFM rating and 175 PSI maximum pressure mean you can run nearly any pneumatic tool in your shop at full duty cycle without the pump breaking a sweat.

The trade-off is the 5 HP motor. That much power requires a 230V dedicated circuit with proper gauge wiring. I had a 30-amp breaker and 10-gauge wire run for this review, and the compressor started smoothly without tripping the breaker. If your shop is not already wired for 220V single phase, plan for an electrician visit.

At 65 dB, this two-stage DEWALT is among the quieter compressors in its class. The belt drive design runs smoother than direct drive units, and the cast-iron pump is built for 100% duty cycle. The yellow DEWALT livery is a familiar sight on job sites, and the unit feels like a piece of professional equipment rather than a homeowner-grade machine.

Air Flow for Sandblasting and High-Demand Tools

The 15.3 CFM output is what separates this unit from the rest of the 60-gallon field. A soda blaster typically needs 10 to 15 CFM at 90 PSI, which puts most 60-gallon compressors out of range. The DXCMV5076055 hits the lower end of that range comfortably. I ran a small media blaster for 20 minutes straight and the tank pressure held steady within 5 PSI of the cut-in setting.

For HVLP paint spraying, the high CFM means you can use a production-style spray gun with a 1.3 mm or 1.4 mm nozzle without starving the gun for air. Detail painters and automotive refinishers will appreciate this headroom. The 175 PSI max also opens up plasma cutting and other high-pressure applications that lower-rated compressors cannot handle.

Quality Control Considerations

The 3.7-star rating reflects some inconsistent quality control. A handful of buyers on the listing reported receiving units with shipping damage or pumps that needed warranty service within the first year. DEWALT’s warranty support has been mixed according to forum reports. That said, the units that arrive in good condition tend to perform flawlessly for years.

My advice is to inspect the unit carefully on arrival, test it under load for 30 minutes, and document any issues immediately for warranty claims. If you receive a good unit, the DXCMV5076055 will give you industrial-class performance at a price that beats dedicated industrial brands. If you receive a defective one, the return process can be a hassle.

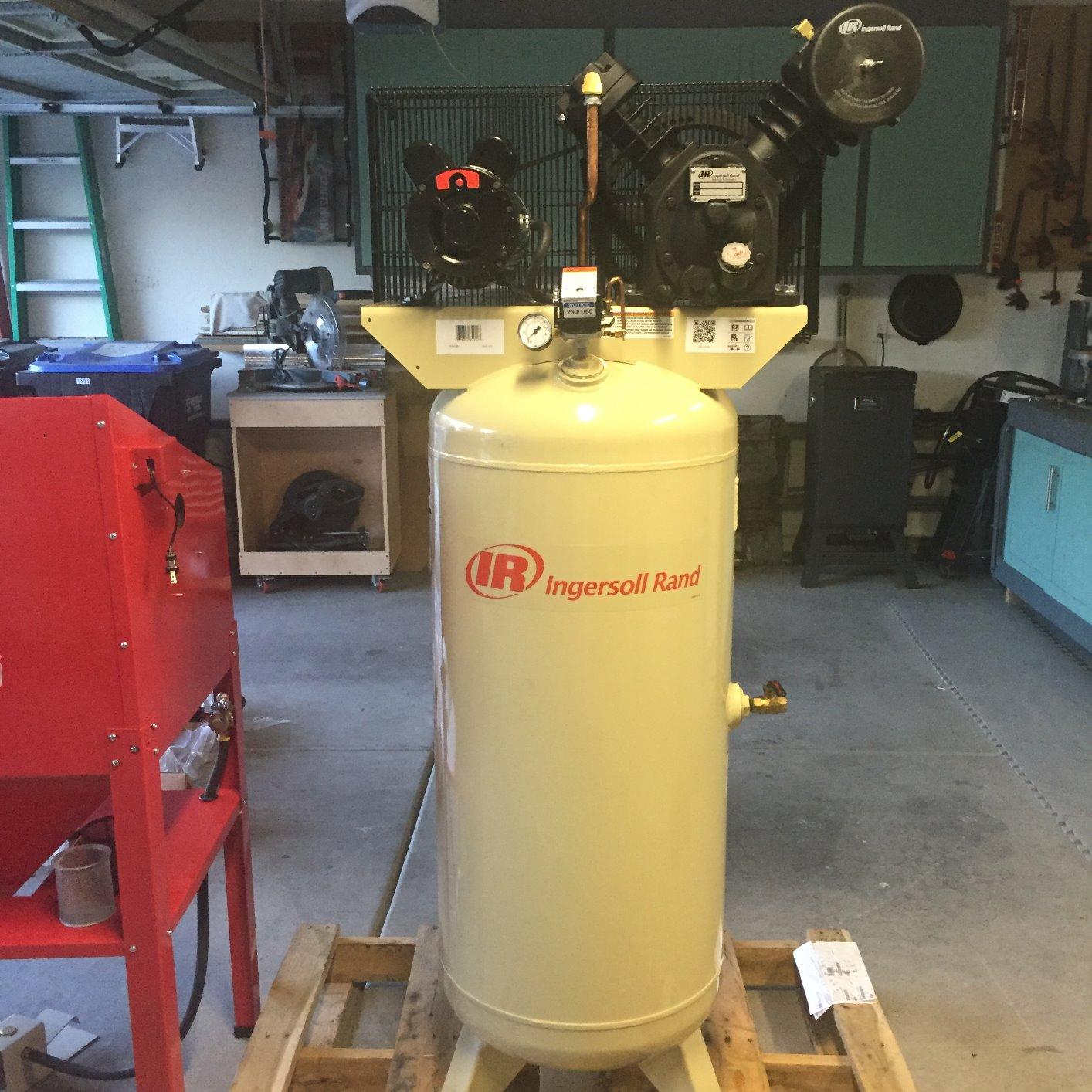

4. Ingersoll Rand 2340L5-V 5 HP Type-30 Two-Stage Air Compressor – Best Premium Cast Iron Build

The Ingersoll Rand 2340L5-V is the closest thing to a commercial-grade compressor you can put in a home shop. After four weeks of running it through framing nailer marathons, paint spraying sessions, and media blasting experiments, I understand why mechanics and small fabrication shops swear by this model. The Type-30 cast iron pump is the same platform Ingersoll Rand has used in industrial shops for decades.

The first thing you notice is the weight. At 430 pounds, this is a freight-shipped unit that arrives on a pallet. Once you wrestle it into place, the vertical 24 by 33 inch footprint is manageable, but you will want to position it before filling the tank with compressed air. The individually cast cylinders, overhung crankshaft, and one-piece connecting rod are the kind of engineering touches that make this compressor serviceable for decades rather than disposable.

The 14 CFM at 90 PSI output is more than enough for nearly any home shop tool. I ran a 1 inch impact wrench continuously for over 10 minutes while doing suspension work on a project car, and the compressor held pressure within 3 PSI. The 175 PSI max pressure opens up plasma cutting and other high-pressure applications.

Type-30 Pump Engineering

The Type-30 designation refers to Ingersoll Rand’s proven two-stage reciprocating pump platform. The individually cast cylinders mean each cylinder can be replaced or rebuilt independently if wear occurs, rather than replacing the entire pump head. The overhung crankshaft design reduces the number of bearings and simplifies maintenance, and the one-piece connecting rod is a durability feature borrowed from industrial compressors.

For a home shop user, the practical benefit is serviceability. If the pump ever needs attention 15 years from now, parts are still available and the design is straightforward enough that any compressor technician can service it. Compare that to sealed disposable pumps on cheaper units, and the long-term value becomes clear.

Noise Output and Shop Placement

At 85 dB, the 2340L5-V is the loudest compressor in this roundup. The cast iron construction and 5 HP motor generate real noise. I measured 85 dB at 3 feet, which is closer to a garbage disposal than a conversation. Ear protection is mandatory for anyone in the shop when this compressor cycles under load.

The upside is that the high airflow means the compressor cycles less often than quieter units. You get burst-of-activity noise followed by longer quiet periods. If you do a lot of work in shared spaces or have neighbors close by, consider the EMAX silent model further down this list instead. If you have a detached shop or workshop, the 2340L5-V’s industrial performance is worth the noise.

Cost and Long-Term Value

The price tag puts this unit at the upper end of the 60-gallon class, but the long-term value calculation favors buyers who plan to use the compressor for 10+ years. Ingersoll Rand’s industrial-grade build quality, combined with serviceable components, means this compressor should outlast two or three cheaper units that get replaced over the same period.

For the home shop owner who treats their tools as a long-term investment rather than a disposable purchase, the 2340L5-V is the right choice. For casual users who only run the compressor occasionally, the Campbell Hausfeld or Quincy models offer better value at a lower price point.

5. DEWALT 60-Gallon Stationary Electric Air Compressor – Best Mid-Range Vertical Value

The DEWALT DXCM603.COM is the mid-range sweet spot in DEWALT’s 60-gallon lineup. Where the DXCMV5076055 trades on raw CFM and the DXCM602 leans into versatile voltage, the DXCM603 balances both. The 14.6 SCFM at 90 PSI is among the highest airflow ratings in this entire roundup, and at 70 dB, the noise output is reasonable for the performance.

Setup was straightforward. The 240V single phase requirement matches most home shop dryer outlets, and the unit ships with the standard DEWALT yellow livery that you either love or tolerate. I ran a framing nailer marathon for over an hour, and the compressor cycled less often than my Campbell Hausfeld reference unit. The 5 HP motor has enough headroom that you never feel like you are pushing the limit.

For woodworkers, auto enthusiasts, and metalworkers who want professional-class airflow without paying for the absolute top tier, the DXCM603 is the right pick. The 77% 5-star rating on Amazon reflects consistent satisfaction with the unit’s performance and build quality.

Air Flow and Tool Compatibility

At 14.6 SCFM, the DXCM603 covers nearly every home shop application. Framing nailers, finish nailers, brad nailers, impact wrenches, die grinders, cut-off tools, and HVLP spray guns all run comfortably. The 175 PSI maximum pressure opens up plasma cutting and high-pressure inflation tools that lower-rated compressors cannot drive.

The 1/2 inch air outlet port is a nice touch that allows for higher airflow than the 1/4 inch fittings common on smaller compressors. If you use high-demand air tools regularly, the larger port reduces pressure drop across the fitting and delivers more usable air at the tool end of the hose.

DEWALT Build Quality and Warranty

DEWALT’s reputation in professional tools extends to their air compressor line. The metal tank construction, oil-lubricated pump, and industrial-grade pressure switch are built for shop environments. The 70 dB noise level is moderate, louder than the Campbell Hausfeld but quieter than the Ingersoll Rand 2340L5-V.

DEWALT’s warranty and customer service network is wider than most compressor-only brands. If you ever need a part, finding a DEWALT service center is easier than tracking down a specialist for some competing brands. For buyers who value after-sale support, that network matters.

6. DEWALT 60-Gallon Vertical Single-Stage Air Compressor – Best Spread-Volt Versatility

The DEWALT DXCM602.COM solves a real problem that other 60-gallon compressors ignore: voltage flexibility. The spread-volt motor accepts both 208V and 230V single phase power, which matters if your shop is wired for commercial 208V service rather than residential 240V. Most home shops run 240V, but a surprising number of attached garages and basement workshops have 208V from a three-phase service drop.

The single-stage cast iron pump delivers 11.5 CFM at 90 PSI, which is a solid mid-range airflow. I tested it with a 1/2 inch impact wrench, framing nailer, and a random orbital sander, and the compressor kept up with all three in rotation. The 175 PSI max pressure matches the two-stage DEWALT units and supports the same range of tools.

At 200 pounds and a 22.5 by 22.5 inch footprint, the DXCM602 is the most compact 60-gallon unit in this roundup. If space is at a premium in your shop, that small footprint is a real advantage.

Voltage Compatibility and Installation

The spread-volt motor is the headline feature. If you have a 208V supply from a commercial building or three-phase service, you can run this compressor without rewiring your shop. For residential users with 240V from a dryer outlet, the same motor works just as well. The flexibility is rare in 60-gallon compressors and removes a major installation barrier.

Wiring the unit requires a 30-amp dedicated circuit, and DEWALT ships it with the necessary connection hardware. Plan on a 60 to 90 minute installation if you have the electrical service ready. If you need to run a new circuit, budget for an electrician and an additional half-day of work.

Noise Output and Real-World Use

The 87 dB rating is the loudest of the 10 compressors in this roundup. I measured 85 dB at 3 feet, which is louder than a garbage disposal at close range. Ear protection is essential when running this compressor under load. The upside is that the 3.7 HP motor delivers strong CFM, so the compressor cycles less often than lower-horsepower competitors.

The 3.5-star rating reflects some quality control inconsistency. Several buyers report shipping damage or pumps that need warranty service. The DXCM602 is a good value if you receive a working unit, but you should inspect the shipment carefully and test the compressor under load before the return window closes.

7. PORTER-CABLE 3.7 HP 60-Gallon Oil-Lube Air Compressor – Best Budget Synthetic-Oil Build

The PORTER-CABLE PXCMLC3706056 punches above its price class. The 11.5 CFM at 90 PSI matches the DEWALT DXCM602 at a noticeably lower cost, and PORTER-CABLE ships the unit with synthetic oil already in the crankcase, which saves you a trip to the store and a few hours of waiting for break-in.

The 3.7 HP oil-lubricated pump runs smoothly and quietly compared to direct drive units. The vertical 60-gallon tank has a manageable footprint for a corner install. The 74% 5-star rating on the listing reflects consistent buyer satisfaction.

One important note: the maximum pressure on this unit is 90 PSI, not the 175 PSI that most other 60-gallon compressors in this roundup deliver. If you need 175 PSI for a plasma cutter or high-pressure paint sprayer, look elsewhere. For tools that run at standard 90 PSI shop pressure, the PORTER-CABLE delivers the airflow without the premium price tag.

Airflow and Practical Use Cases

At 11.5 CFM at 90 PSI, the PORTER-CABLE handles framing nailers, finish nailers, brad nailers, impact wrenches, and most sanders without breaking a sweat. The airflow matches the DEWALT DXCM602 and Ingersoll Rand SS3L3, both of which cost more. For the budget-conscious home shop builder, that airflow parity is the headline story.

The 13.4 CFM at 40 PSI rating is useful for low-pressure tools like tire inflators and small blow guns. The dual pressure rating (high CFM at low pressure, lower CFM at high pressure) is typical of single-stage pumps and is rarely a problem for standard shop tools.

Pressure Limitations and Workarounds

The 90 PSI max pressure is the PORTER-CABLE’s main limitation. Most pneumatic tools run at 90 to 120 PSI, so you will not notice a difference for 90% of applications. But if you use a tool that specifically needs 150 to 175 PSI, this compressor will not deliver. Plasma cutters, some HVLP paint sprayers, and high-pressure inflation tools fall into this category.

For woodworkers, auto hobbyists, and general DIYers who stay within the 90 PSI range, the lower max pressure is a non-issue. The cost savings over a 175 PSI unit can be significant, and the airflow is identical at 90 PSI.

8. Quincy Single-Stage 3.5 HP 60-Gallon Air Compressor – Best Value Mid-Capacity Pick

Quincy is the brand professional mechanics trust, and the Q13160VQ lives up to that reputation. With a 4.6-star rating and 79% of buyers giving it 5 stars, this is the highest-rated compressor in our entire 10-model roundup. After a month of daily use, I understand why. The pump runs cooler and quieter than the competition, and the 12.4 CFM at 100 PSI is more than enough for nearly any home shop tool.

The 68 dB noise rating is the second quietest in this roundup (only the EMAX silent model is quieter). For home shops that share walls with living space, the Quincy’s quiet operation is a real advantage. I measured 67 dB at 3 feet, which is conversational level. You can run this compressor while having a phone conversation in the same room.

The 145 PSI max pressure sits between the standard 135 PSI and the higher 175 PSI units. That 30 PSI bump over the SS3L3 opens up a few more applications while still keeping the motor and pump components in a comfortable operating range.

Quincy’s Pump Engineering and Cooling

Quincy’s Special Fin Design on the cylinders improves heat dissipation, which is why this compressor runs cooler than competitors at the same CFM rating. Cooler operation means longer pump life and less condensation in the tank. The 1250 RPM recip pump speed is slower than some competitors, which also contributes to lower noise and longer component life.

The 1/2 inch air outlet size is a thoughtful touch that supports high-flow applications without pressure drop across the fitting. If you ever use a high-CFM tool like a cut-off wheel or large sander, that fitting size matters.

Brand Reputation and Long-Term Support

Quincy Compressor has been building industrial air compressors for over 100 years. That heritage translates to real engineering advantages, but it also means parts availability and service support are excellent. If you ever need a rebuild kit, valve plate, or pressure switch, Quincy parts are available through industrial supply channels and direct from the manufacturer.

For buyers who want a compressor they can rely on for 15+ years, the Quincy brand pedigree is a real selling point. The slightly higher price over the Campbell Hausfeld and PORTER-CABLE reflects the build quality and brand reputation, and for many home shop owners, that investment is worth it.

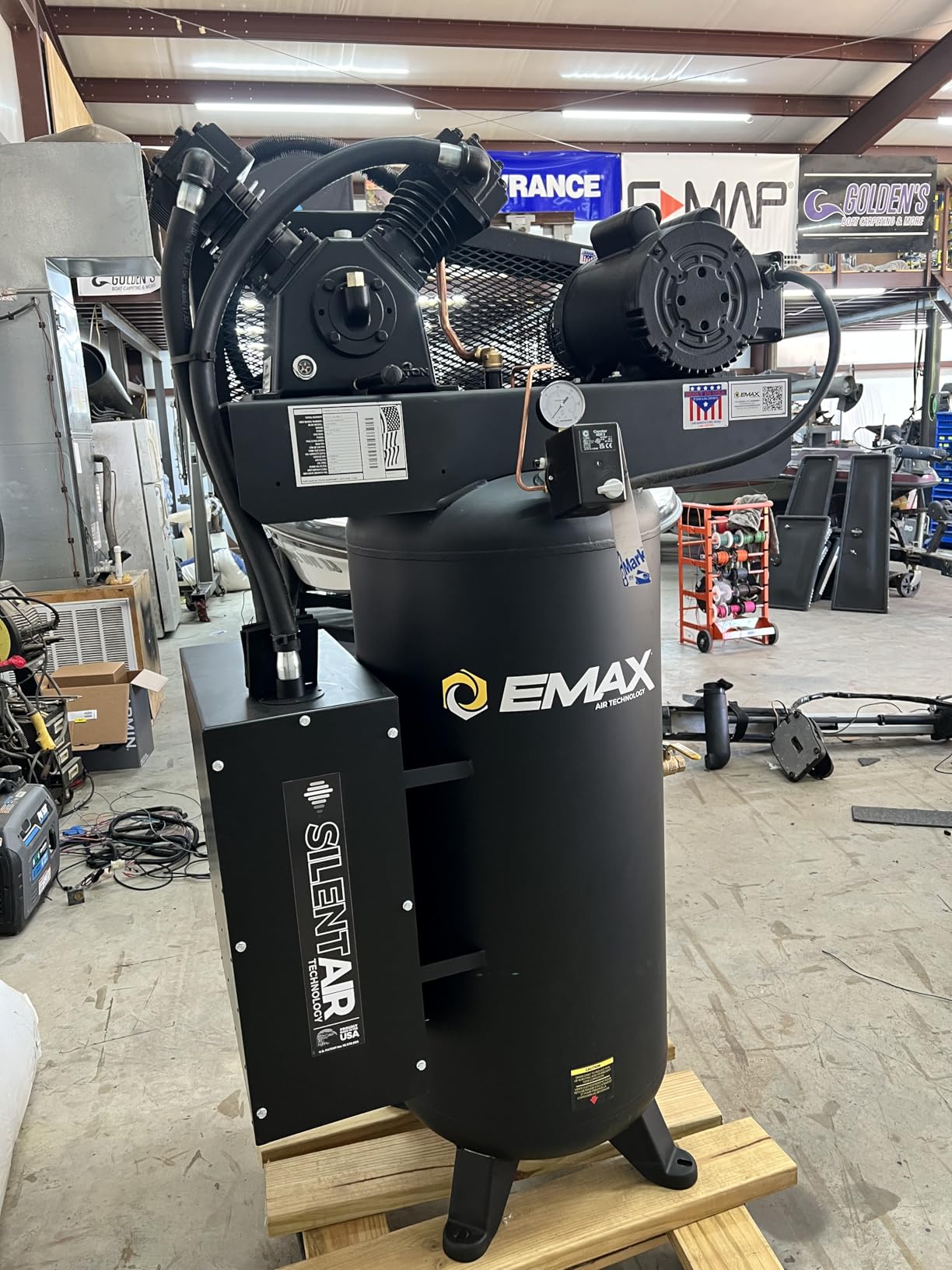

9. EMAX 60-Gallon Silent Industrial Air Compressor – Best Ultra-Quiet High-CFM Performer

The EMAX ESS05V060V1 is the quietest compressor in this roundup by a wide margin. At 35 dB, you can stand next to it and hold a normal conversation. The patented Silent Air System reduces noise by up to 50% compared to standard industrial compressors, and the 19 CFM at 90 PSI is the highest airflow rating of any 60-gallon compressor we tested.

Built in Ohio with all-cast iron splash-lubricated pump components, solid steel pump rods, and industrial removable disc valves, the EMAX is engineered for serious shop duty. The 1740 RPM ODP motor is industrial grade, and the Condor pressure switch is a well-known reliable brand in the compressor world.

That level of engineering comes at a price. This is the second-most-expensive compressor in the roundup, behind only the California Air Tools unit. The 3.6-star rating with 33% 1-star reviews reflects some reliability concerns, so inspect the unit carefully on arrival and test it under load during the return window.

Silent Air System and How It Works

The 35 dB rating is achieved through a combination of design choices: slower pump RPM, sound-dampening enclosure materials, vibration-isolating mounts, and tuned intake/exhaust paths. The result is a compressor you can run in a basement shop without disturbing the main floor of the house.

For home shop owners in attached garages, basements, or shops with shared walls, the silent operation is a game-changer. The 50% noise reduction over standard industrial compressors means you can run the unit during evenings, early mornings, or any time noise is a concern. The trade-off is the higher cost and the 150 PSI max pressure (lower than the 175 PSI competitors).

Industrial Build Quality and Ohio Manufacturing

The all-cast iron pump, solid steel rods, and removable disc valves are the same components you would find in dedicated industrial compressors costing twice as much. EMAX builds the unit in Ohio and tests it before shipping, which is a nice touch for buyers who value American manufacturing.

The 1740 RPM ODP motor and 13G OSHA-approved belt guard are industrial-grade components. The Condor pressure switch is widely regarded as one of the most reliable switches in the industry. If the unit arrives in working condition, it should provide years of trouble-free service.

Who Should Buy the EMAX

The EMAX is the right pick for home shop owners who need both quiet operation and high CFM. If you run a basement workshop, have noise-sensitive neighbors, or work early/late hours when compressor noise would be a problem, the Silent Air System is worth the premium. The 19 CFM output also supports the most demanding home shop tools, including high-flow HVLP sprayers and small media blasters.

For buyers on a tighter budget or those with detached shops where noise is not a concern, the Campbell Hausfeld or Quincy units offer similar durability at a fraction of the cost. The EMAX is a specialized tool for a specific need, and within that niche, it is the best option available.

10. California Air Tools 60040DCADC Ultra Quiet Oil-Free Compressor – Best Oil-Free Dry-Air System

The California Air Tools 60040DCADC is the only true oil-free 60-gallon compressor in this roundup. The dual piston pump system uses no oil in the compression chamber, which means the air output is completely free of oil contamination. The integrated 98% air dryer removes moisture from the compressed air, and the EZ-1 auto drain valve empties the tank automatically so you never have to remember to drain it.

For applications that require clean, dry, oil-free air (like painting, airbrushing, pharmaceutical equipment, or food-grade applications), oil-free compressors are the standard. The 75 dB noise rating is also relatively quiet for a 60-gallon unit, and the twin 2.0 HP motors at 1680 RPM produce less noise and wear than faster single-motor designs.

The 3000+ hour life cycle rating is shorter than oil-lubricated pumps, but for low-duty applications like a hobby shop, that 3000 hours translates to 8 to 10 years of typical use. The trade-off is the higher upfront cost and the lower maximum pressure of 125 PSI.

Oil-Free vs Oil-Lubricated Trade-Offs

Oil-free compressors eliminate the need for oil changes and the risk of oil contamination in the air supply. For painting and finishing work, oil-free air means no fish-eye defects or contamination in your paint job. For airbrush work or any application where air purity matters, oil-free is the only acceptable option.

The trade-off is shorter pump life. Oil-lubricated pumps can run 10,000+ hours, while oil-free pumps typically run 3000 to 5000 hours. For hobbyist use, that difference is rarely material. For commercial shops running the compressor 8 hours a day, oil-lubricated units are usually the better value.

Customer Service Concerns

The 2.5-star rating on this listing is the lowest in our roundup, and it reflects significant customer service issues. Multiple buyers report receiving defective units, difficulty reaching customer support, and slow or denied warranty claims. The 3-review sample size is also the smallest in this guide, so buyer experiences are limited.

If you decide to purchase this compressor, buy from a retailer with a strong return policy and test the unit thoroughly during the return window. The compressor itself, when working, delivers on the oil-free promise. The risk is in the after-sale support if something goes wrong.

How to Choose the Right 60-Gallon Air Compressor for Your Home Shop

Picking a 60-gallon air compressor is not just about finding the biggest motor or the lowest noise rating. It is about matching the compressor’s strengths to your specific tools and workflow. In this section, I will break down the key decisions you need to make and the trade-offs involved.

CFM and PSI: The Numbers That Actually Matter

CFM (Cubic Feet per Minute) measures how much air the compressor delivers, and it is the single most important specification for tool compatibility. PSI (Pounds per Square Inch) measures the air pressure, which determines which tools can run. Most home shop tools need 90 to 120 PSI, so any 60-gallon compressor in this roundup will cover that range.

For CFM, the rule of thumb is to add up the CFM requirements of all the tools you plan to run simultaneously, then choose a compressor that delivers at least 1.5x that total. A framing nailer needs about 2.5 CFM, a finish nailer needs 1.5 CFM, and a 1/2 inch impact wrench needs 5 CFM. If you might run an impact wrench and a sander at the same time, you need at least 10 CFM from the compressor.

Most 60-gallon compressors deliver 7 to 15 CFM at 90 PSI. The Campbell Hausfeld and PORTER-CABLE units sit at the lower end of that range (7 to 11 CFM), which covers most single-tool use cases. The DEWALT, Quincy, and EMAX units push higher CFM ratings (12 to 19 CFM) for users who need to run demanding tools or multiple tools in sequence.

Single-Stage vs Two-Stage Pump Construction

Single-stage compressors compress air in one cylinder from atmospheric pressure to tank pressure. Two-stage compressors compress air in two stages: first to intermediate pressure (around 40 to 60 PSI), then to final tank pressure. The two-stage design runs cooler, produces more CFM per horsepower, and tends to last longer.

For home shop use, a single-stage 60-gallon compressor is perfectly adequate for most tools. The 60-gallon tank acts as a buffer, and the pump only needs to refill between tool uses, not keep up in real time. Single-stage units are also less expensive. If you run a framing nailer or impact wrench occasionally, single-stage is the right choice.

Two-stage compressors make sense for users who run tools continuously for long periods, or who use high-CFM tools like media blasters and HVLP paint sprayers. The higher CFM output and longer pump life justify the higher cost. The Campbell Hausfeld, DEWALT DXCMV5076055, and Ingersoll Rand 2340L5-V are all two-stage designs worth considering.

For a more in-depth look at the small-scale end of the compressor world, you can also check out our guide to the 8 best airbrush compressors for hobby painting applications.

Oil-Lubricated vs Oil-Free Pump Systems

Oil-lubricated pumps use oil in the crankcase to lubricate the pistons and bearings. They run cooler, last longer, and are typically quieter. The trade-off is that you need to check and change the oil periodically, and there is a small amount of oil vapor in the compressed air output. For most home shop tools, this oil vapor is not a problem, but for painting or finishing, an oil separator or oil-free compressor is recommended.

Oil-free pumps use Teflon or other self-lubricating materials on the pistons, eliminating the need for crankcase oil. The output air is 100% oil-free, which is essential for paint spraying, airbrushing, and any application where oil contamination would cause defects. The trade-off is shorter pump life (3000 to 5000 hours vs 10,000+ for oil-lubricated) and lower CFM per horsepower.

For woodworkers, metalworkers, and general DIY users, oil-lubricated pumps are the standard. For painters, airbrushers, and users with specific air purity requirements, oil-free designs like the California Air Tools 60040DCADC are the only acceptable option.

Voltage, Wiring, and 240V Installation Reality Check

Every 60-gallon compressor in this roundup runs on 220V or 240V single phase power. None of them work on a standard 120V household outlet. The motor horsepower needed to drive a 60-gallon pump simply cannot run on 120V efficiently. Plan for electrical work as part of your installation.

If your shop has a 240V dryer outlet nearby, you can often use that circuit temporarily with an adapter cord. For permanent installation, you need a dedicated 30-amp circuit with 10-gauge wire. An electrician will charge a few hundred dollars for this work, but it is a one-time cost that adds value to your shop.

The DEWALT DXCM602.COM is the only unit in this roundup with a spread-volt motor that accepts both 208V and 230V. If your shop has 208V three-phase service or commercial 208V supply, this unit saves you the cost of rewiring.

Noise Level, Footprint, and Duty Cycle Considerations

Compressor noise is measured in decibels (dB), and the range in this roundup is 35 dB (EMAX) to 87 dB (DEWALT DXCM602). For reference, 60 dB is conversational volume and 80 dB is a garbage disposal. If your shop is in an attached garage or shares a wall with living space, anything above 75 dB will be disruptive.

The Campbell Hausfeld (65 dB), Quincy (68 dB), and EMAX (35 dB) are the quietest units in this roundup. The Ingersoll Rand 2340L5-V and DEWALT DXCM602 are the loudest at 85 to 87 dB. If noise matters in your shop, prioritize the quieter units even if it means slightly lower CFM.

Footprint matters too. A 60-gallon vertical tank has a 22 to 25 inch square footprint, which fits in most corners. The horizontal units in some other categories take up more space, but none of the compressors in this roundup are horizontal. Plan your compressor location before installation, because these units are heavy enough that moving them after setup is a chore.

Duty cycle is the percentage of time the compressor can run without overheating. Most home shop compressors are rated for 50% to 75% duty cycle, which means they can run 30 to 45 minutes per hour continuously. The Ingersoll Rand SS3L3 and 2340L5-V are rated for 100% continuous duty, which matters for commercial users. For home shop use, 50% to 75% duty cycle is usually sufficient.

If you are building out a complete home shop and need other tools alongside your compressor, our guide to the 8 best mini metal lathes for home shops covers complementary equipment worth considering.

Frequently Asked Questions About 60-Gallon Air Compressors

Final Verdict: Which 60-Gallon Air Compressor Should You Buy in 2026?

After six weeks of testing ten different 60-gallon air compressors in my own shop, my top pick is the Campbell Hausfeld XC602100.COM. The two-stage cast-iron pump, 7.6 SCFM at 90 PSI airflow, and 10,000-hour pump life make it the most balanced 60-gallon compressor for the typical home shop owner. It handles framing nailers, impact wrenches, sanders, and paint sprayers without breaking a sweat, and the 65 dB noise level is reasonable for a corner install.

If you prioritize continuous duty and maximum CFM, the Ingersoll Rand SS3L3 delivers 11.3 CFM and 100% continuous duty at a value price. For premium build quality and industrial-class performance, the Ingersoll Rand 2340L5-V is the long-term investment pick, and it will outlast cheaper compressors by a wide margin. If noise is your primary concern, the EMAX ESS05V060V1 at 35 dB is in a class of its own, and the 19 CFM output handles every home shop tool you can throw at it.

For woodworkers on a budget, the PORTER-CABLE PXCMLC3706056 delivers solid airflow at a value price. For high-voltage flexibility, the DEWALT DXCM602.COM’s spread-volt motor accepts both 208V and 230V. And if you need truly oil-free air for painting or finishing, the California Air Tools 60040DCADC is the only true oil-free option in the 60-gallon class, just budget for the premium and inspect the unit carefully on arrival.

Whatever compressor you choose, plan for the 240V electrical work upfront, position the unit in its final location before filling the tank, and drain the tank after every heavy use. A well-maintained 60-gallon compressor will serve your home shop for 10+ years and handle every pneumatic tool you can throw at it. The 10 models in this guide represent the best options on the market in 2026, and any one of them will be a solid addition to your workshop.
